Control Module HVAC: Locations

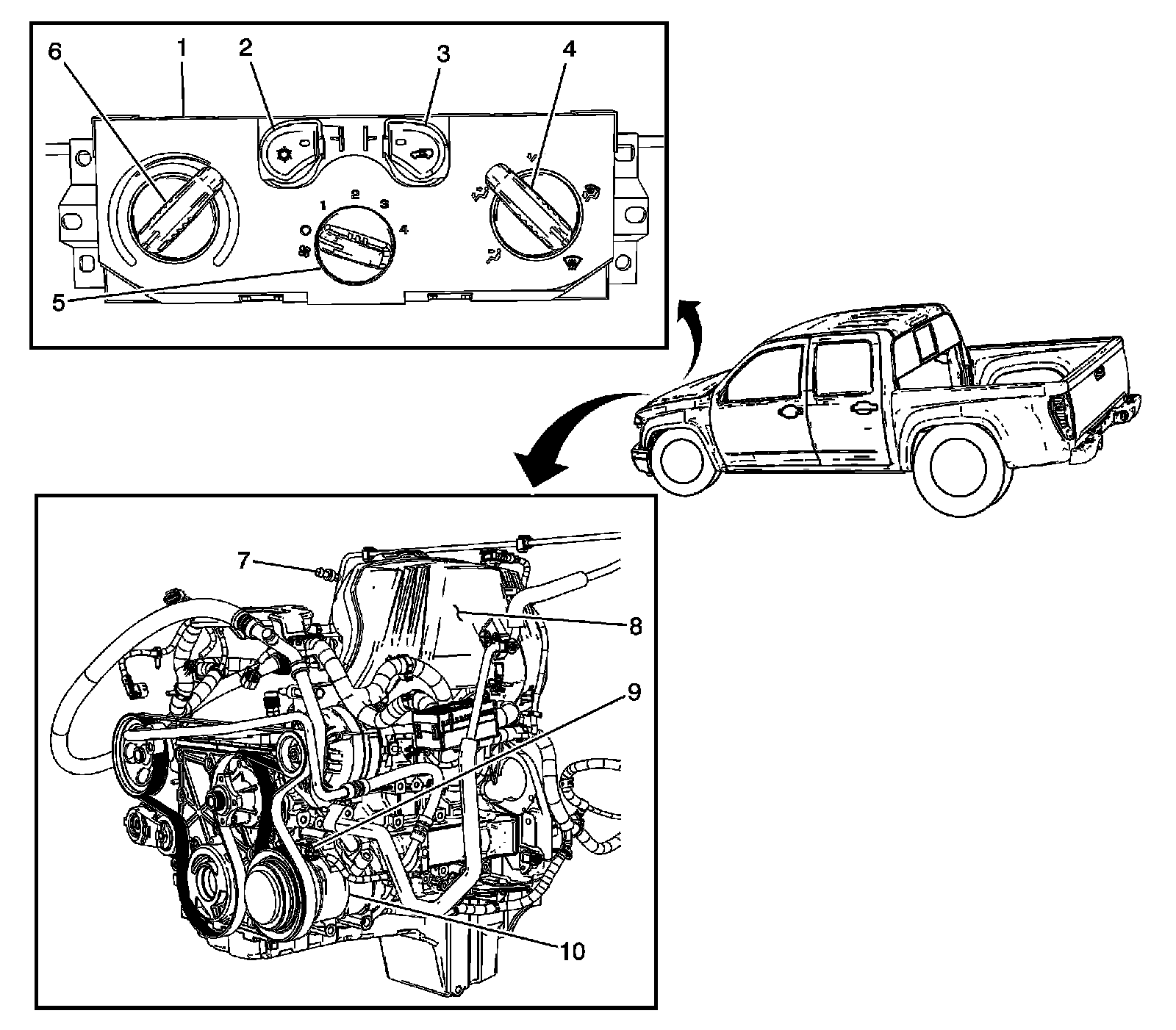

HVAC Component Views

HVAC Components




1 - HVAC Control Module
2 - A/C Request
3 - Recirculation Mode
4 - Mode Control
5 - Blower Speed Control
6 - Temperature Control
7 - A/C Refrigerant Pressure Sensor
8 - Engine (3.5L Shown)
9 - A/C Compressor Clutch
10 - A/C Compressor
