Control Module HVAC: Diagrams



HVAC Connector End Views

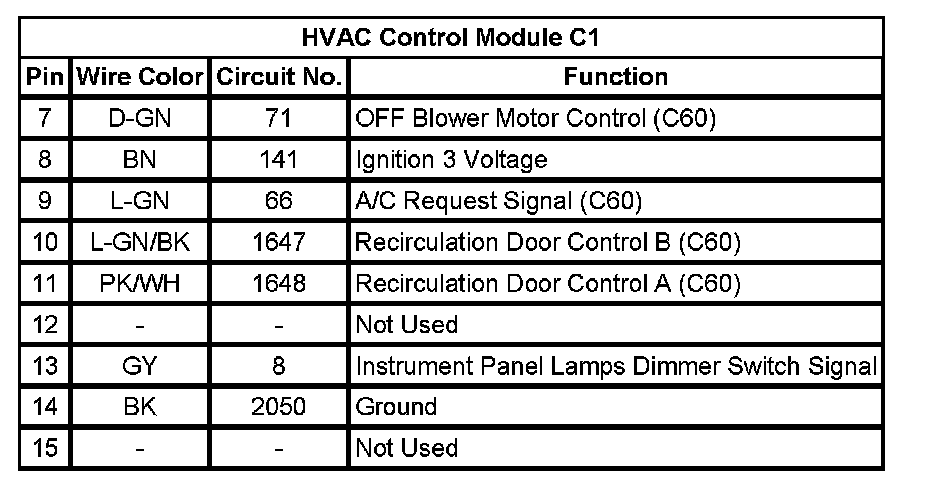

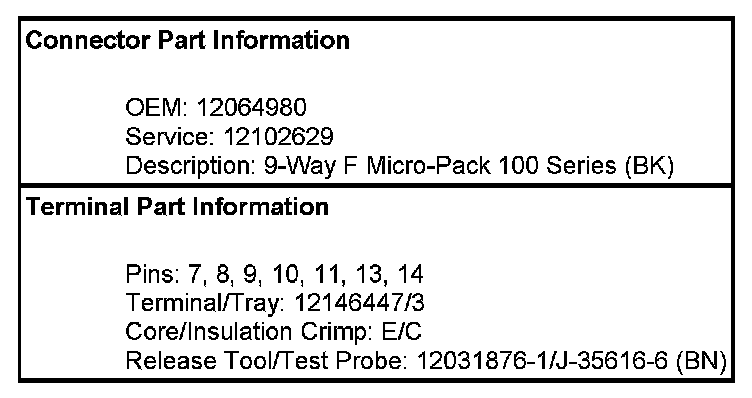

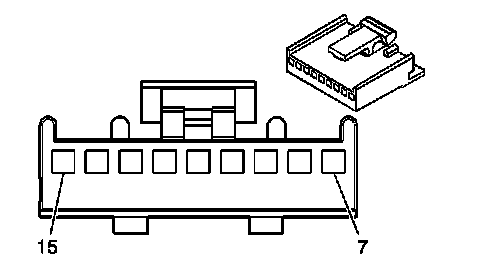

HVAC Control Module C1

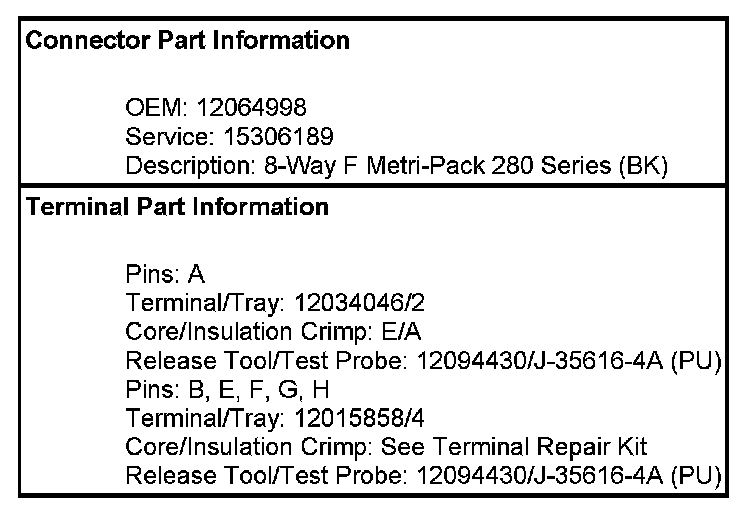

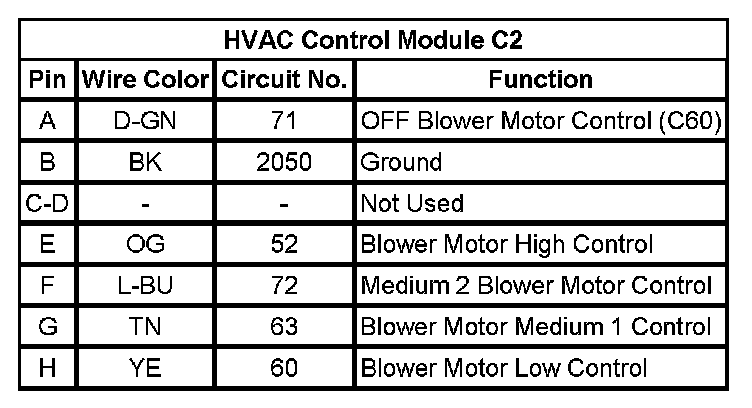

HVAC Control Module C2
