Central Control Module



Entertainment/Communication Connector End Views

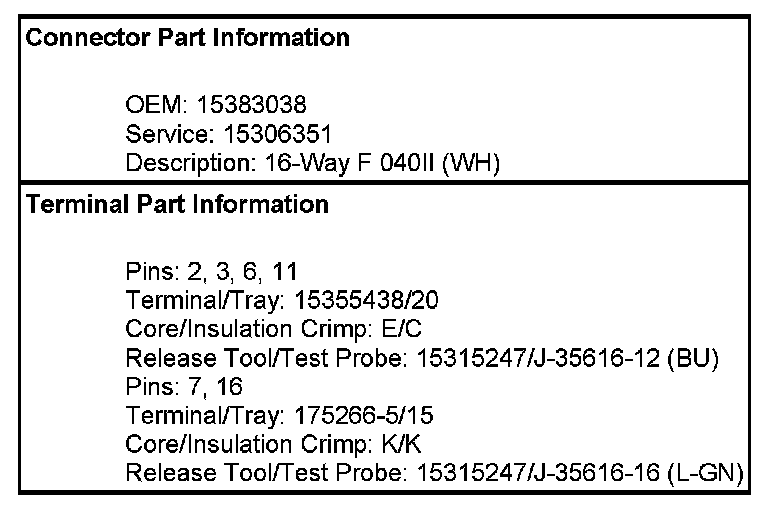

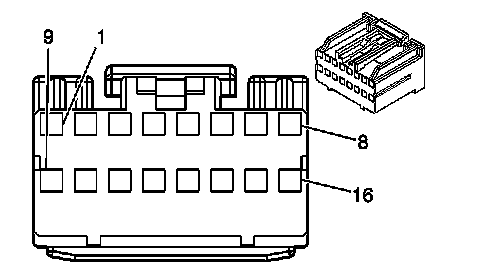

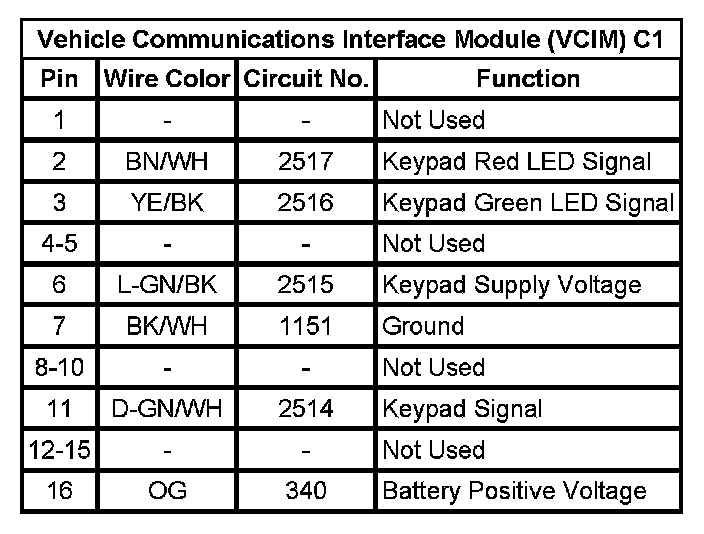

Vehicle Communications Interface Module (VCIM) C1

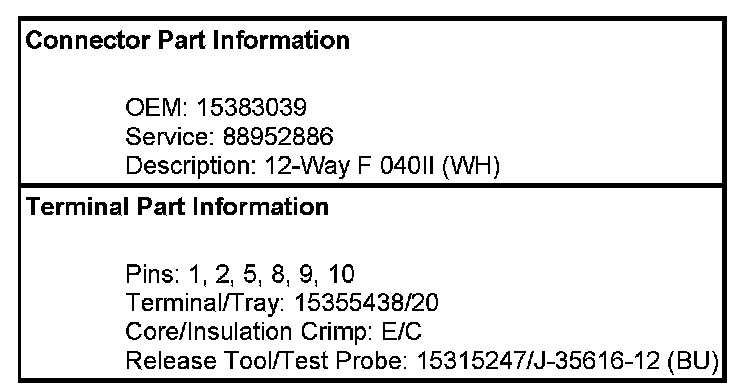

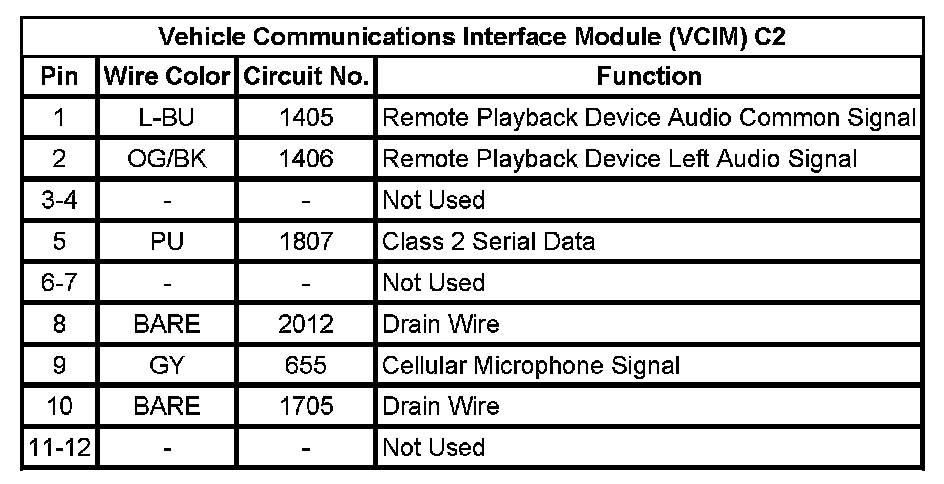

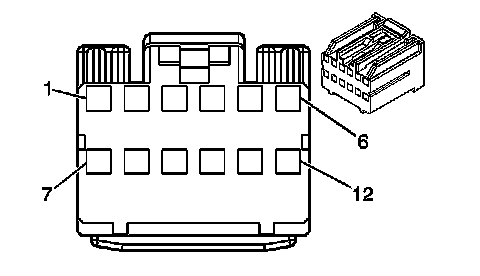

Vehicle Communications Interface Module (VCIM) C2
