Brake Fluid Level Sensor/Switch
Brake Fluid Level Sensor/Switch

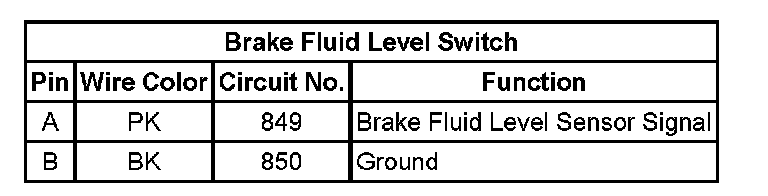

Brake Fluid Level Switch
Brake Fluid Switch Level:
