Air Flow Meter/Sensor

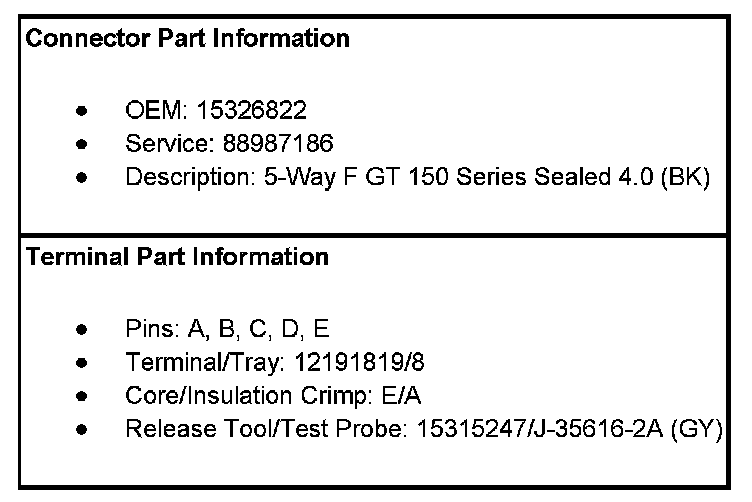

Engine Controls Connector End Views

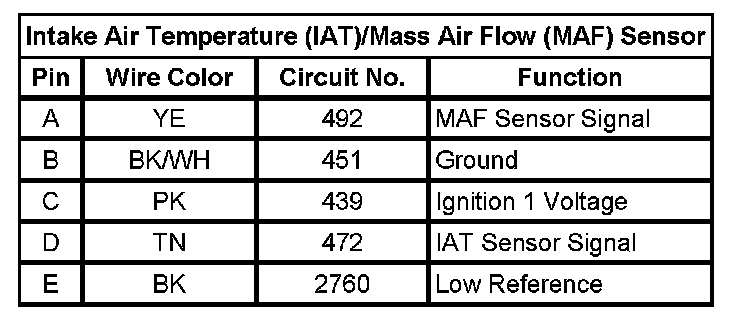

Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor
