Home >> Chevrolet >> 2007 >> Colorado 2WD L4-2.9L >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Body Control Module >> Diagrams >> Body Control Module (BCM) C2

Body Control Module (BCM) C2

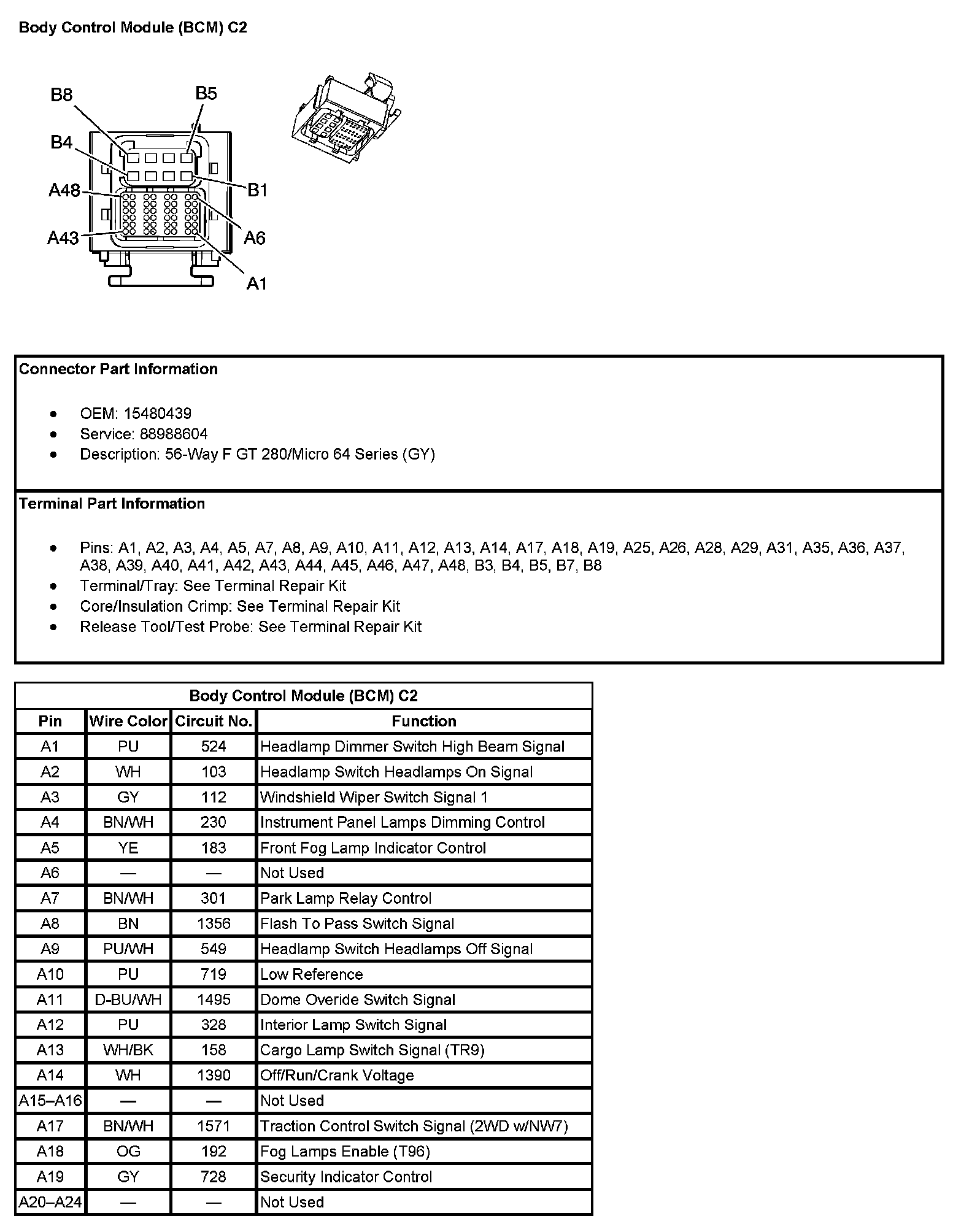

Body Control Module (BCM) C2 (Part 1):

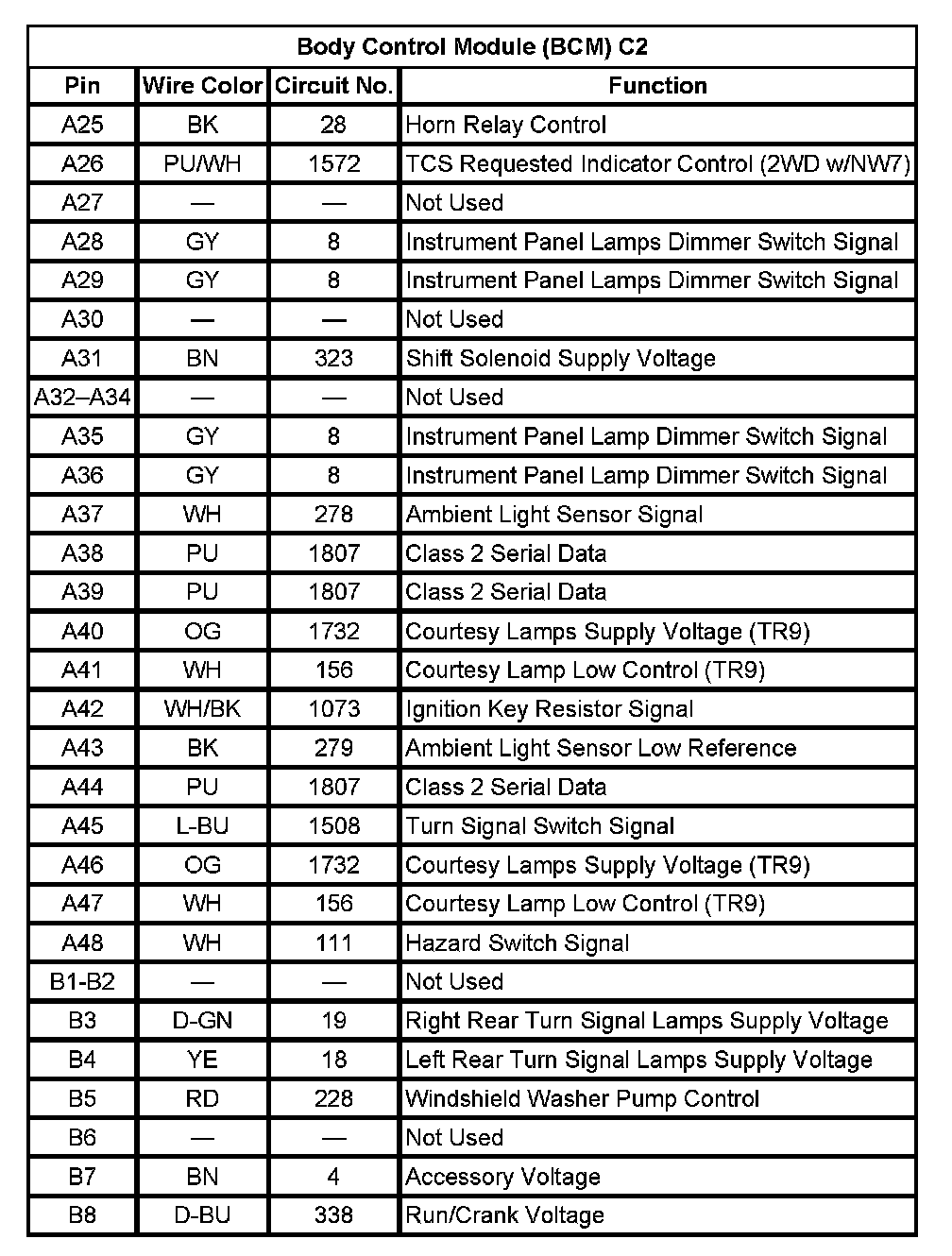

Body Control Module (BCM) C2 (Part 2):
