Home >> Chevrolet >> 2007 >> Cobalt L4-2.2L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Body Control Module (BCM)

Body Control Module (BCM)

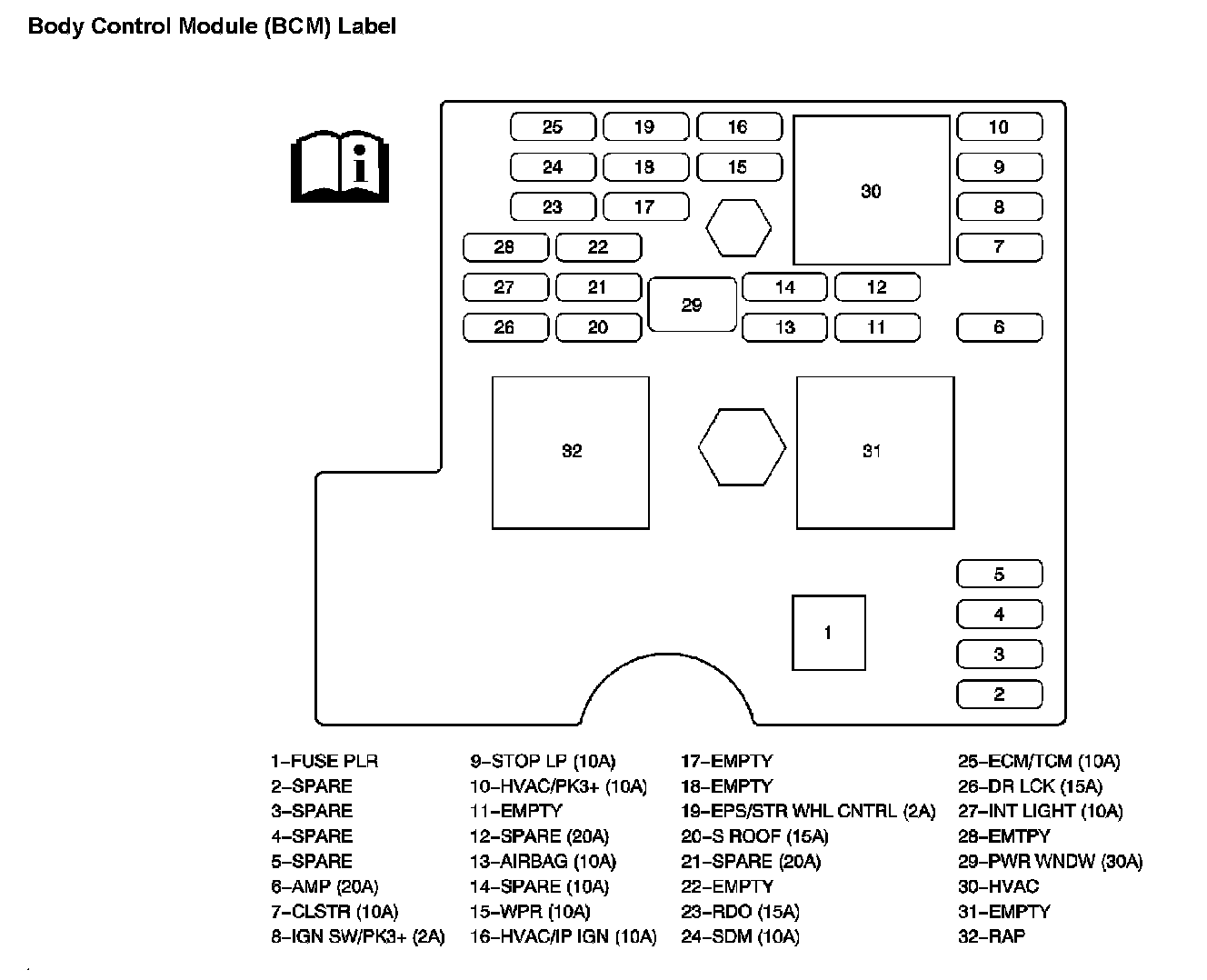

Body Control Module (BCM) Label:

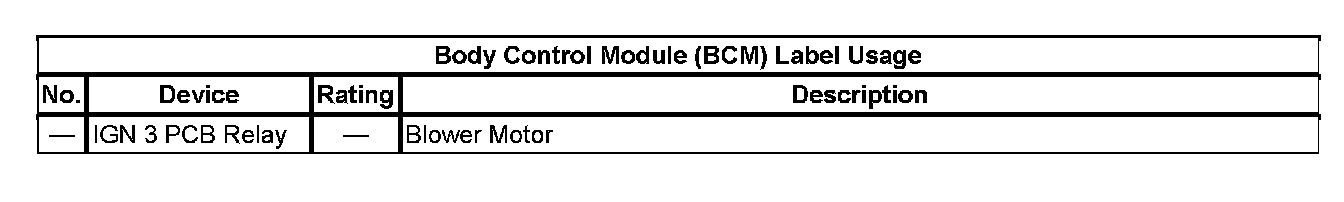

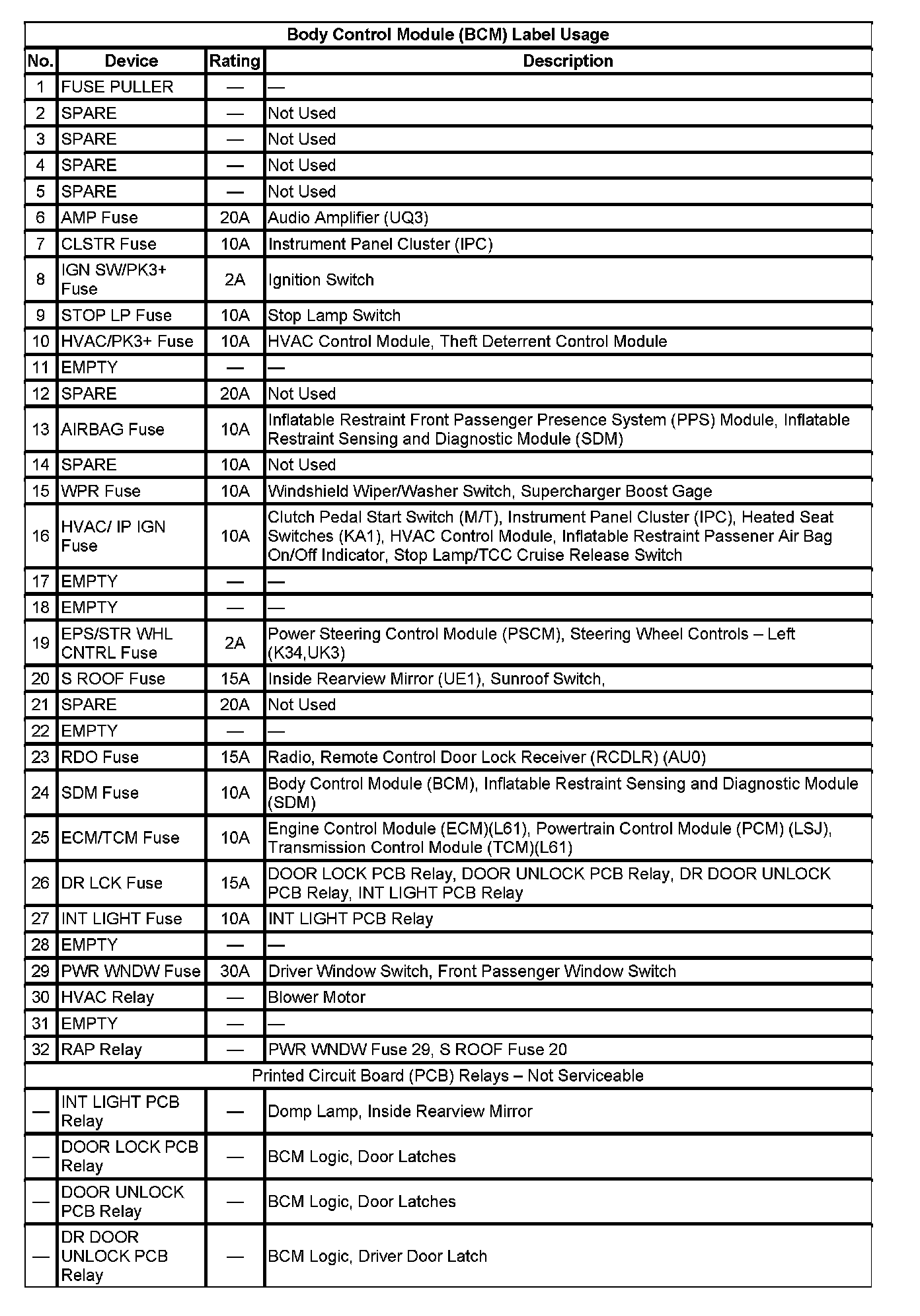

Body Control Module (BCM) Label Usage (Part 1):




Body Control Module (BCM) Label Usage (Part 2):
