Ignition Control Module



Engine Controls Connector End Views

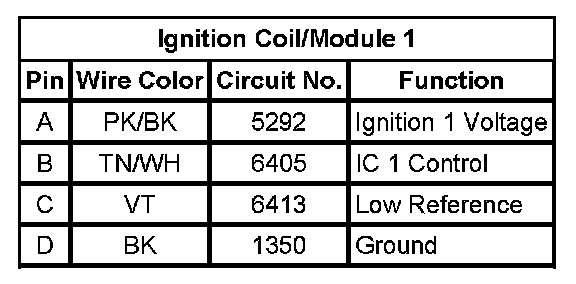

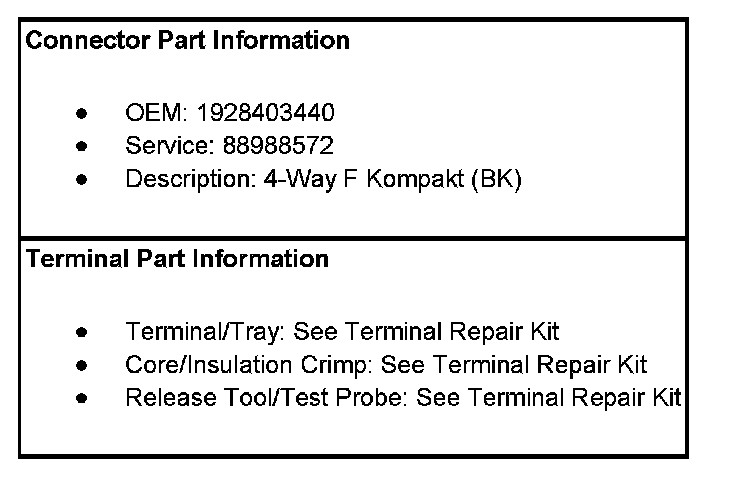

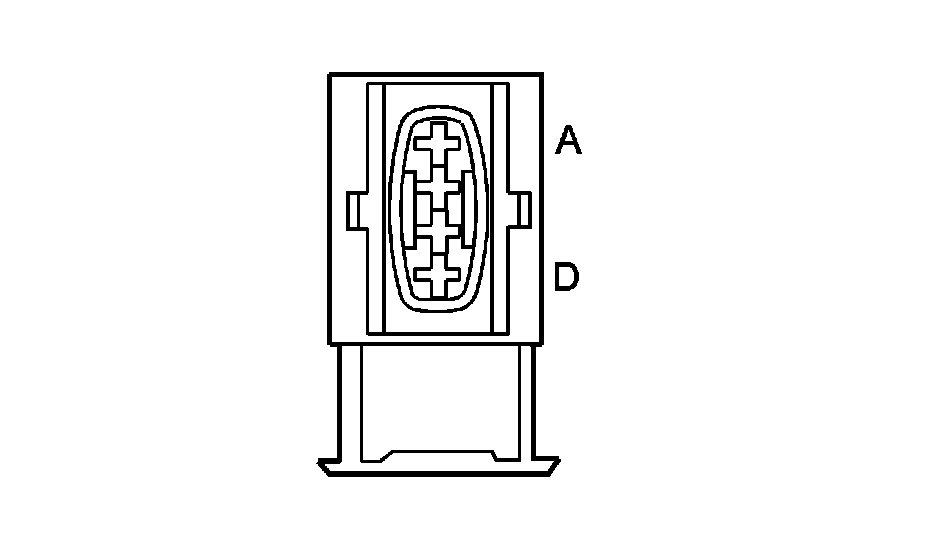

Ignition Coil/Module 1

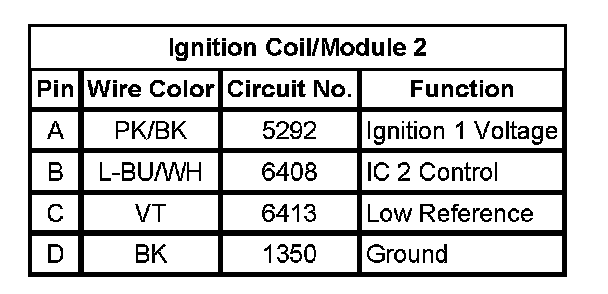

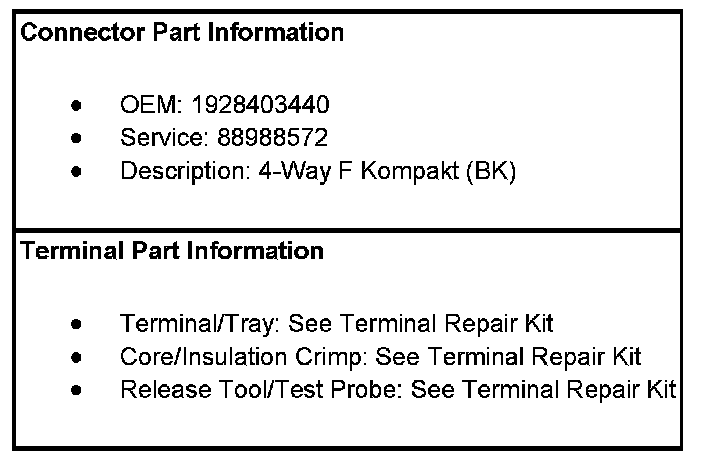

Ignition Coil/Module 2

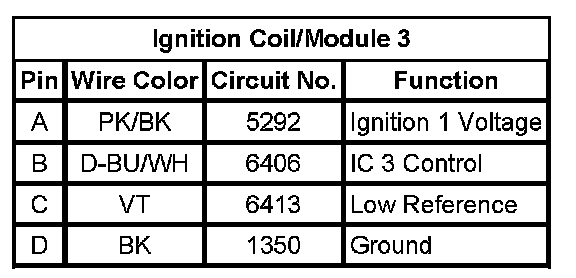

Ignition Coil/Module 3

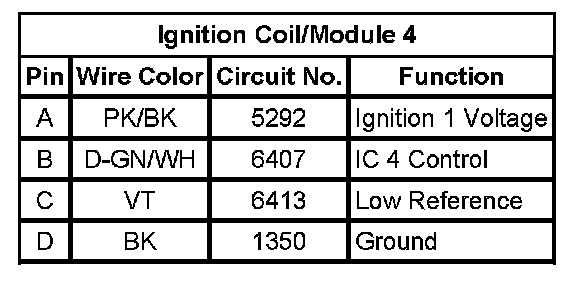

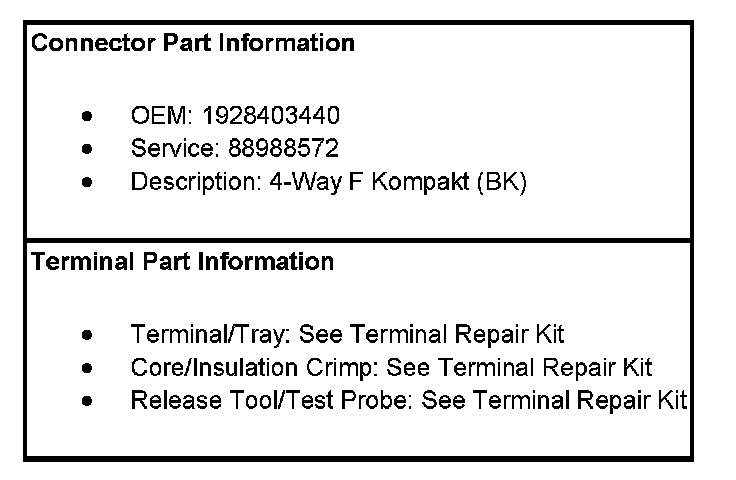

Ignition Coil/Module 4
