Home >> Chevrolet >> 2007 >> Aveo L4-1.6L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Intake Manifold

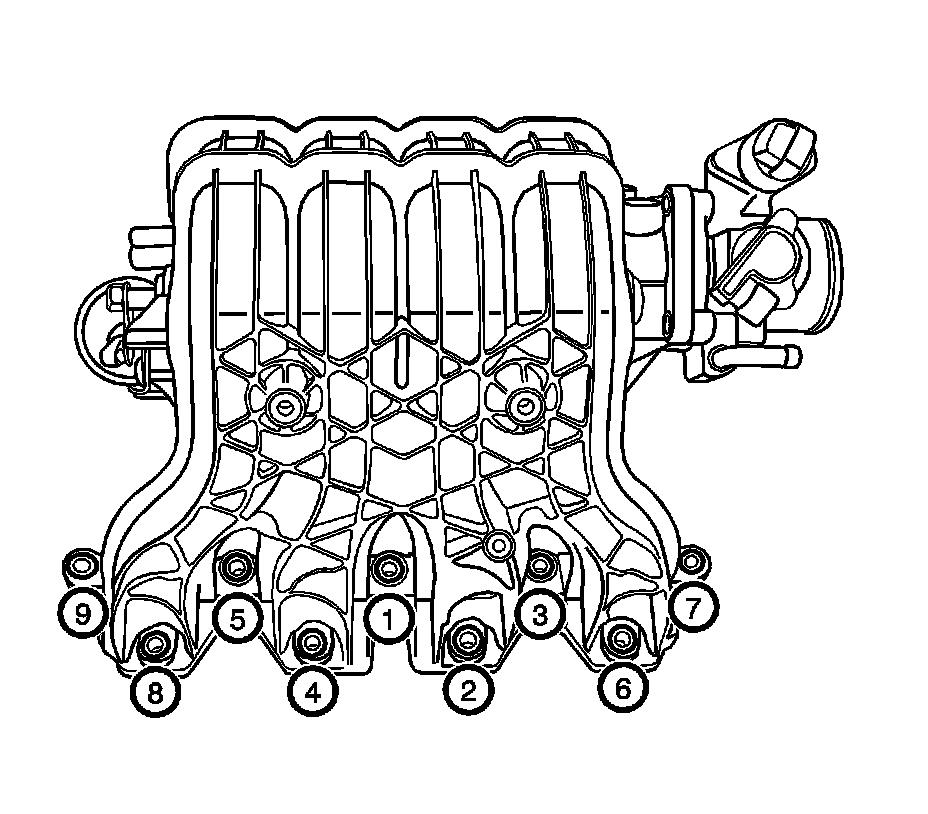

Intake Manifold





Intake Manifold Retaining Nuts 25 N.m (18 lb ft)
Intake Manifold Support Bracket Lower Bolt-to-Engine Block 40 N.m (30 lb ft)
Intake Manifold Support Bracket Upper Bolts 25 N.m (18 lb ft)
