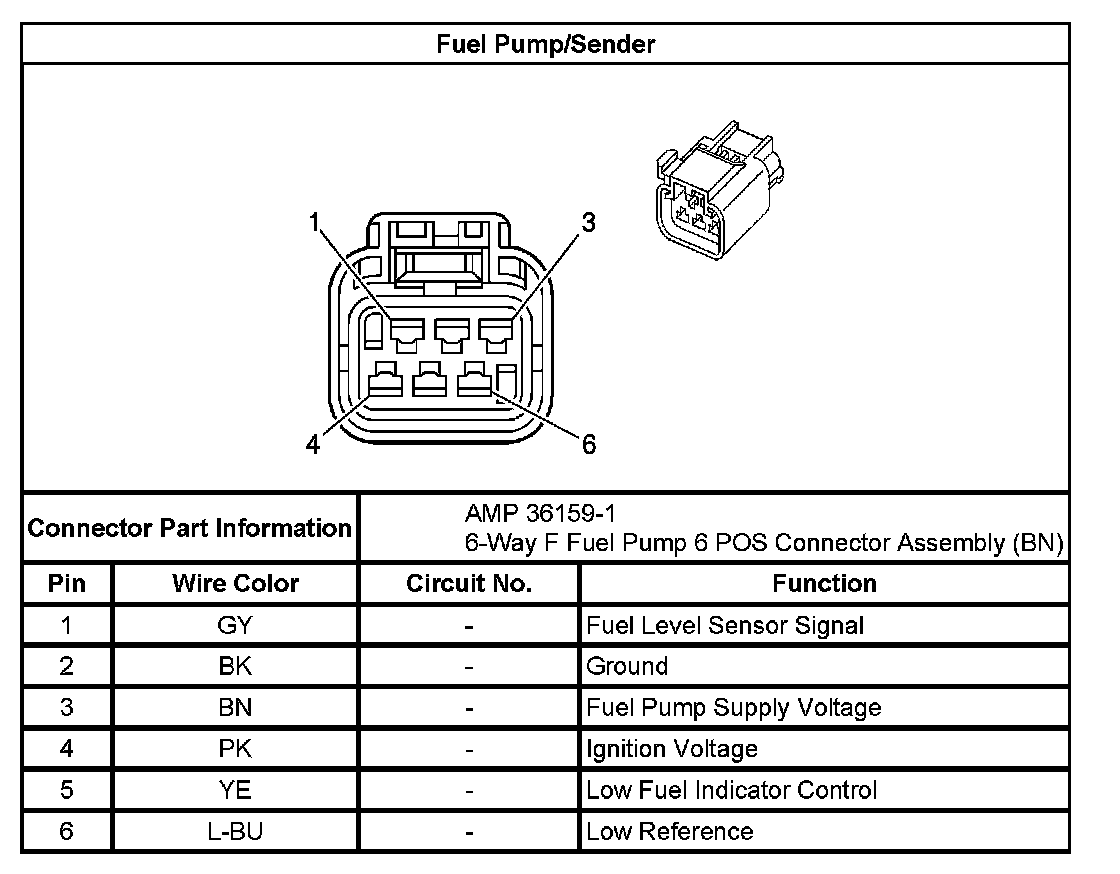

Engine Controls Connector End Views (Notchback)
Engine Controls Connector End Views (Notchback)
Engine Controls Connector End Views (Notchback)
