Engine Control Module Connector End Views (Hatchback)



Engine Control Module Connector End Views (Hatchback)

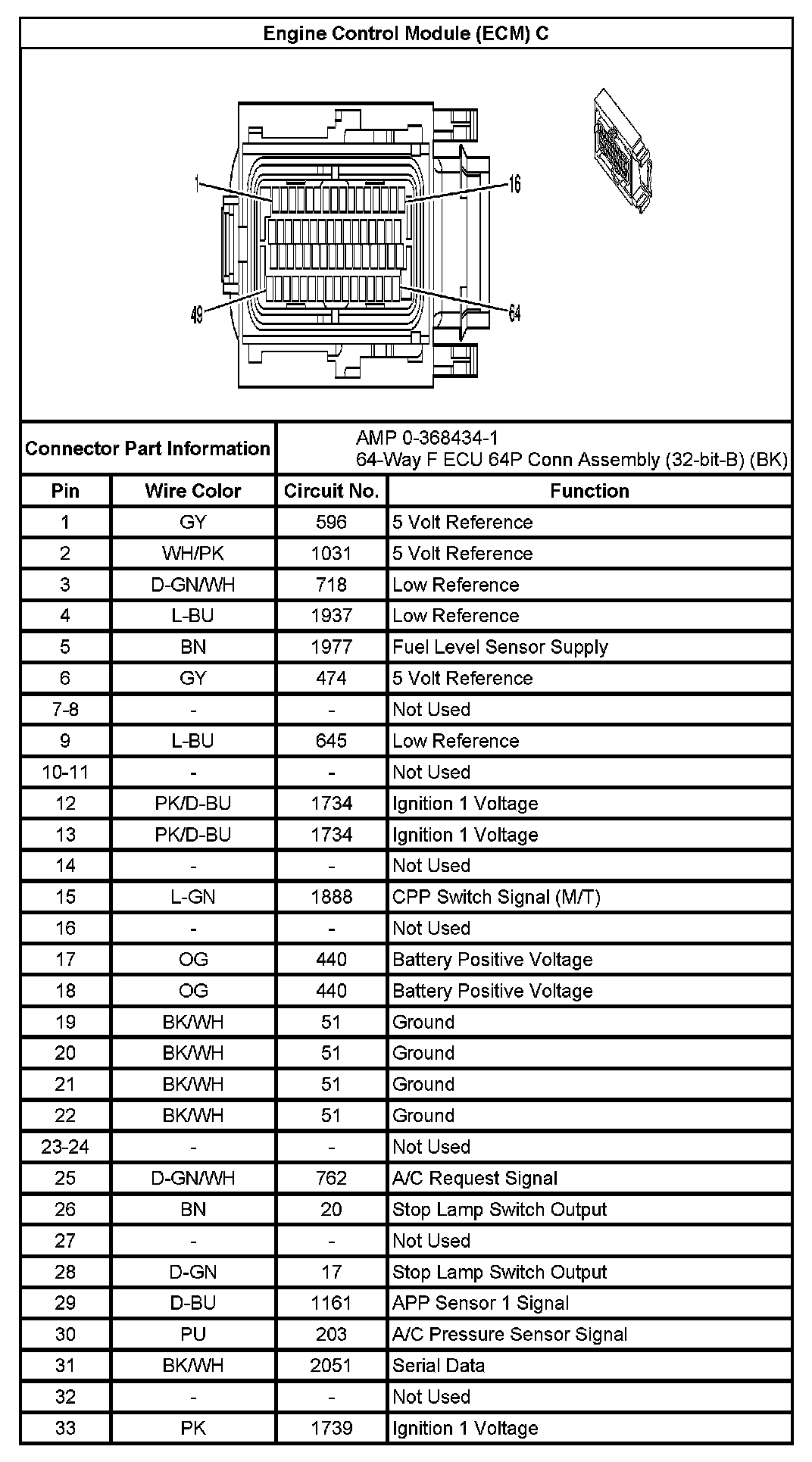

Engine Control Module (ECM) C (Pin 1 To 33):

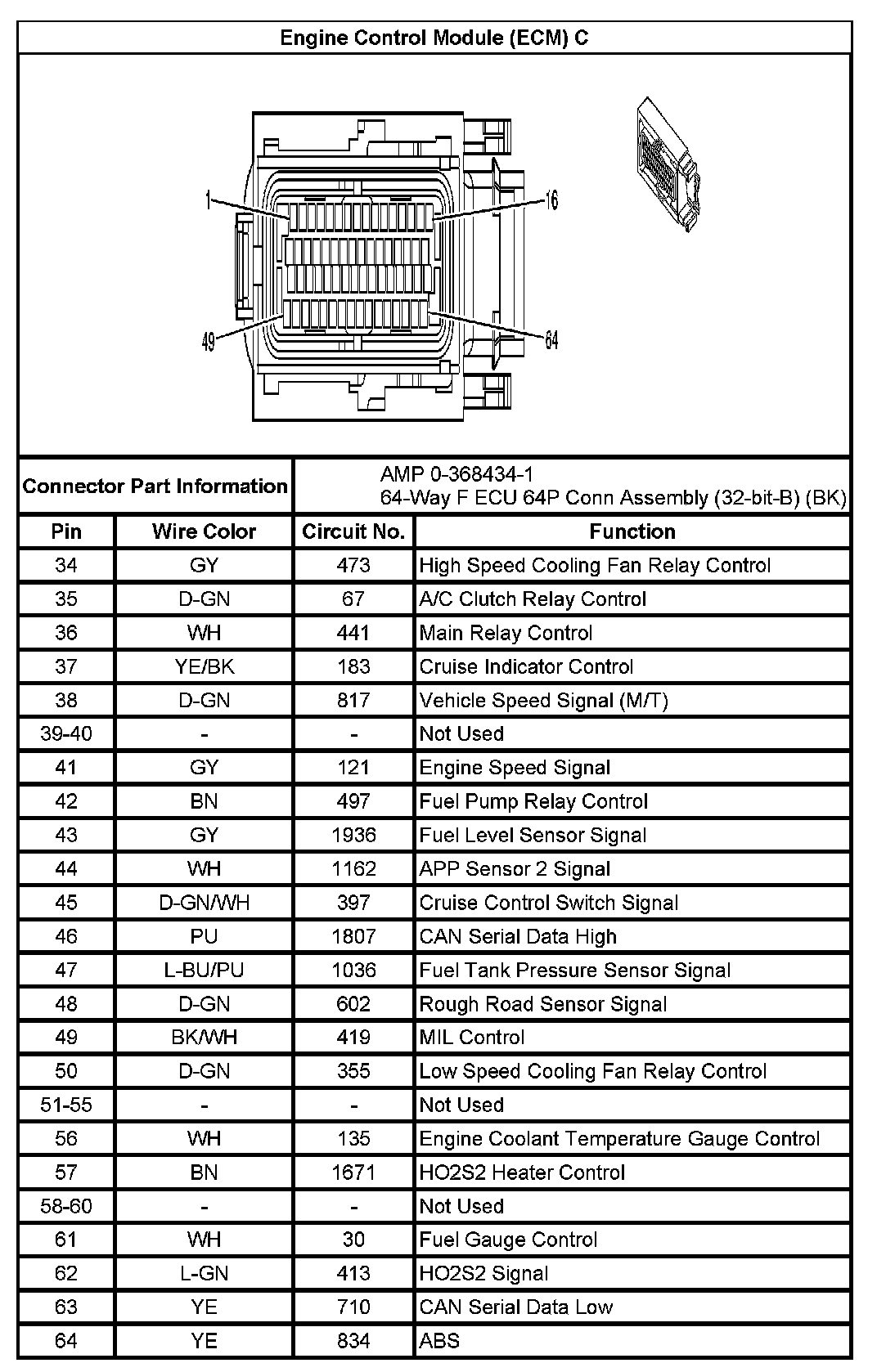

Engine Control Module (ECM) C (Pin 34 To 64):

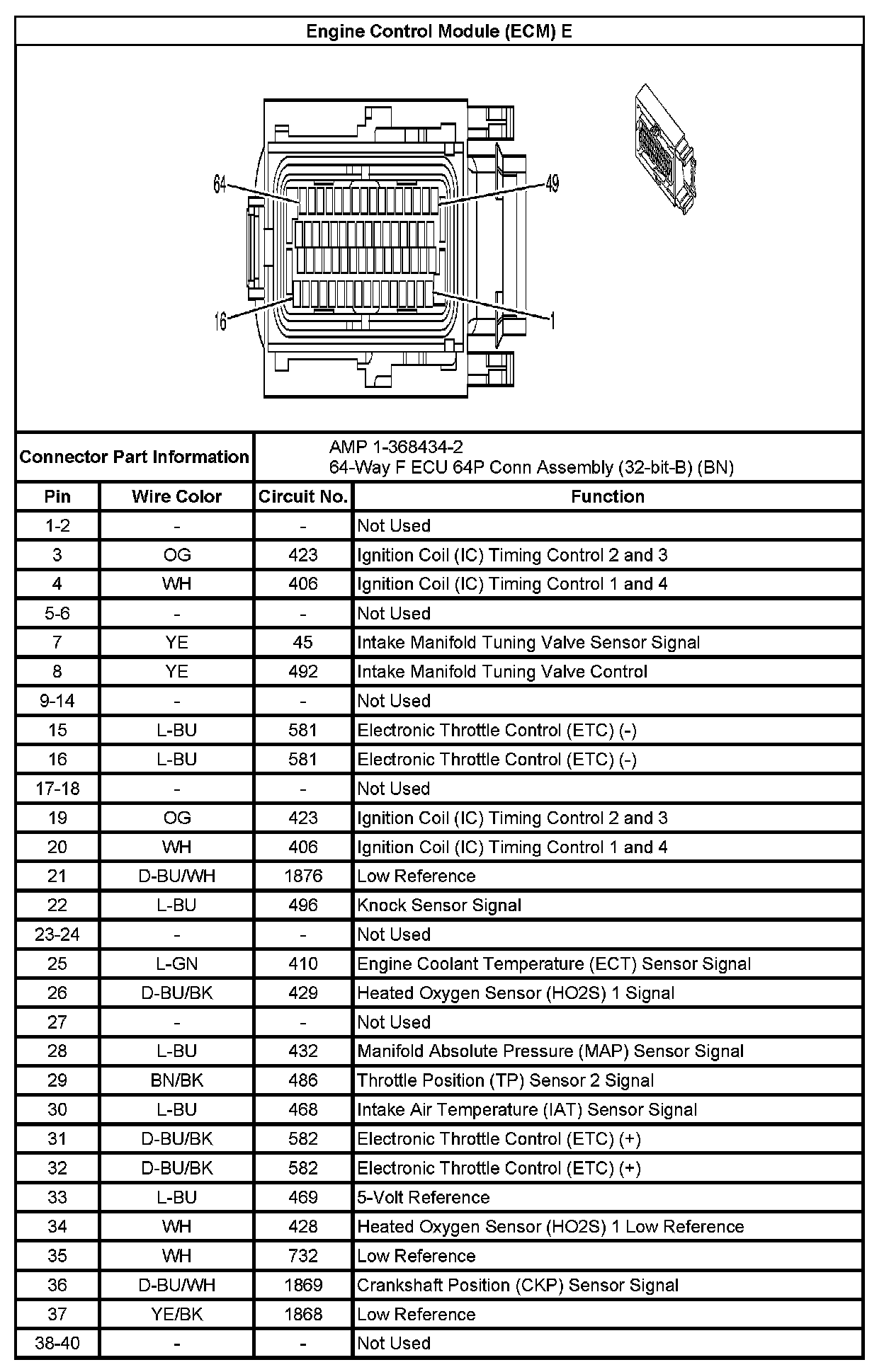

Engine Control Module (ECM) E (Pin 1 To 40):

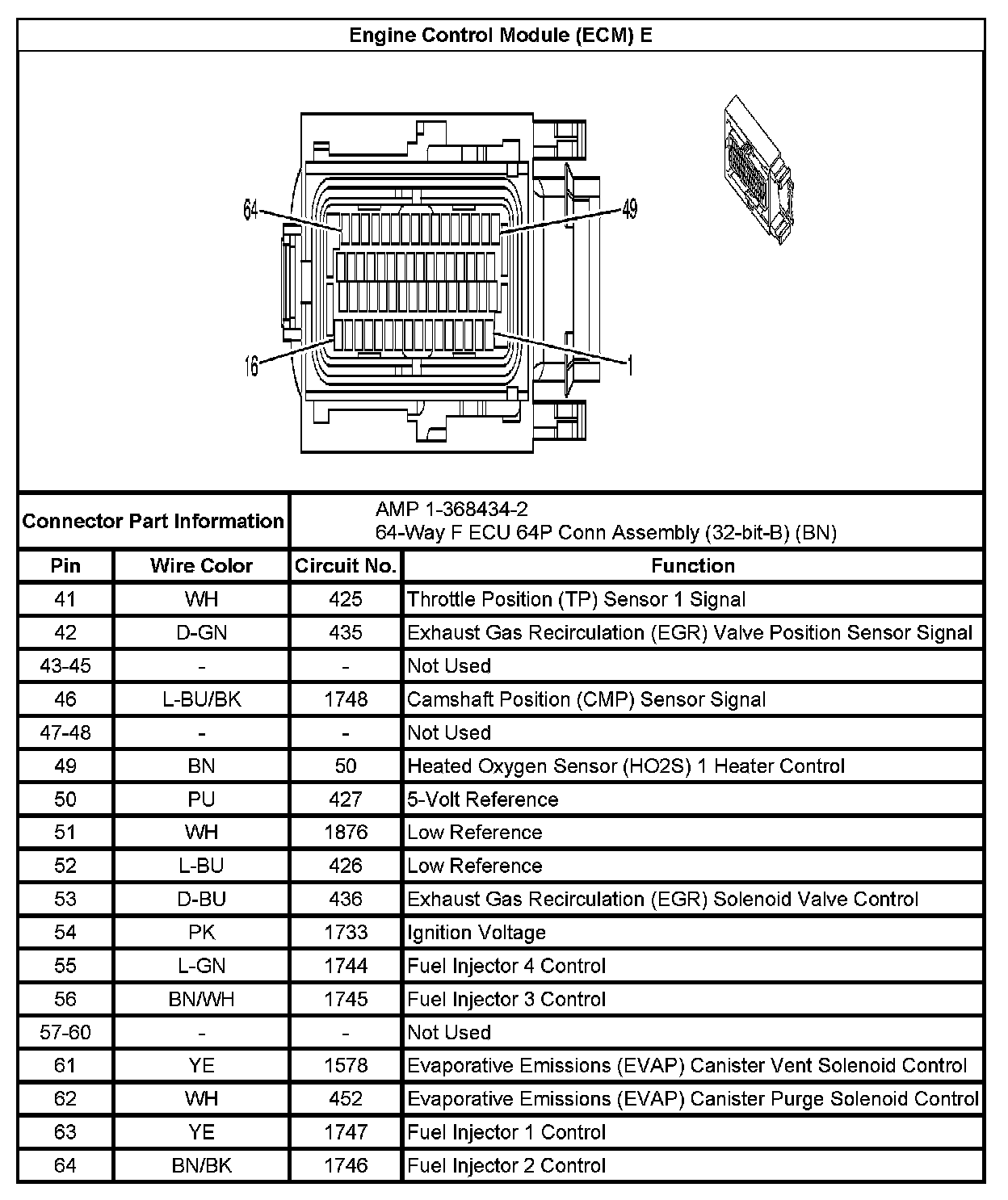

Engine Control Module (ECM) E (Pin 41 To 64):
