Home >> Chevrolet >> 2007 >> Aveo L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Brake Fluid Level Sensor/Switch

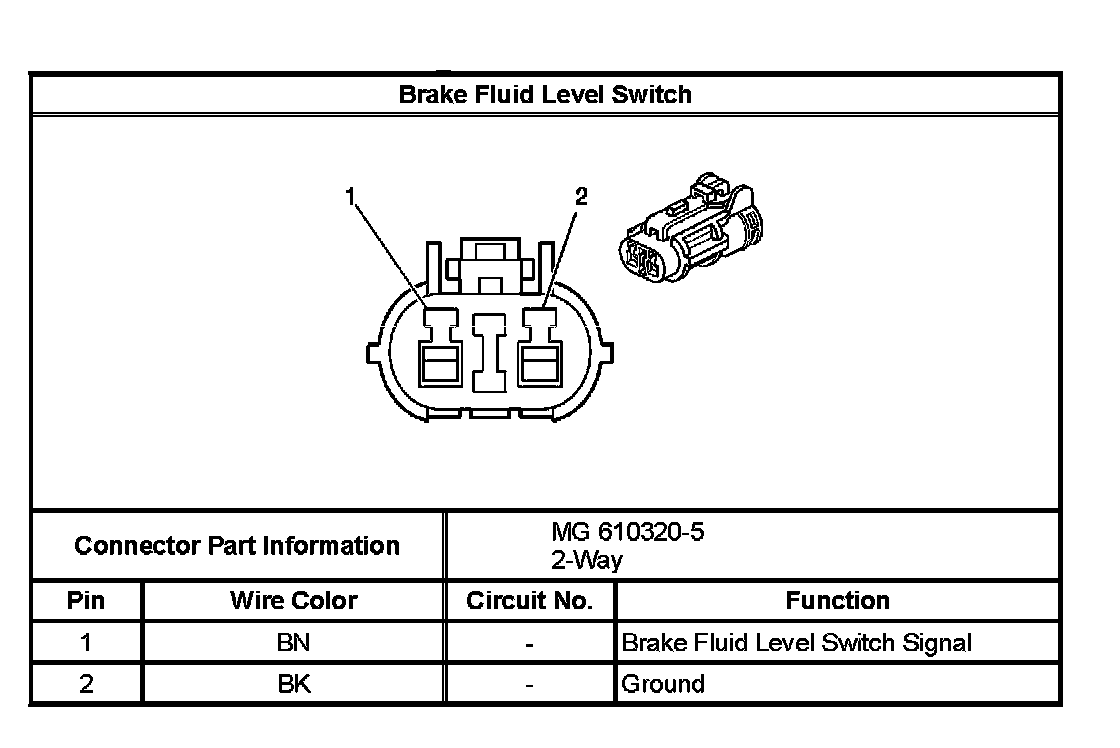

Brake Fluid Level Sensor/Switch



Brake Fluid Level Switch

Brake Fluid Level Switch:
