Home >> Chevrolet >> 2007 >> Aveo L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> Shift Interlock, A/T >> Shift Interlock Control Module

Shift Interlock Control Module



Shift Lock Control Connector End Views (Hatchback)

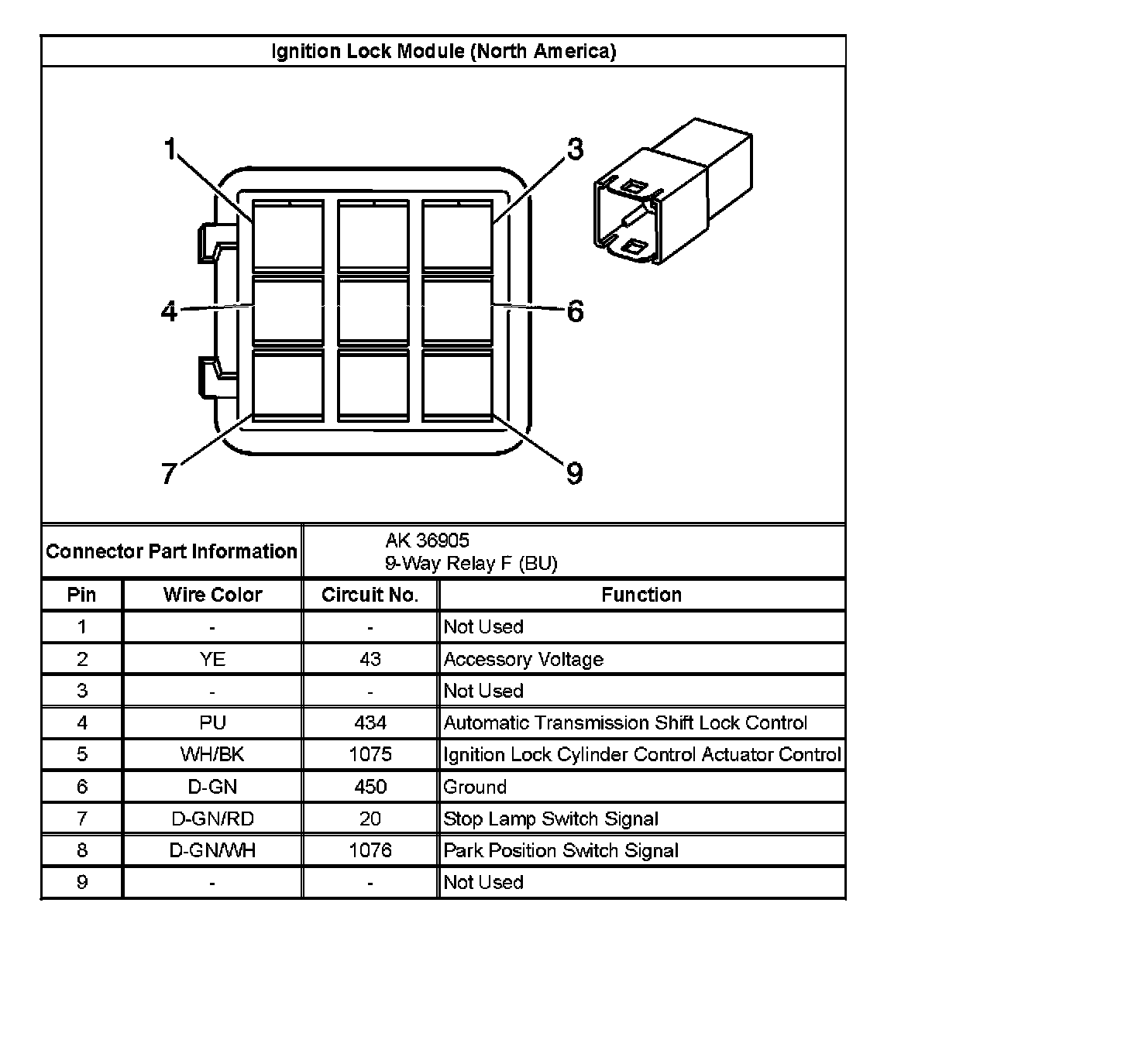

Ignition Lock Module (North America):
