Chevrolet
>>
2006
>>
SSR V8-6.0L VIN H
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Memory Positioning Module
Memory Positioning Module
Memory Seat Module - Driver C1:

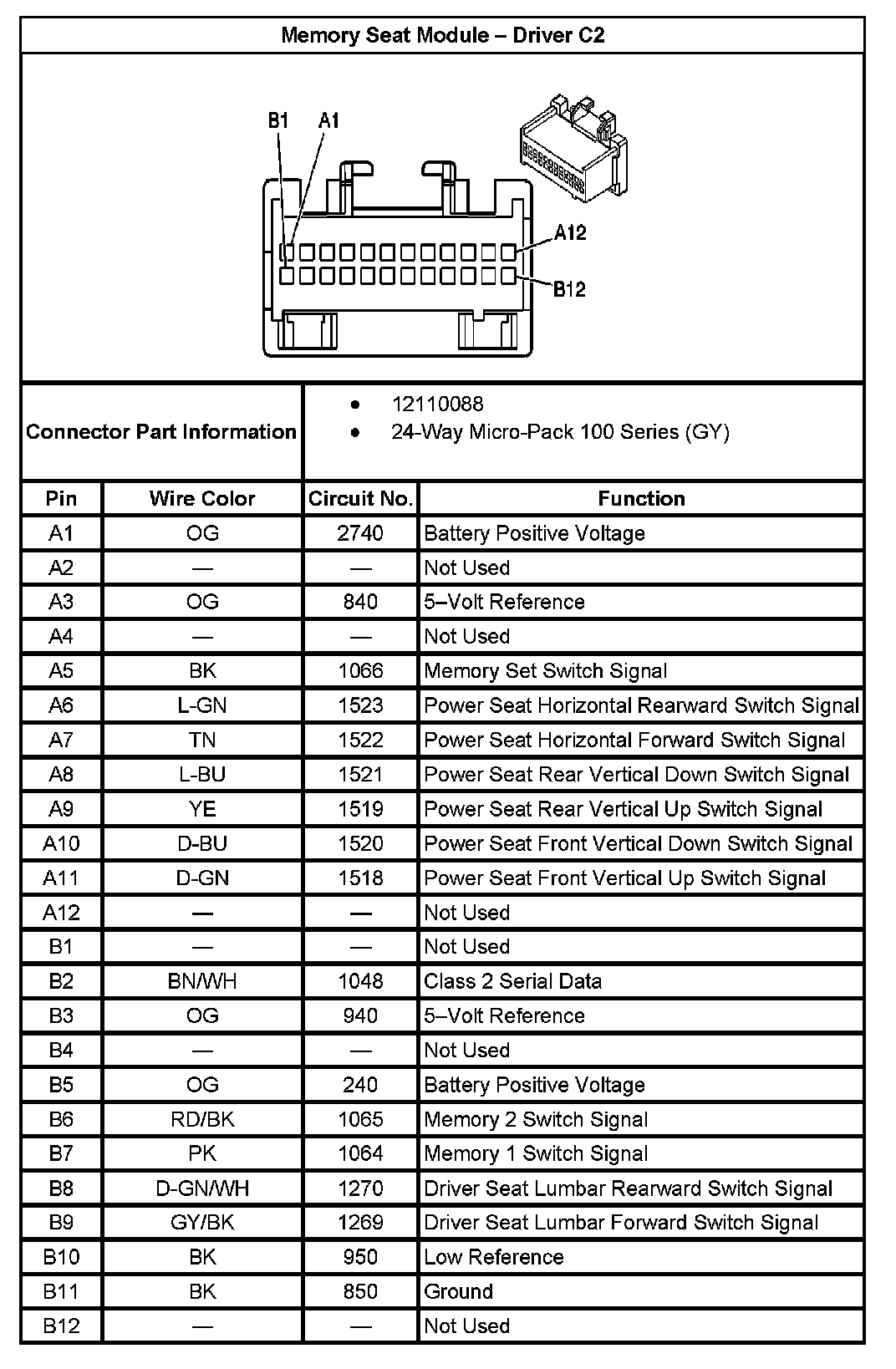

Memory Seat Module - Driver C2:

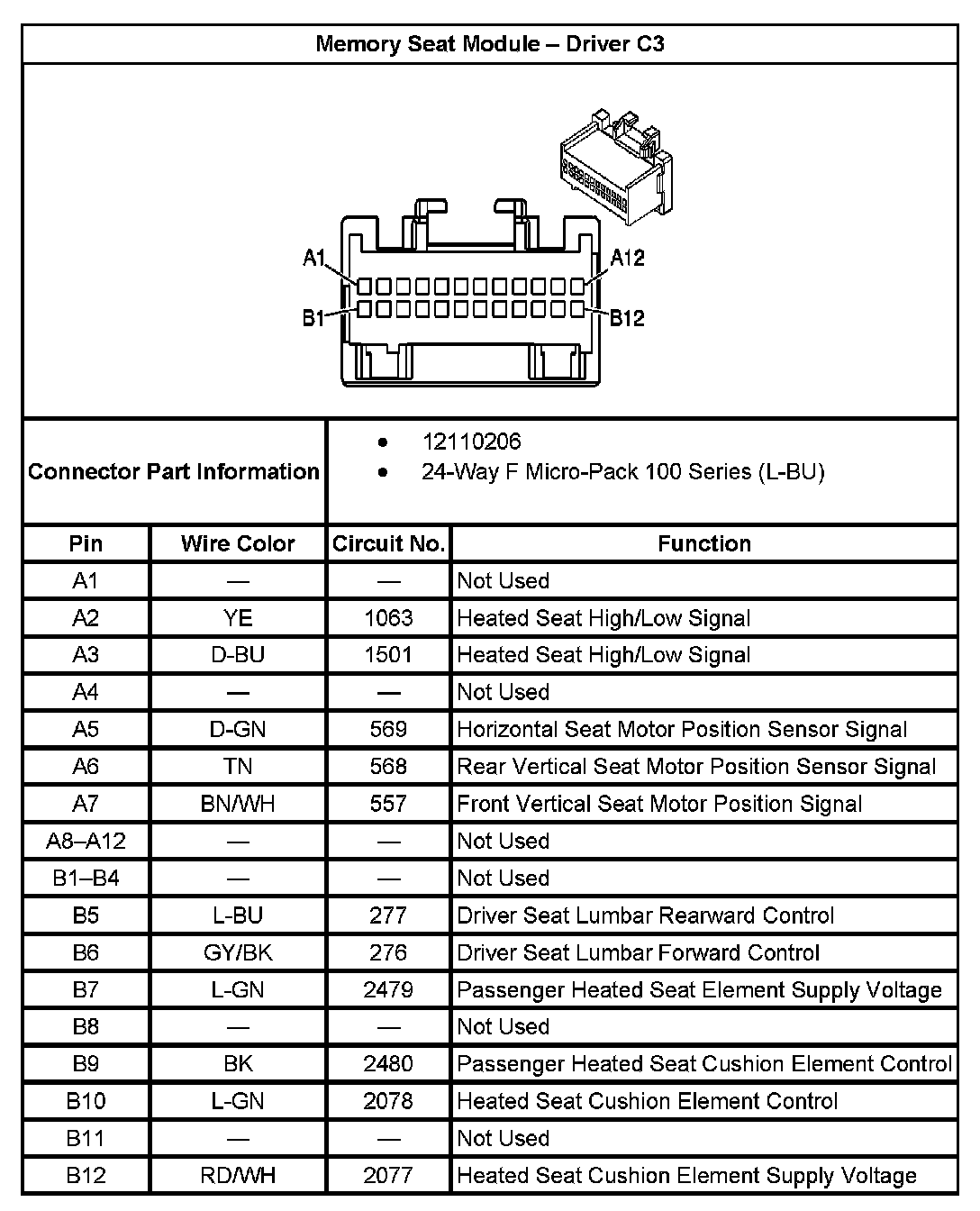

Memory Seat Module - Driver C3:
Memory Seat Module - Driver C4:
