Home >> Chevrolet >> 2006 >> SSR V8-6.0L VIN H >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Engine Control Module (ECM) C3

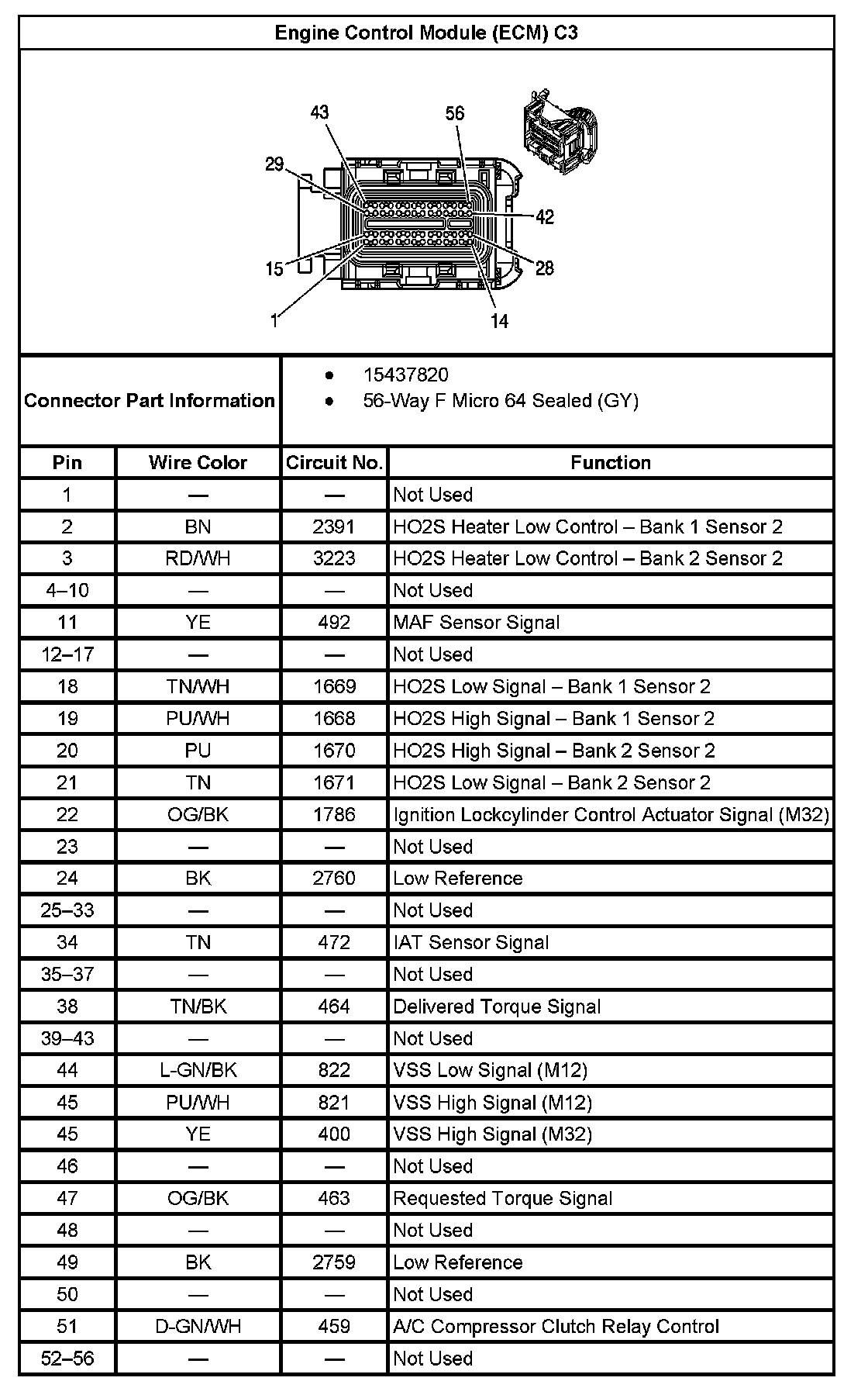

Engine Control Module (ECM) C3

Engine Control Module (ECM) C3:
