Home >> Chevrolet >> 2006 >> SSR V8-6.0L VIN H >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module >> Electronic Brake Control Module (EBCM) C2

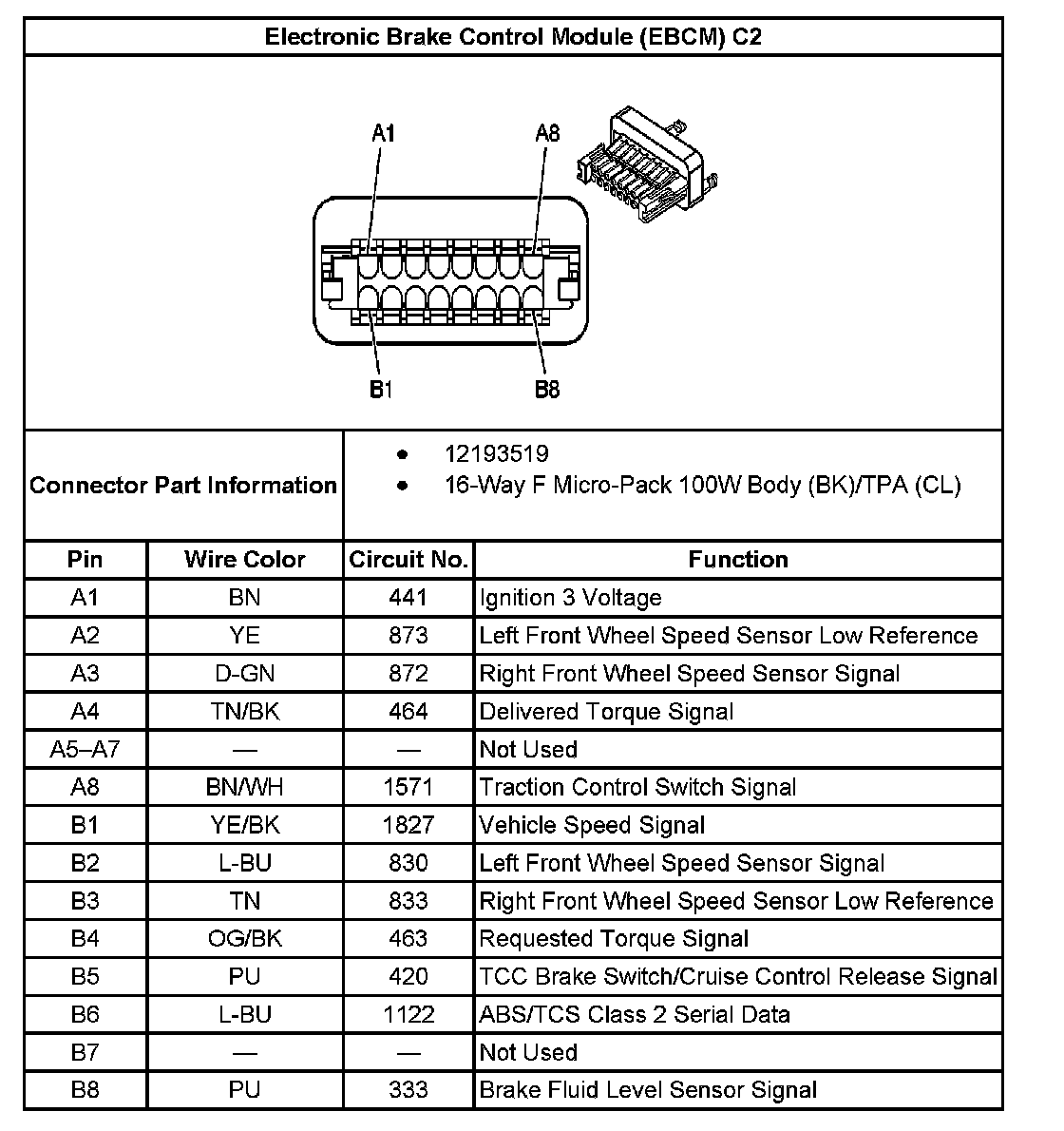

Electronic Brake Control Module (EBCM) C2

Electronic Brake Control Module (EBCM) C2:
