Home >> Chevrolet >> 2006 >> SSR V8-6.0L VIN H >> Repair and Diagnosis >> Diagrams >> Components

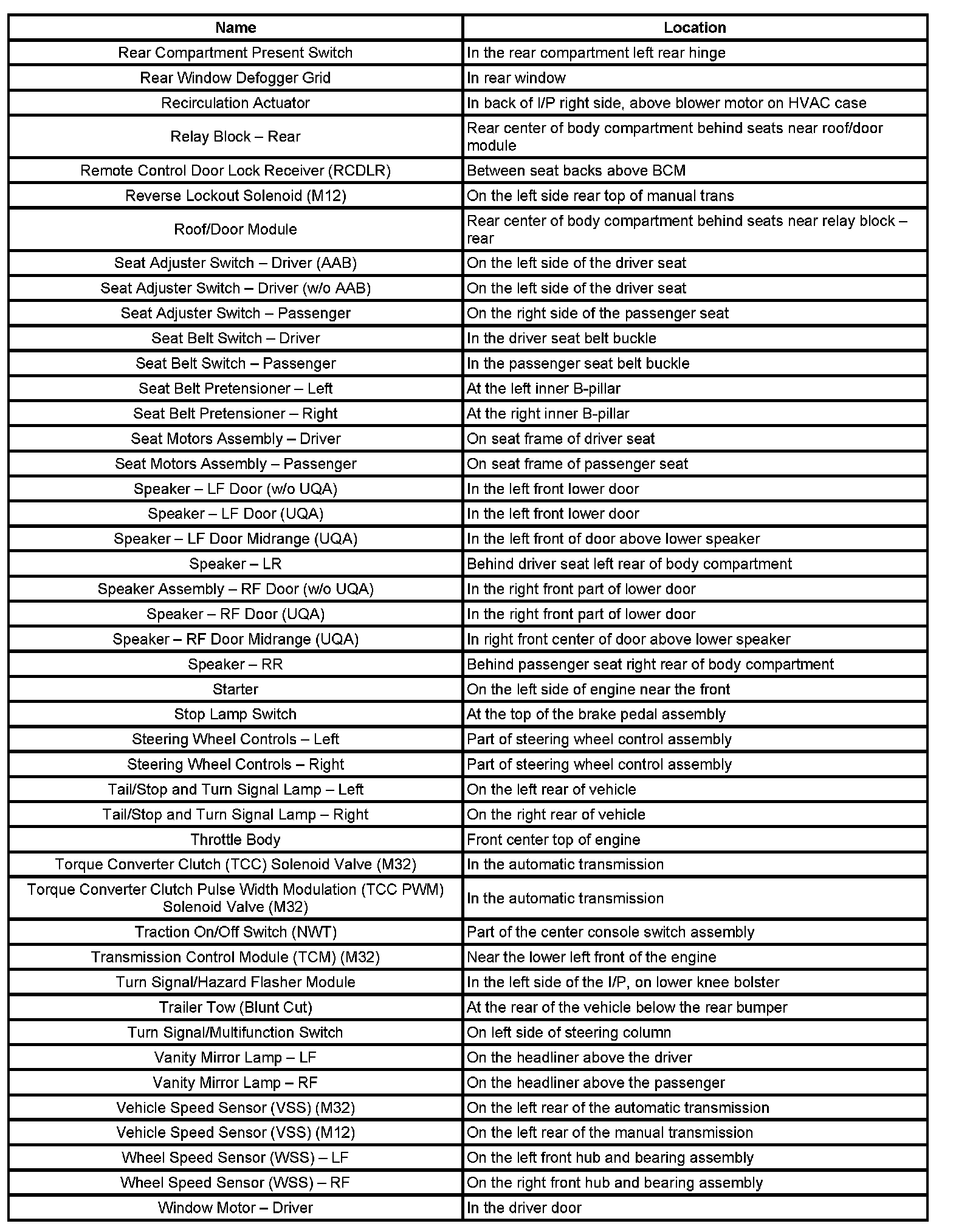

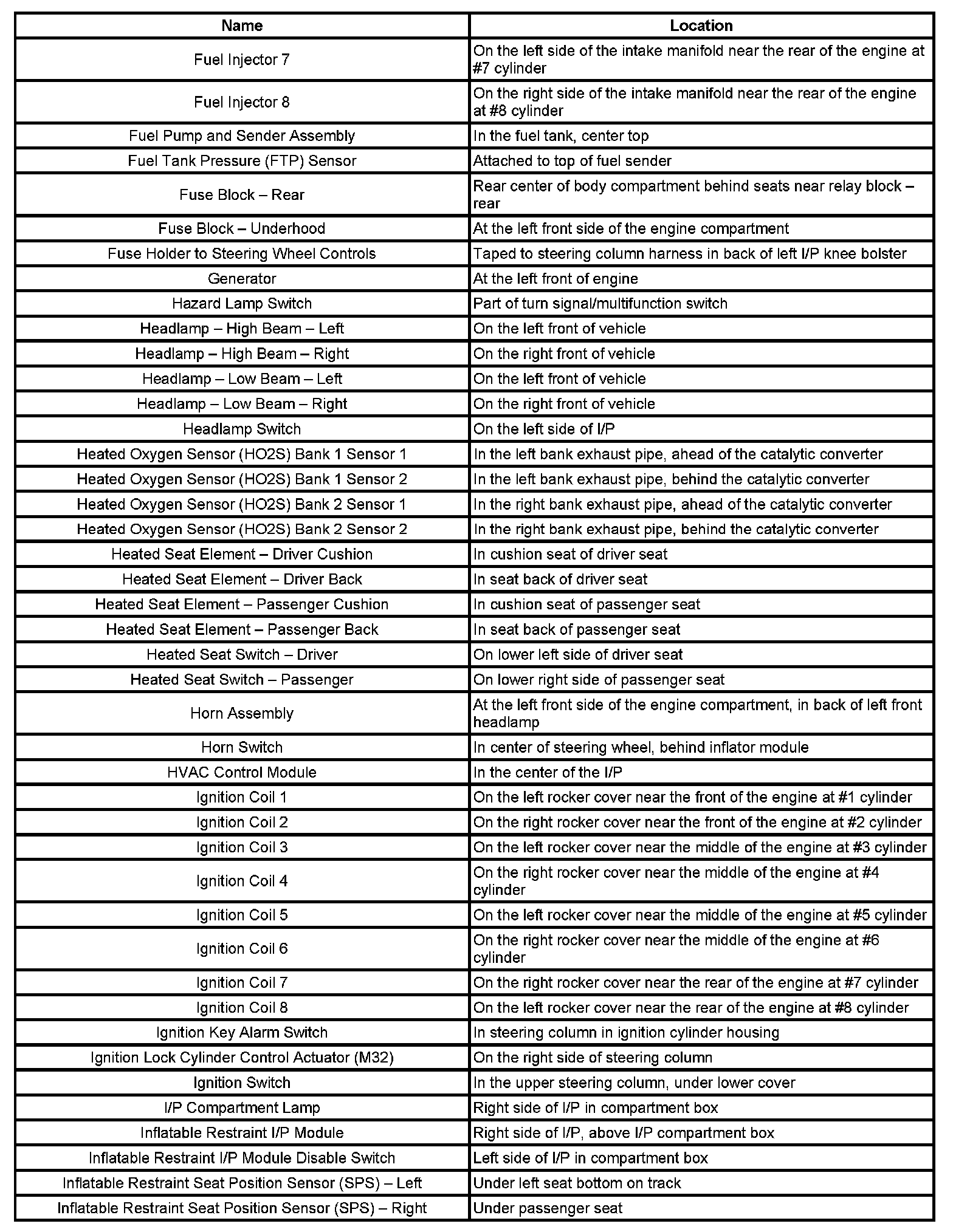

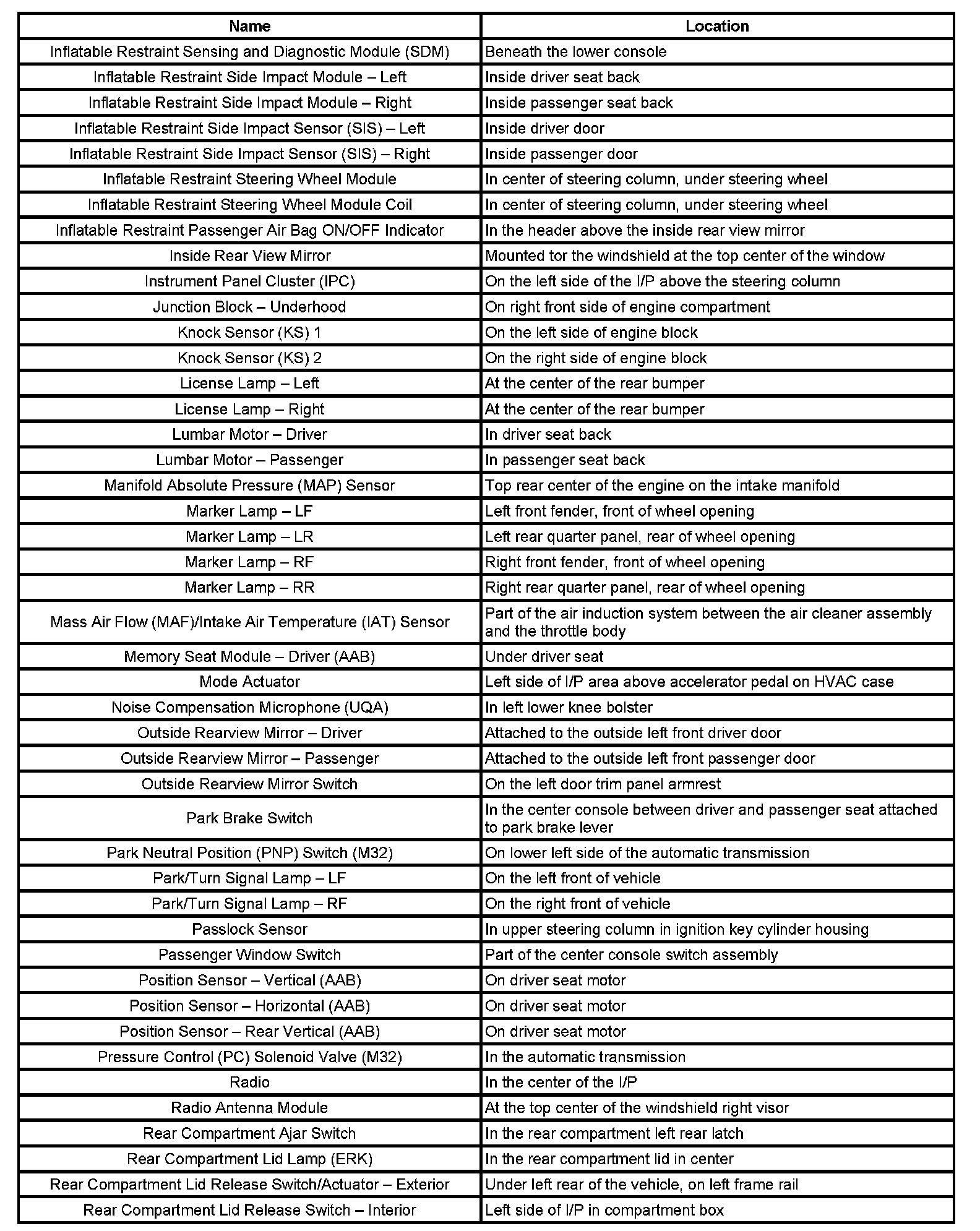

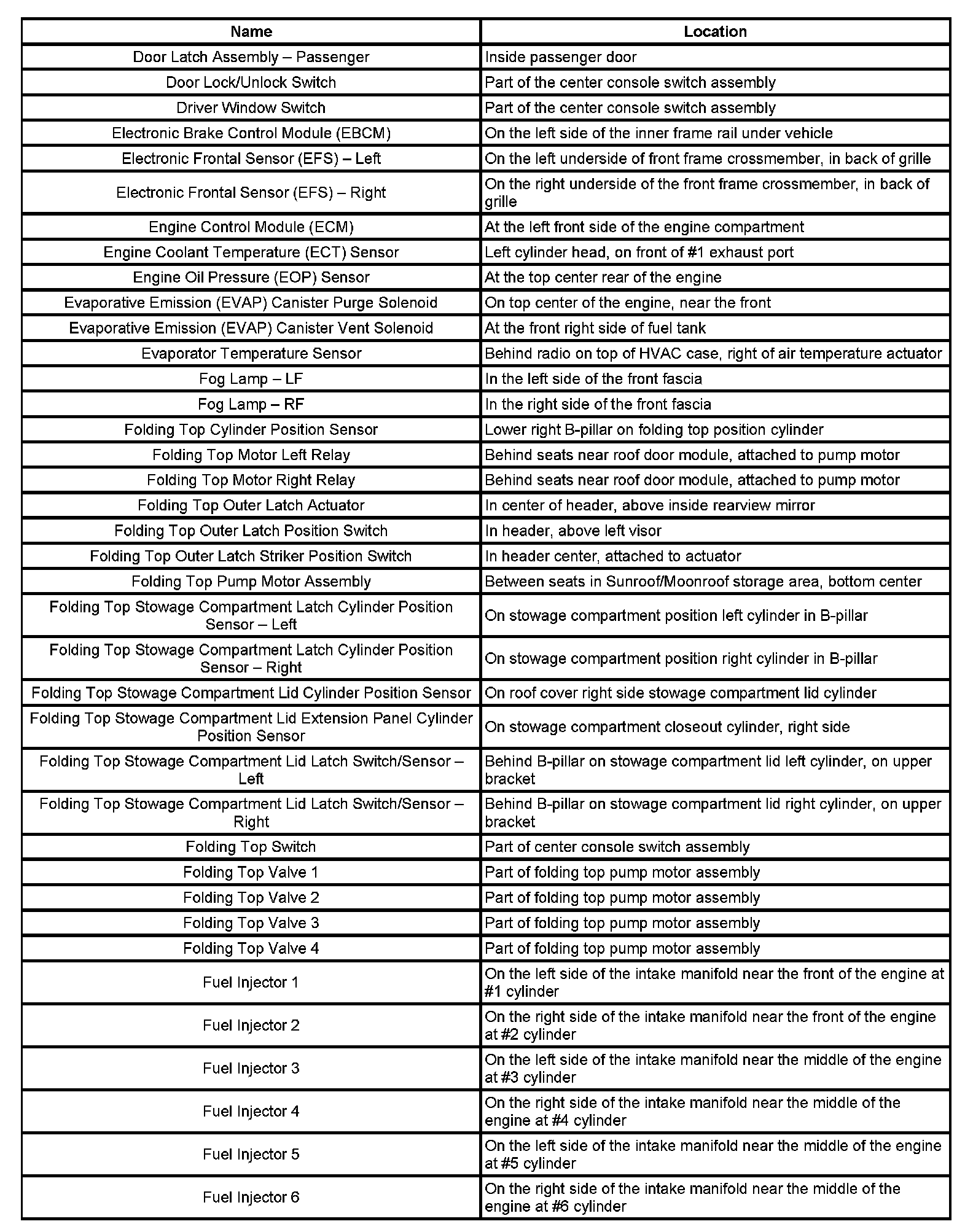

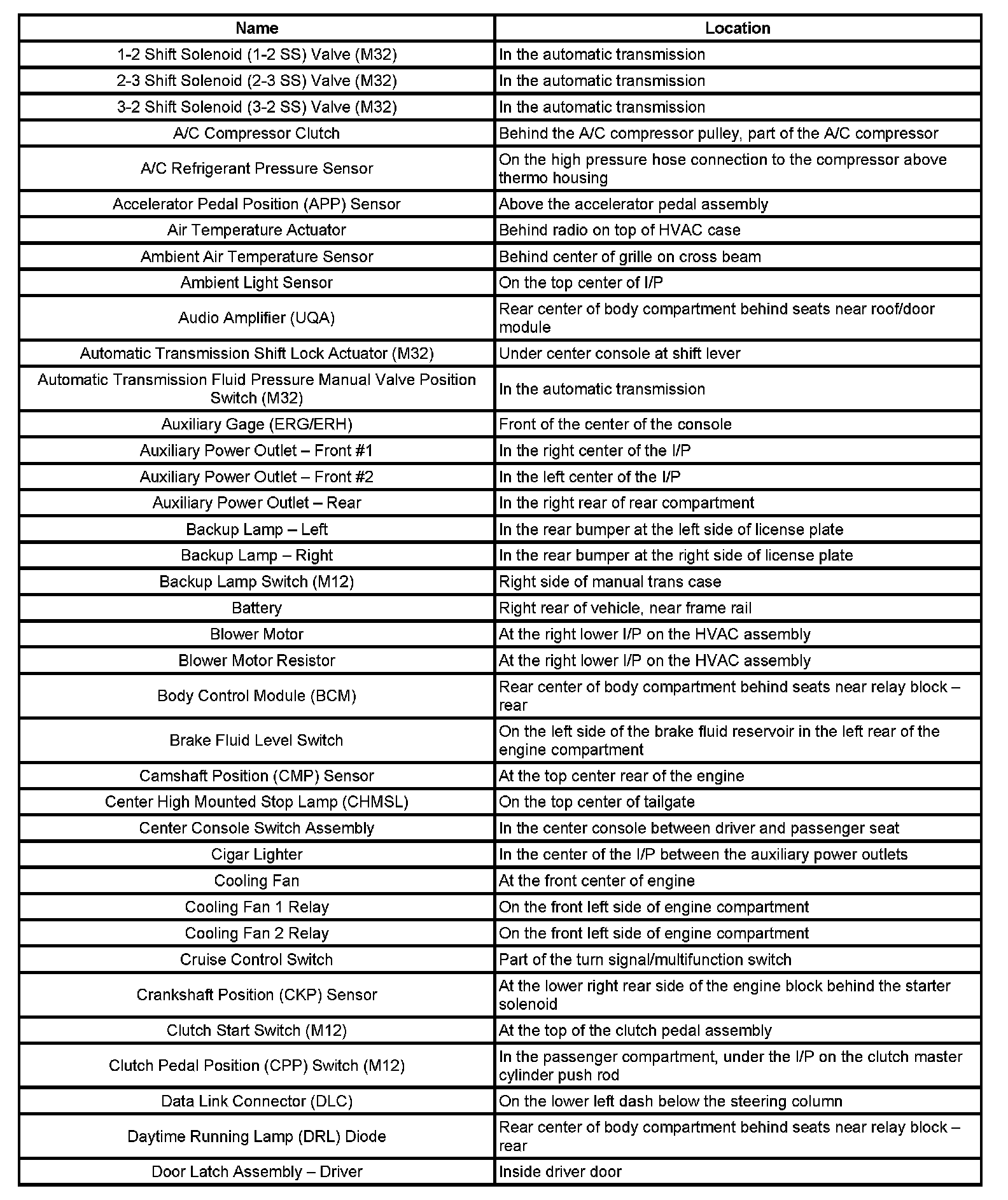

Components



1-2 Sh - Do:




Do - Fu:




Fu - In:




In - Re:




Re - Wi:




Wi - Wi:
