Chevrolet
>>
2006
>>
Optra (CANADA) L4-2.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Connector Views
>>

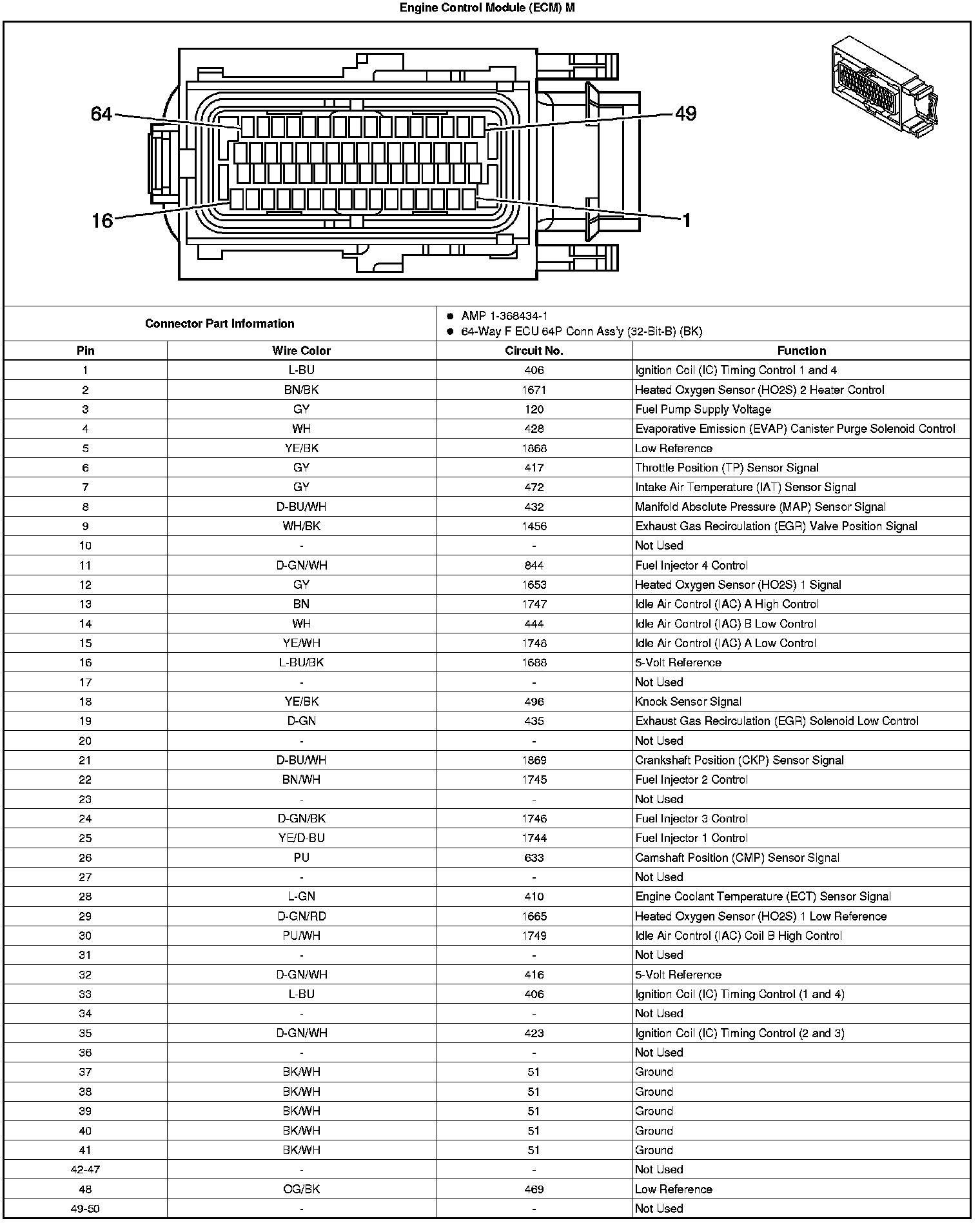

Engine Control Module (ECM) Connector End Views

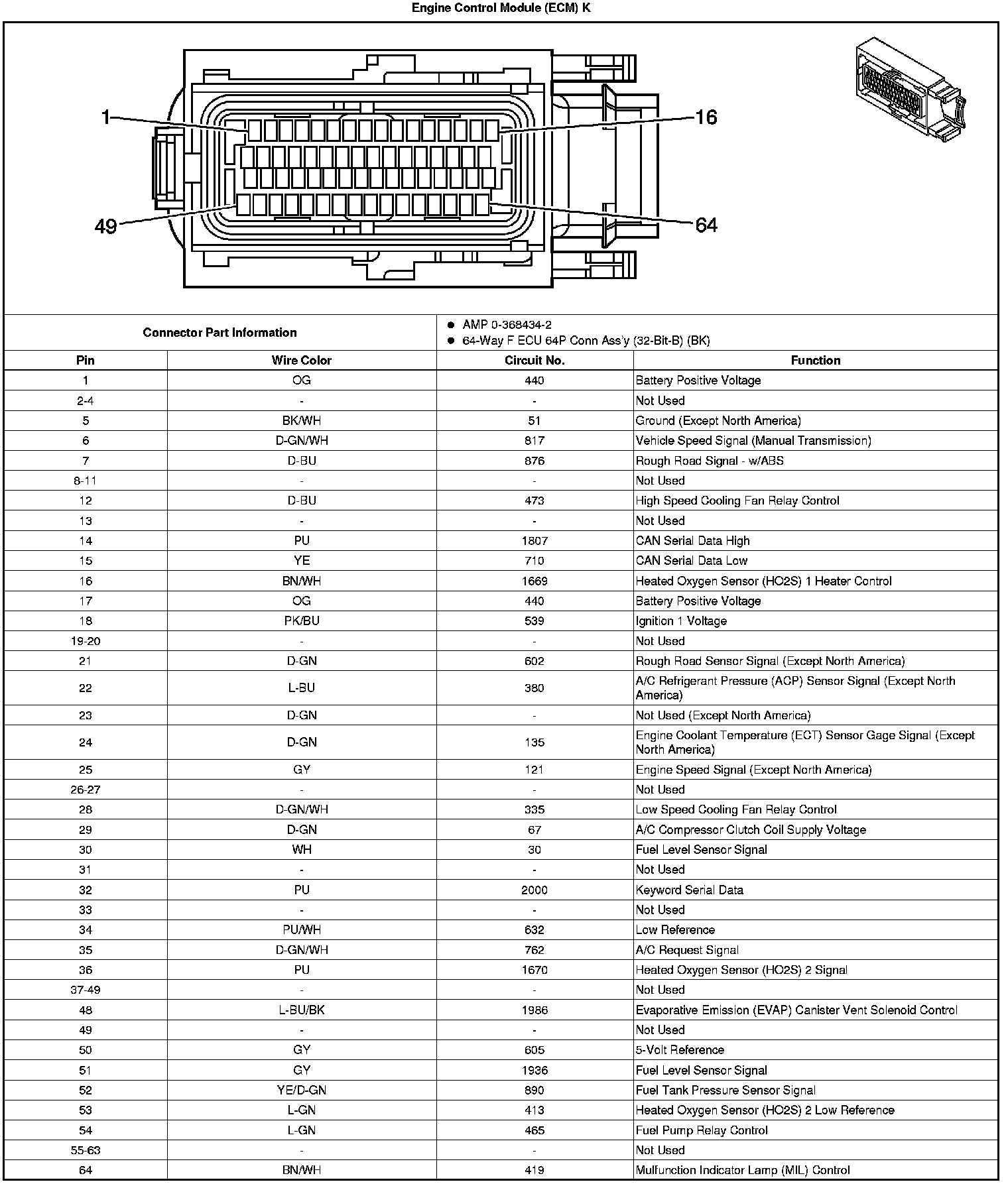

Engine Control Module (ECM) Connector End Views

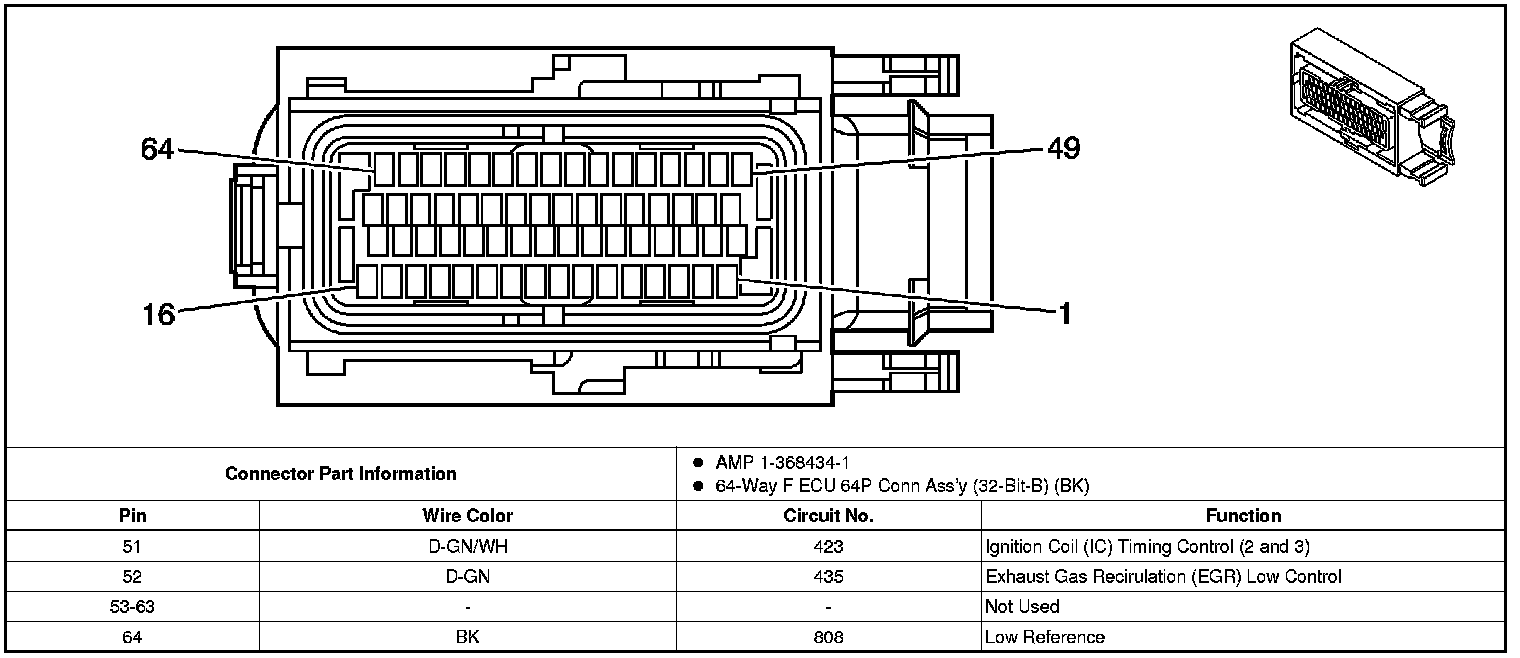

Engine Control Module (ECM) Connector End Views
