Home >> Chevrolet >> 2006 >> Impala V6-3.9L VIN 1 >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Scan Tool Output Controls

Scan Tool Output Controls

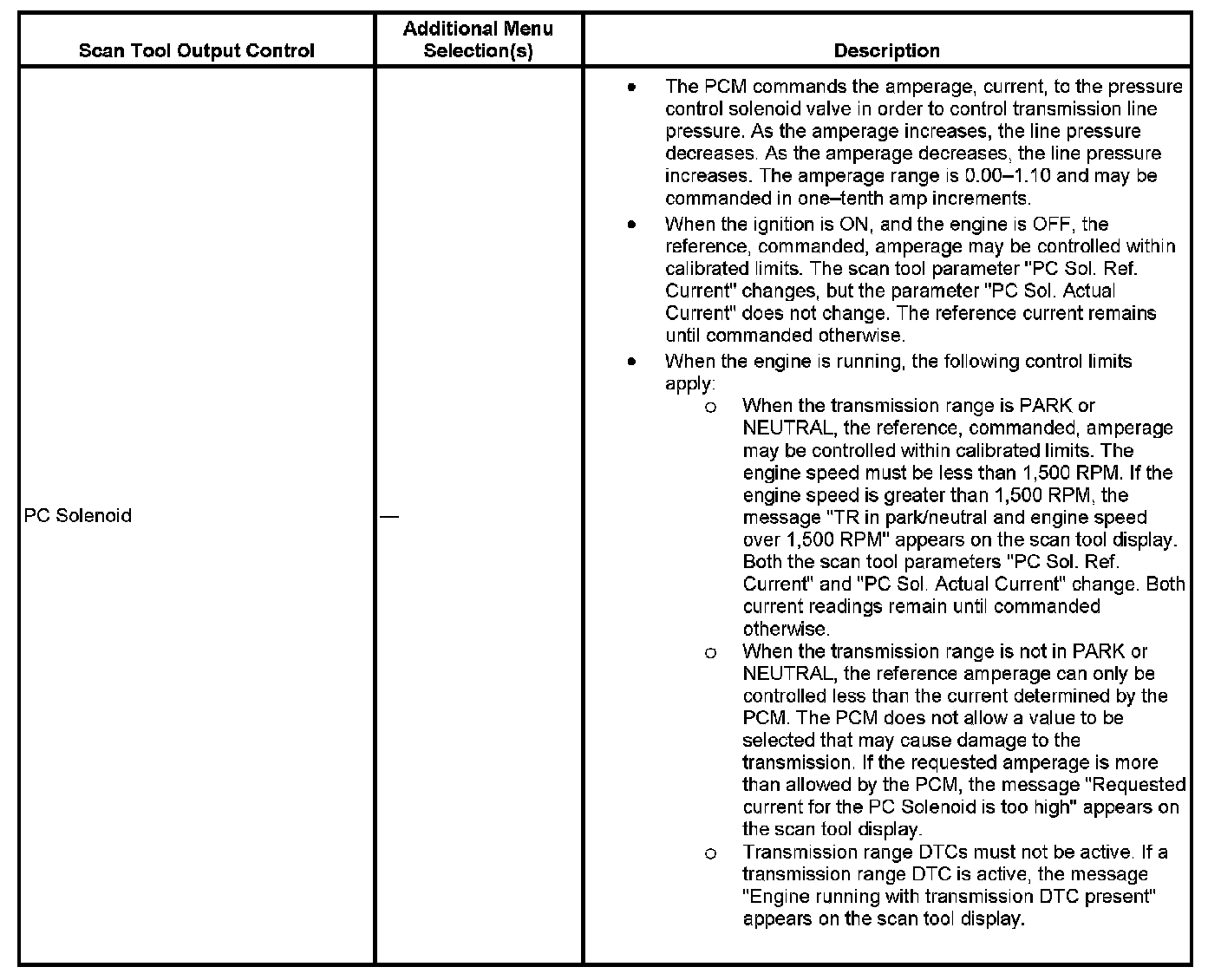

Scan Tool Output Controls 1:

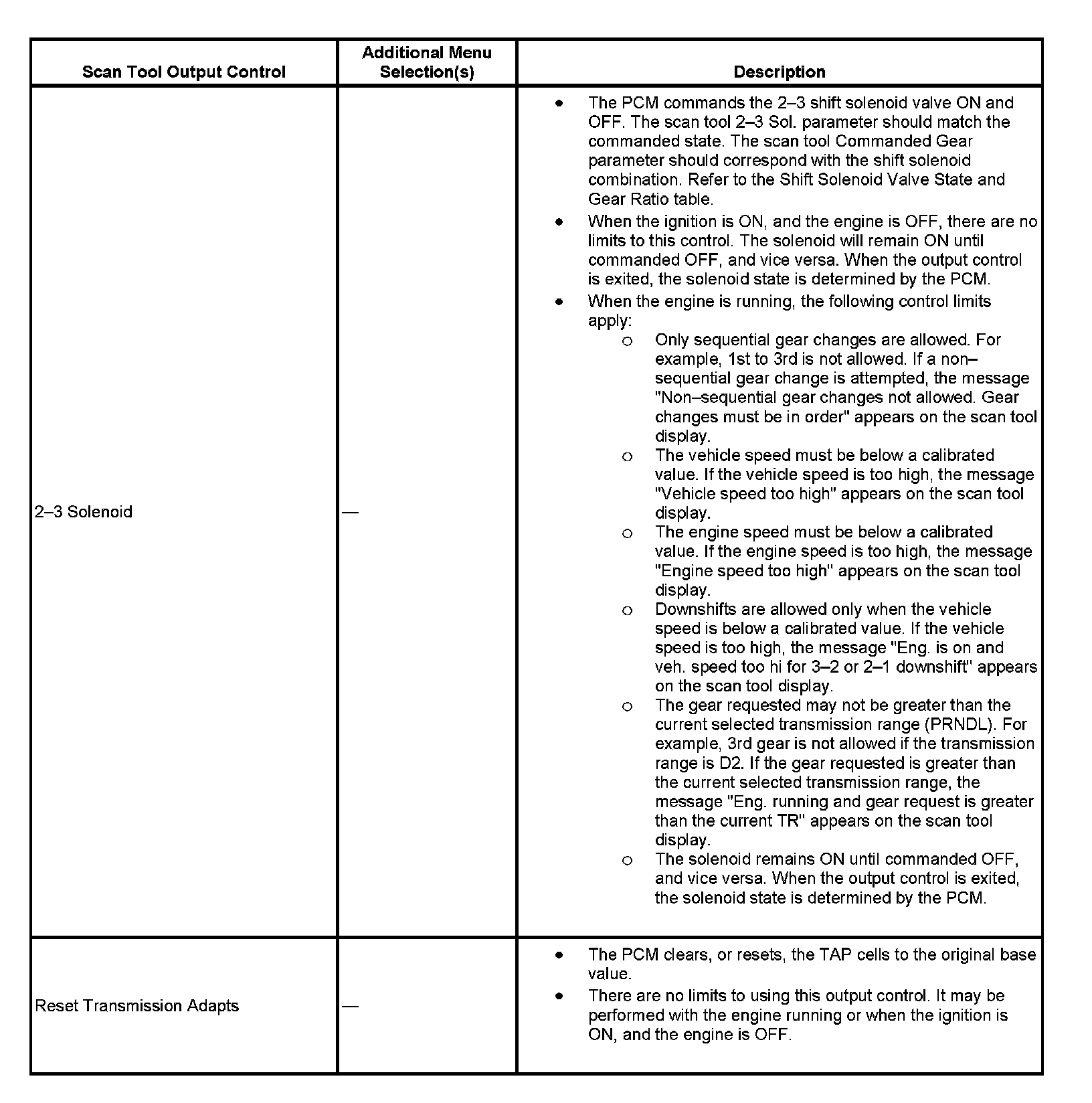

Scan Tool Output Controls 2:

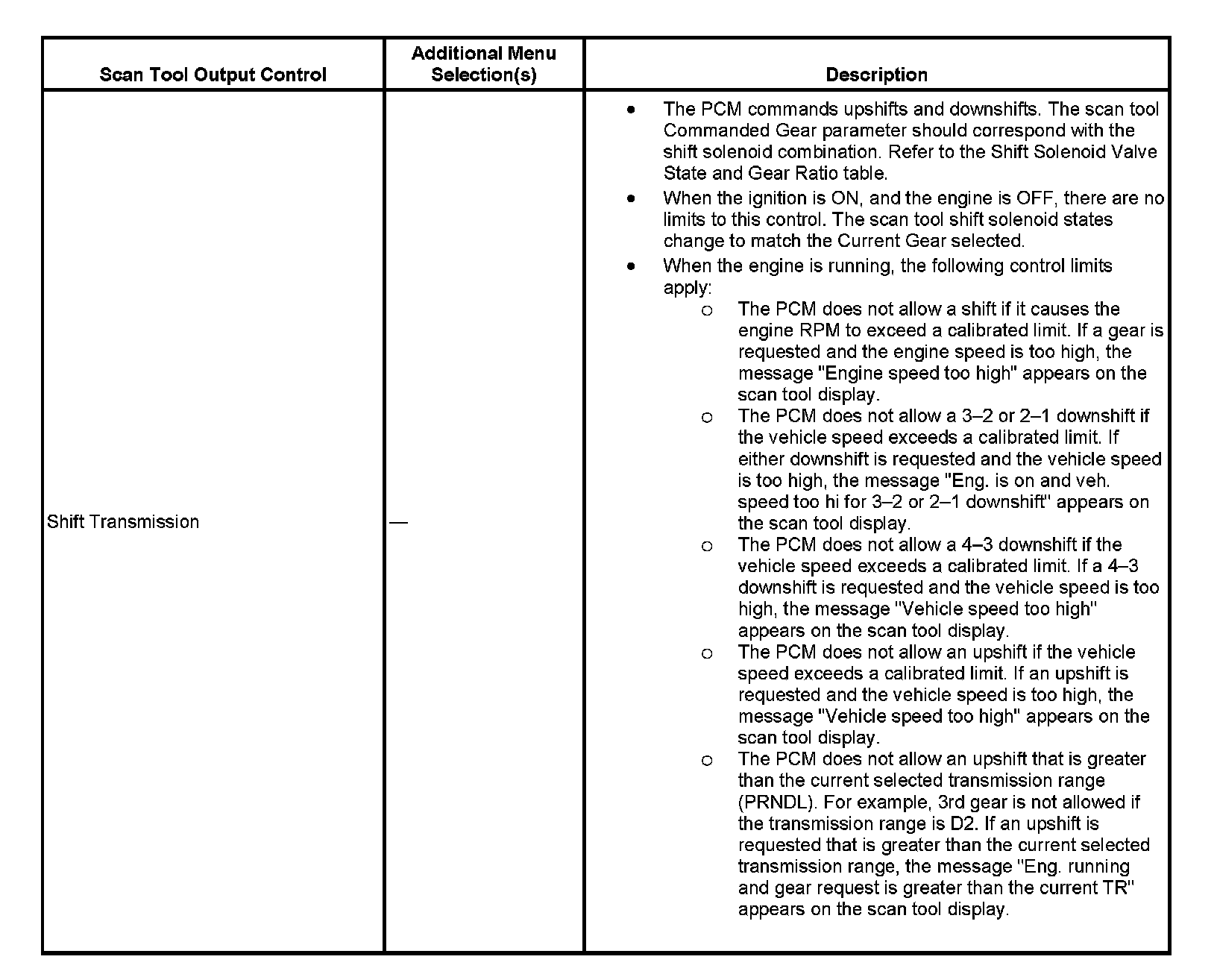

Scan Tool Output Controls 3:

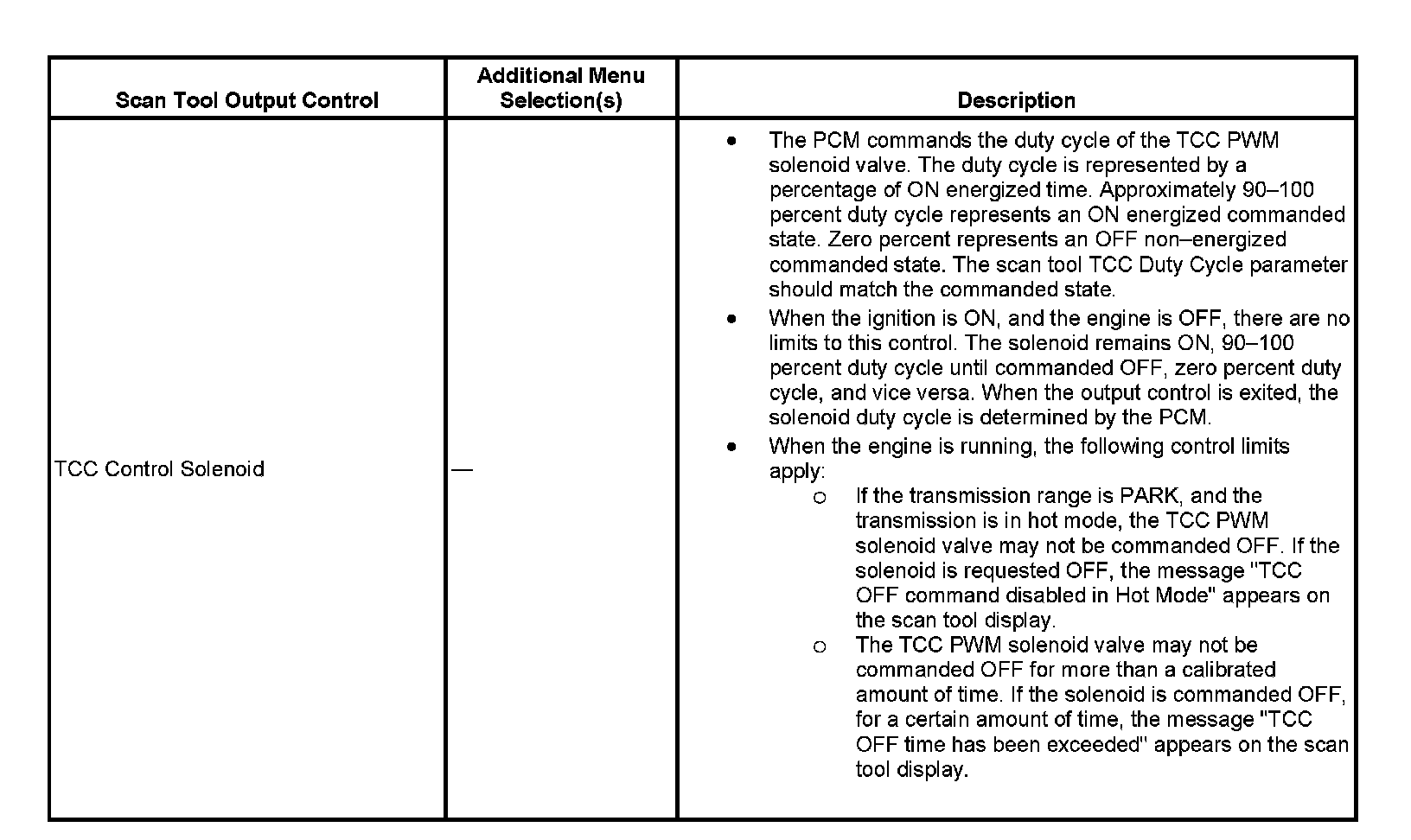

Scan Tool Output Controls 4:

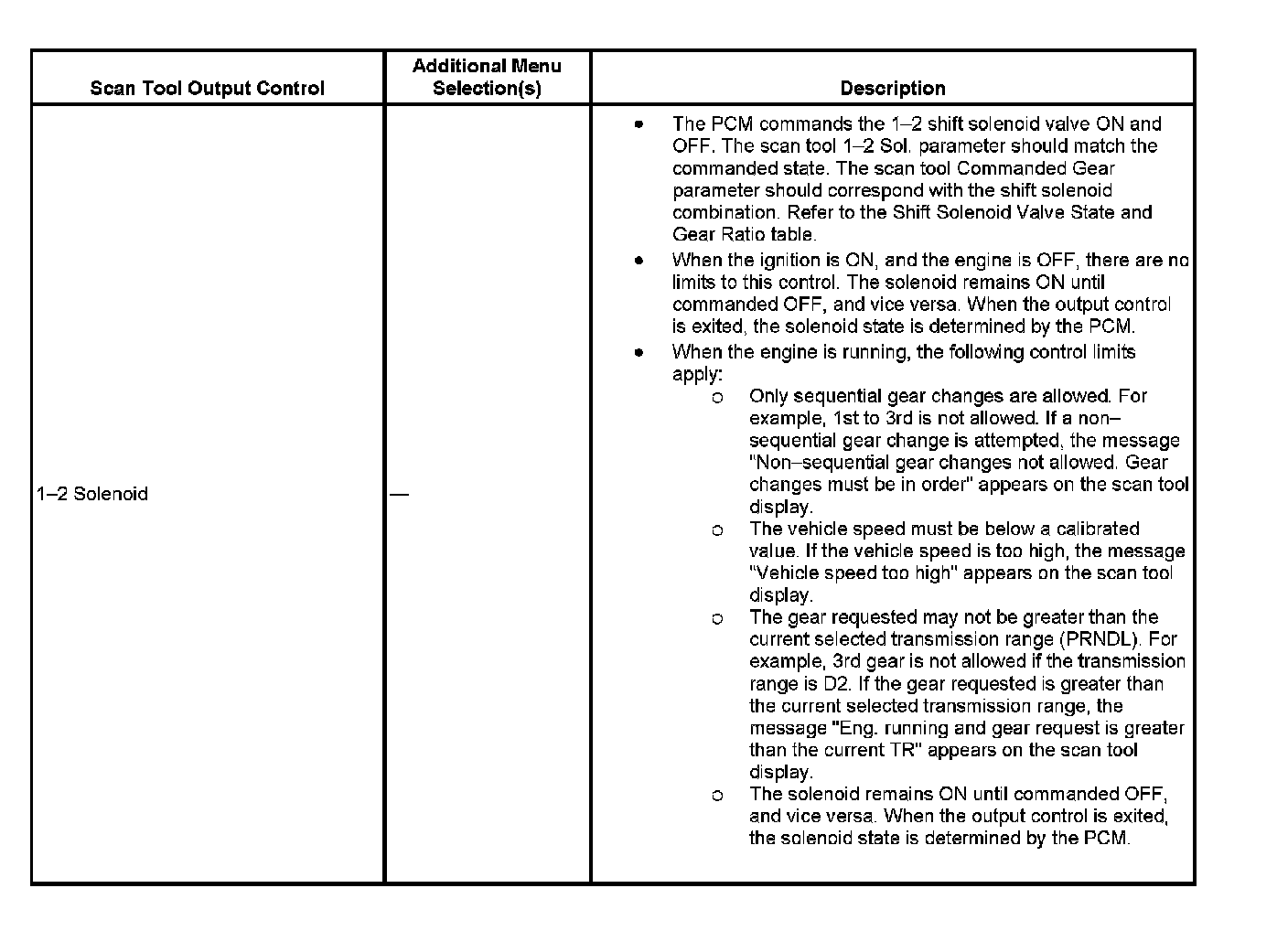

Scan Tool Output Controls 5:
