Main Relay (Computer/Fuel System): Locations
Location View:

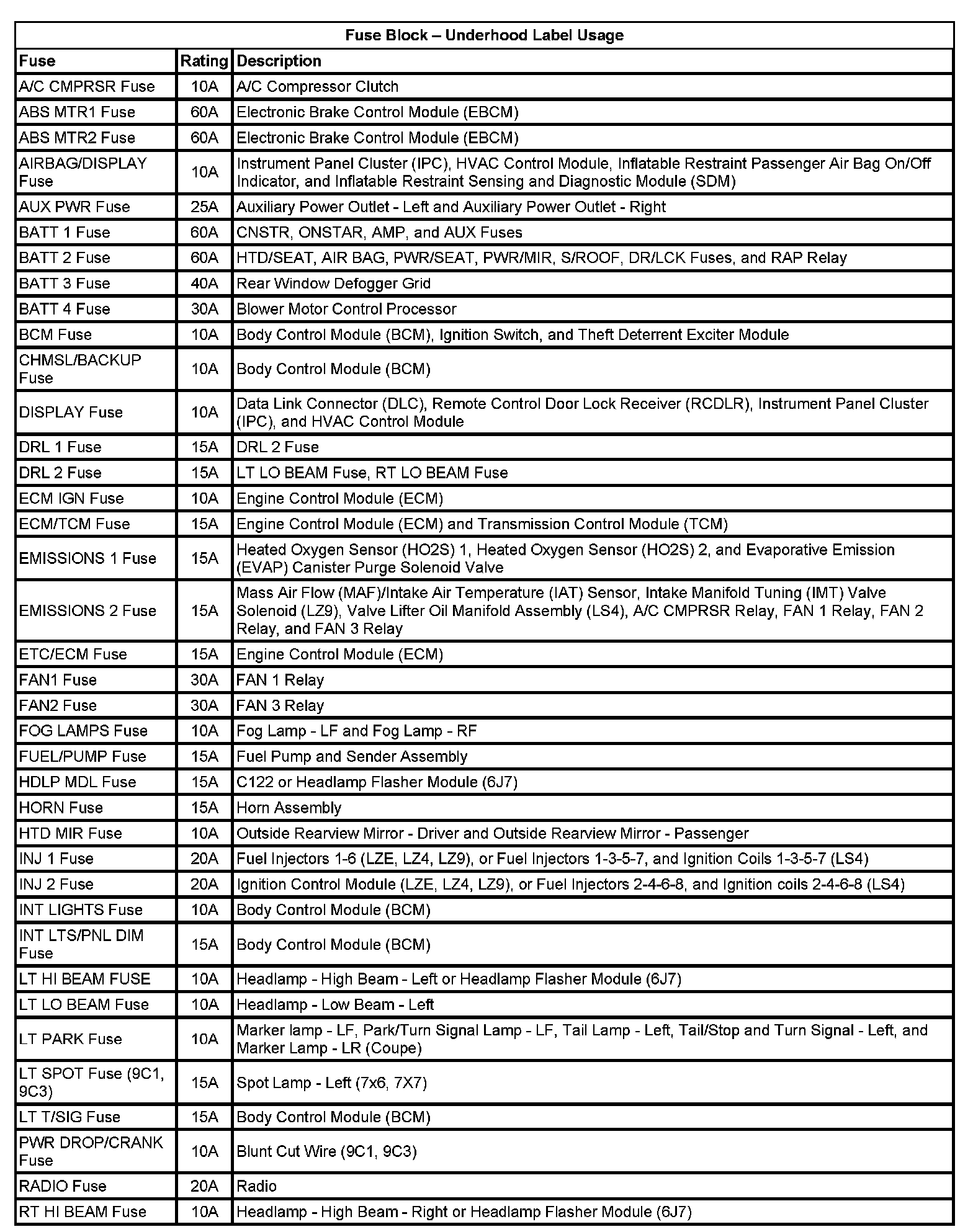

Application Table (Part 1):

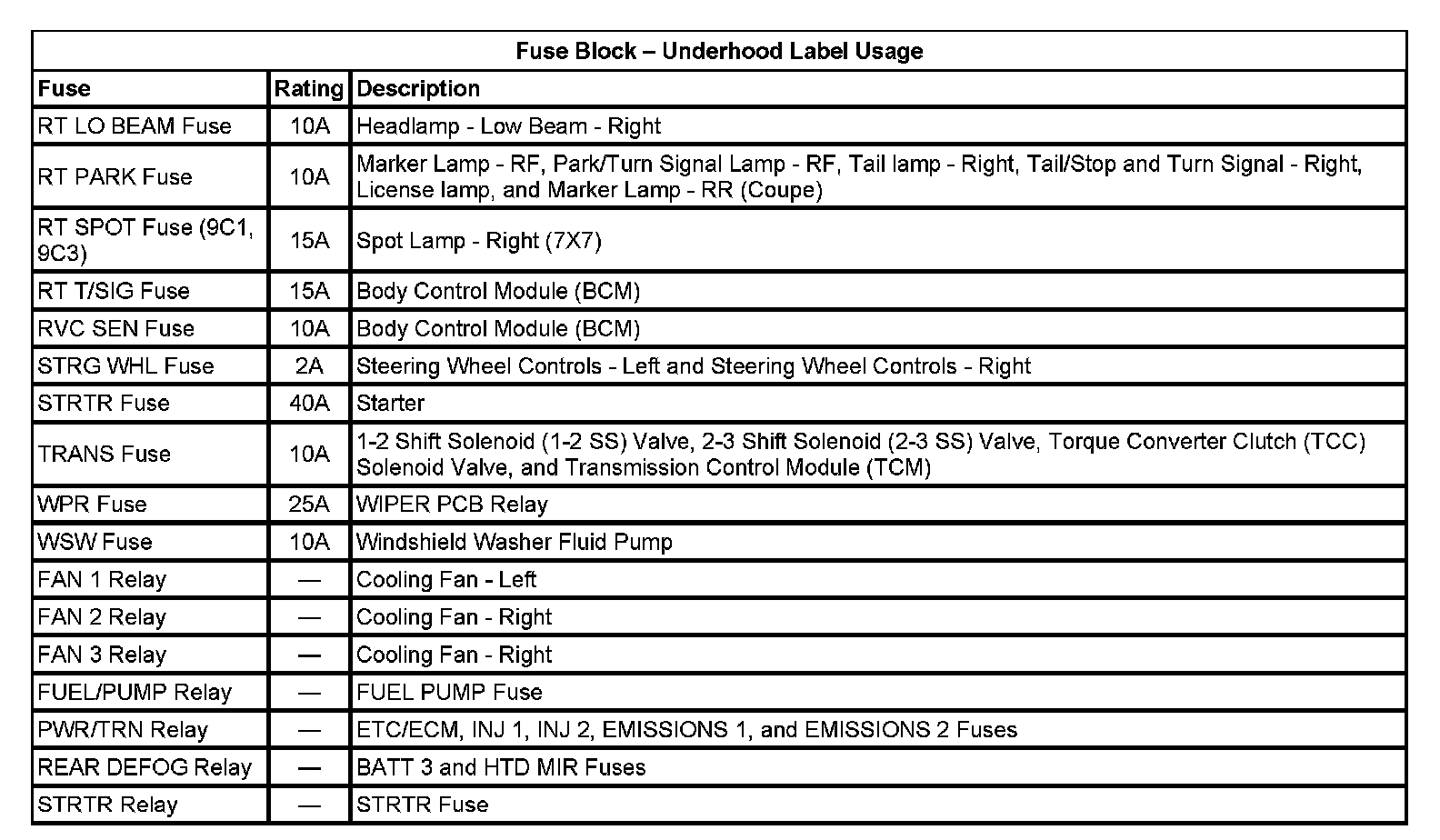

Application Table (Part 2):
Location View:
Location View:
