Home >> Chevrolet >> 2006 >> Impala V6-3.9L VIN 1 >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Locations

Control Module HVAC: Locations

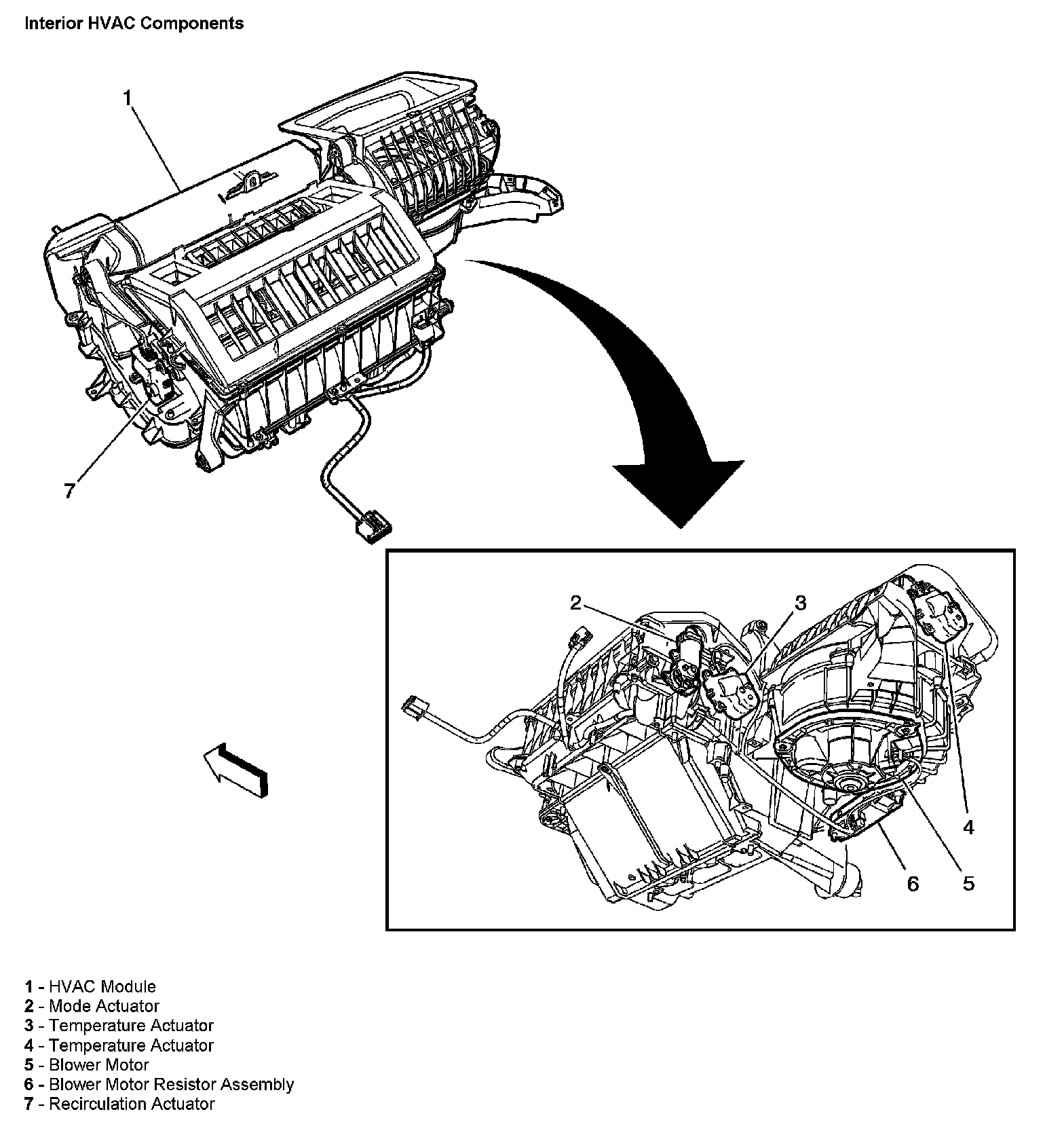

Interior HVAC Components:

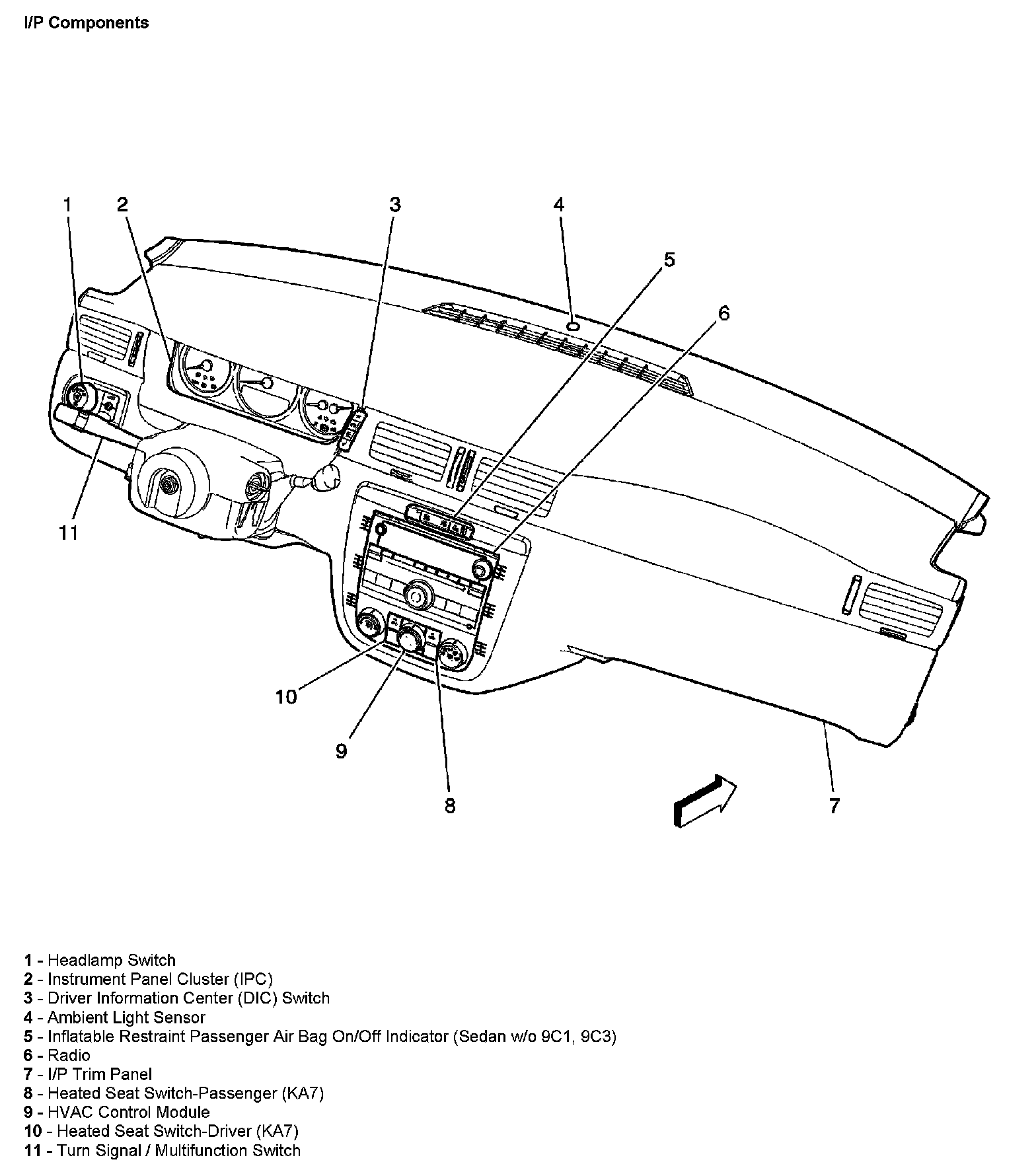

I/P Components:
