Home >> Chevrolet >> 2006 >> Impala V6-3.9L VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC >> HVAC Control Module C1

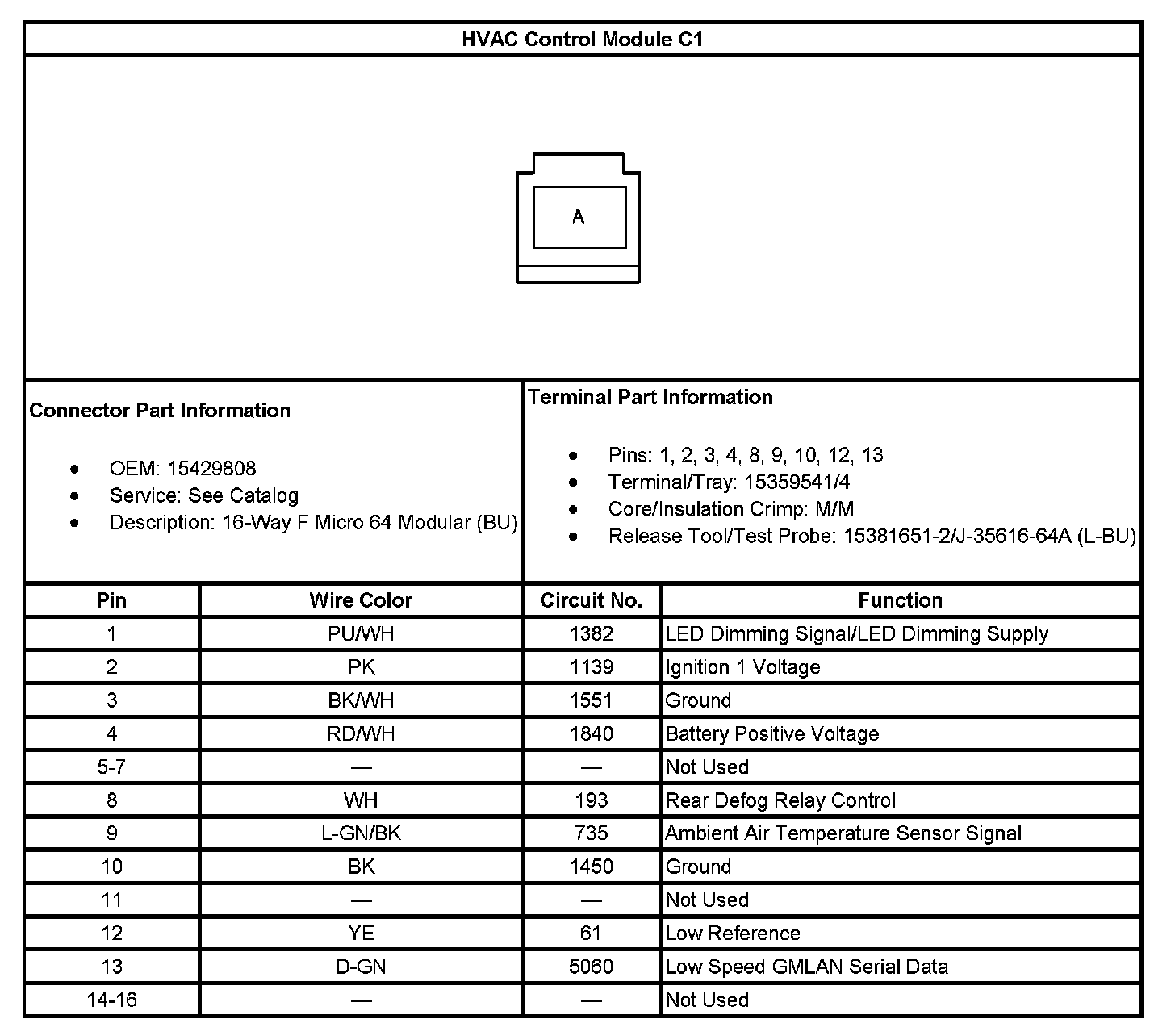

HVAC Control Module C1

HVAC Control Module C1:
