lemon-mirror
:
Home
>>
Chevrolet
>>
2006
>>
Impala V6-3.9L VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Components

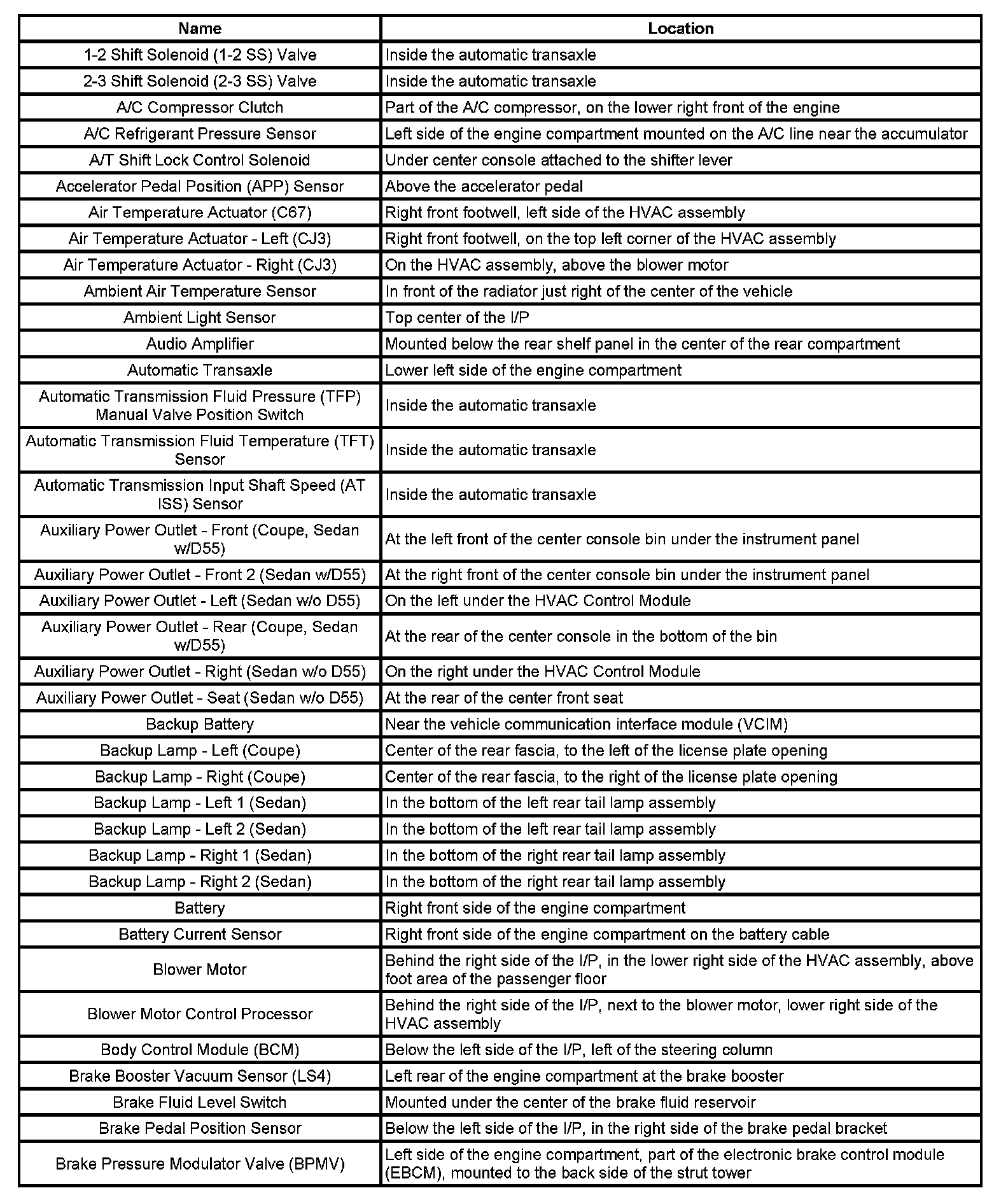

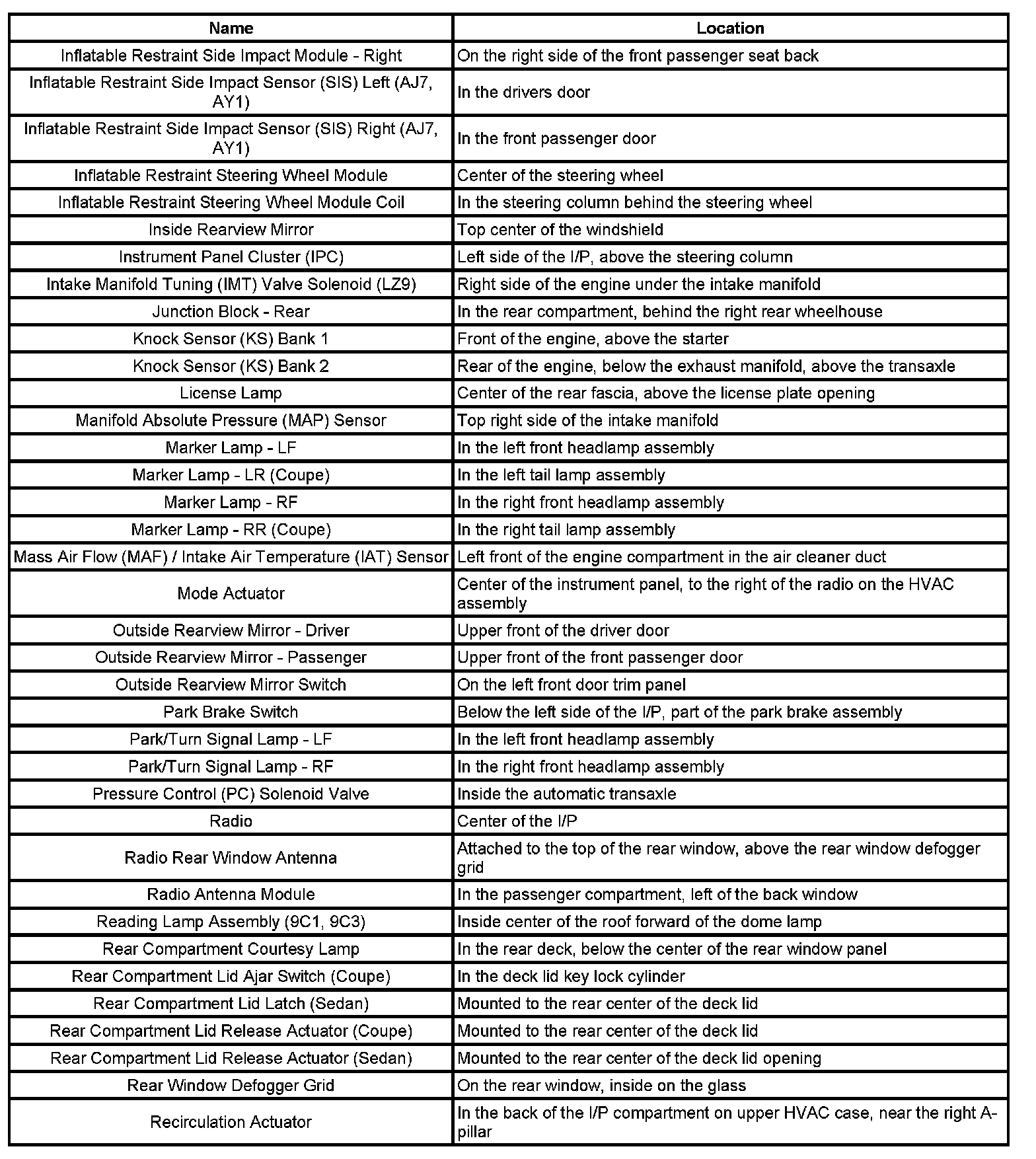

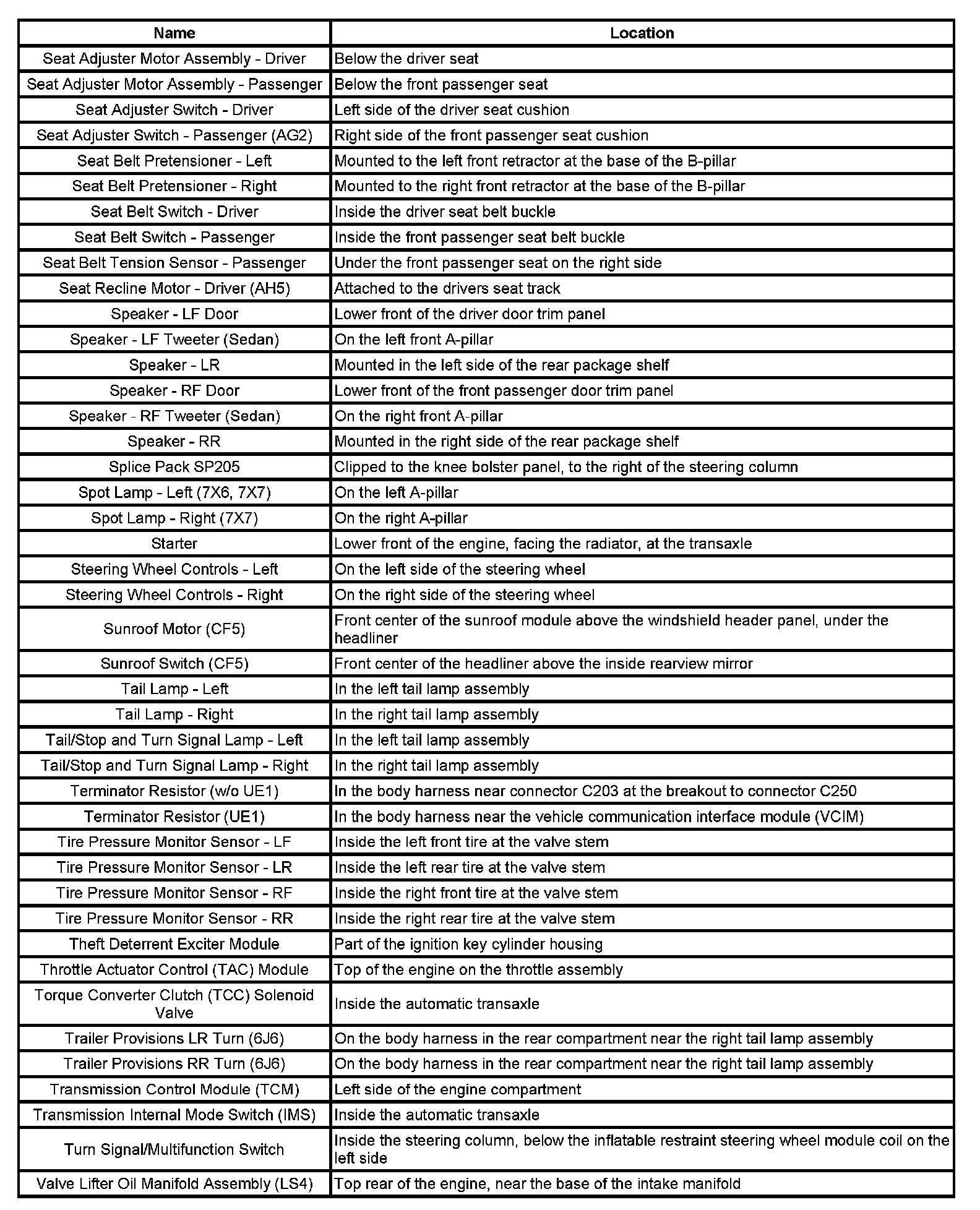

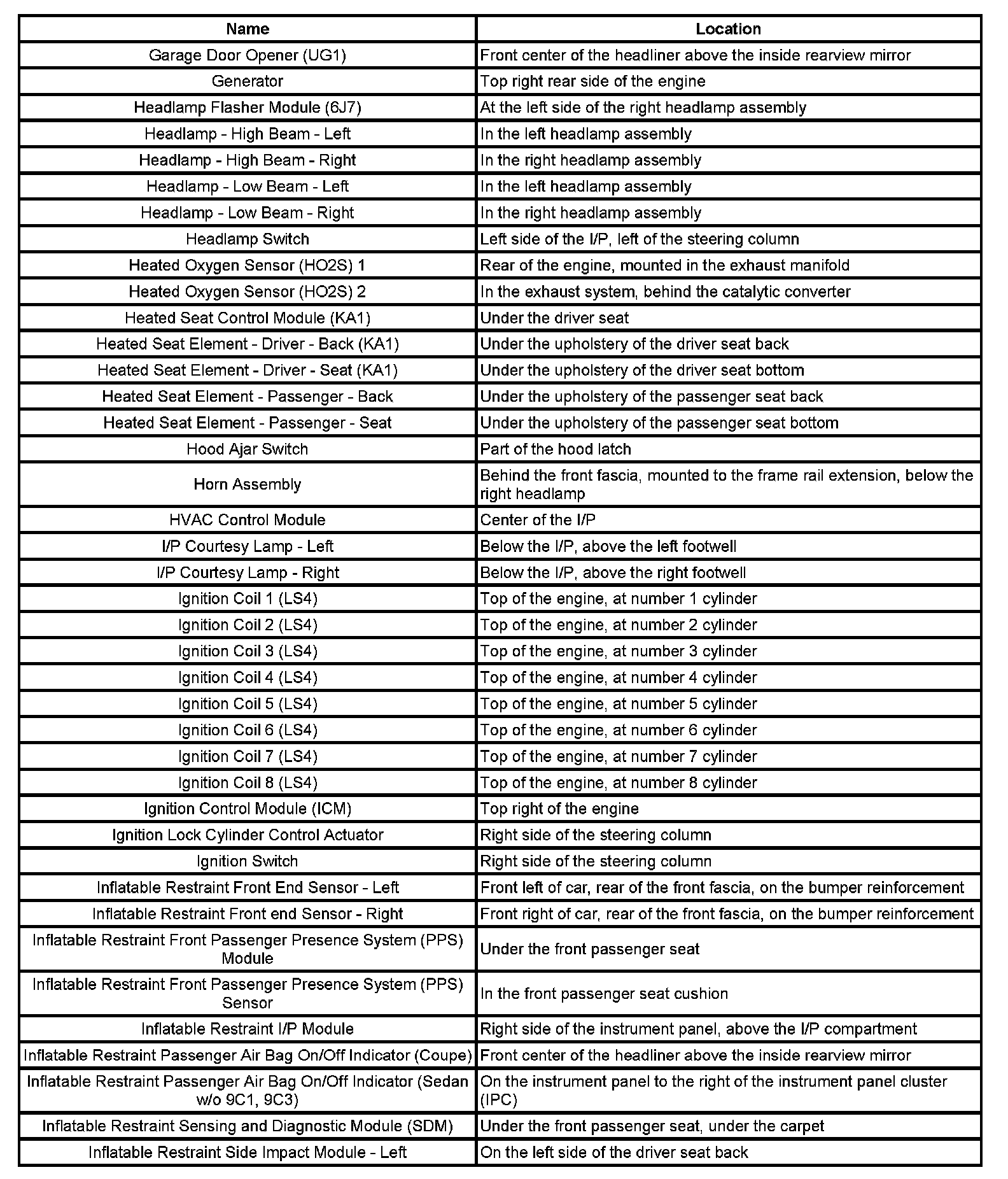

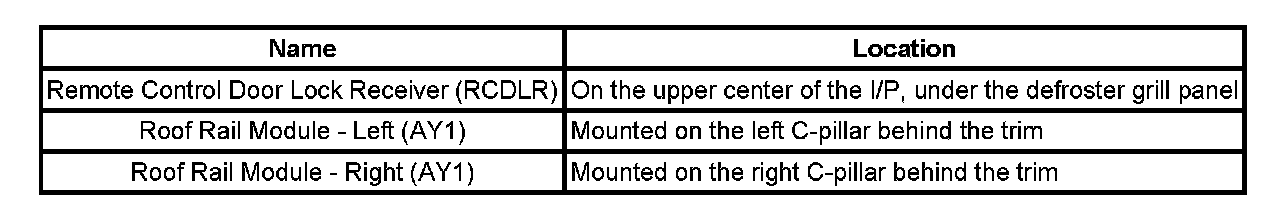

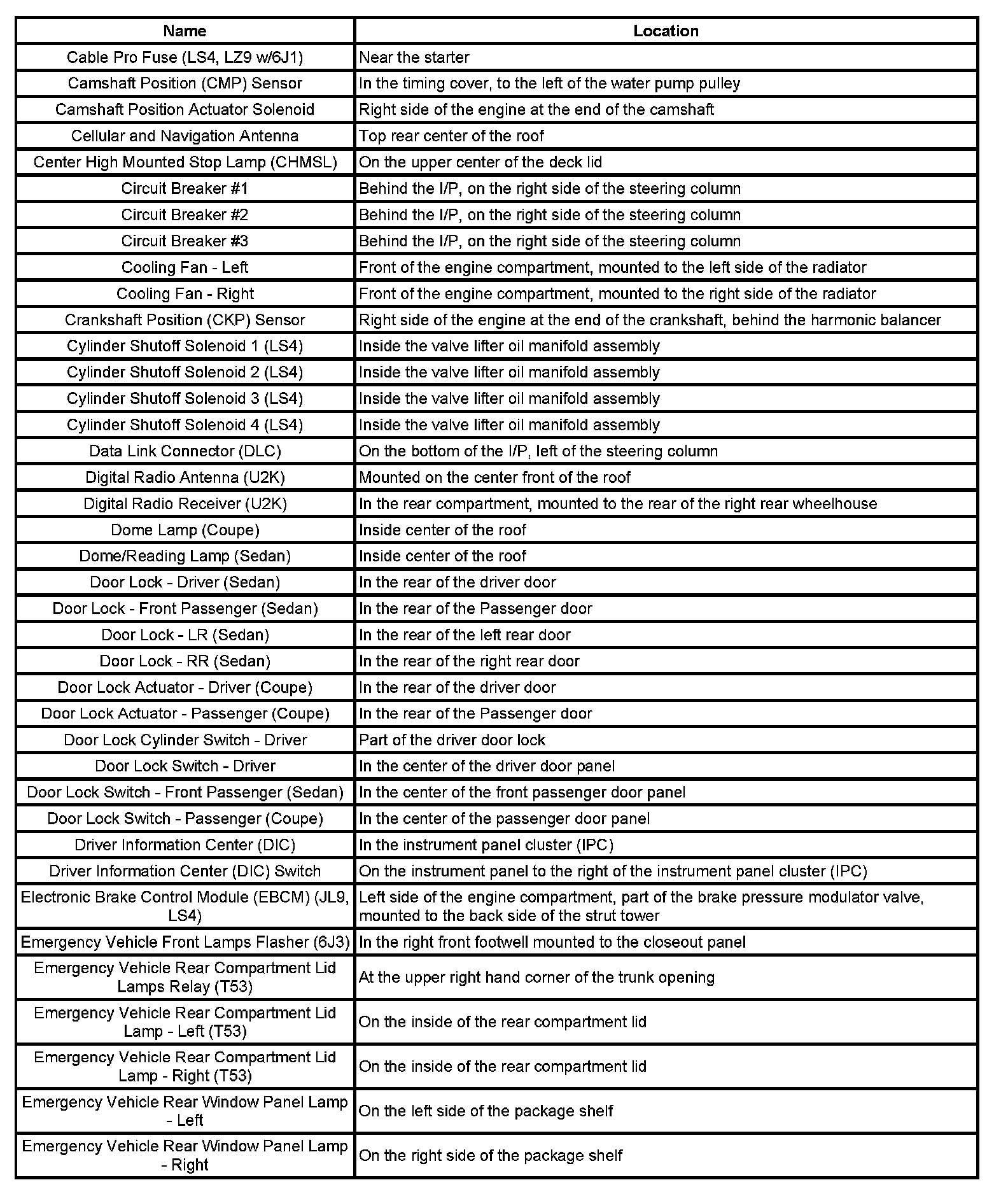

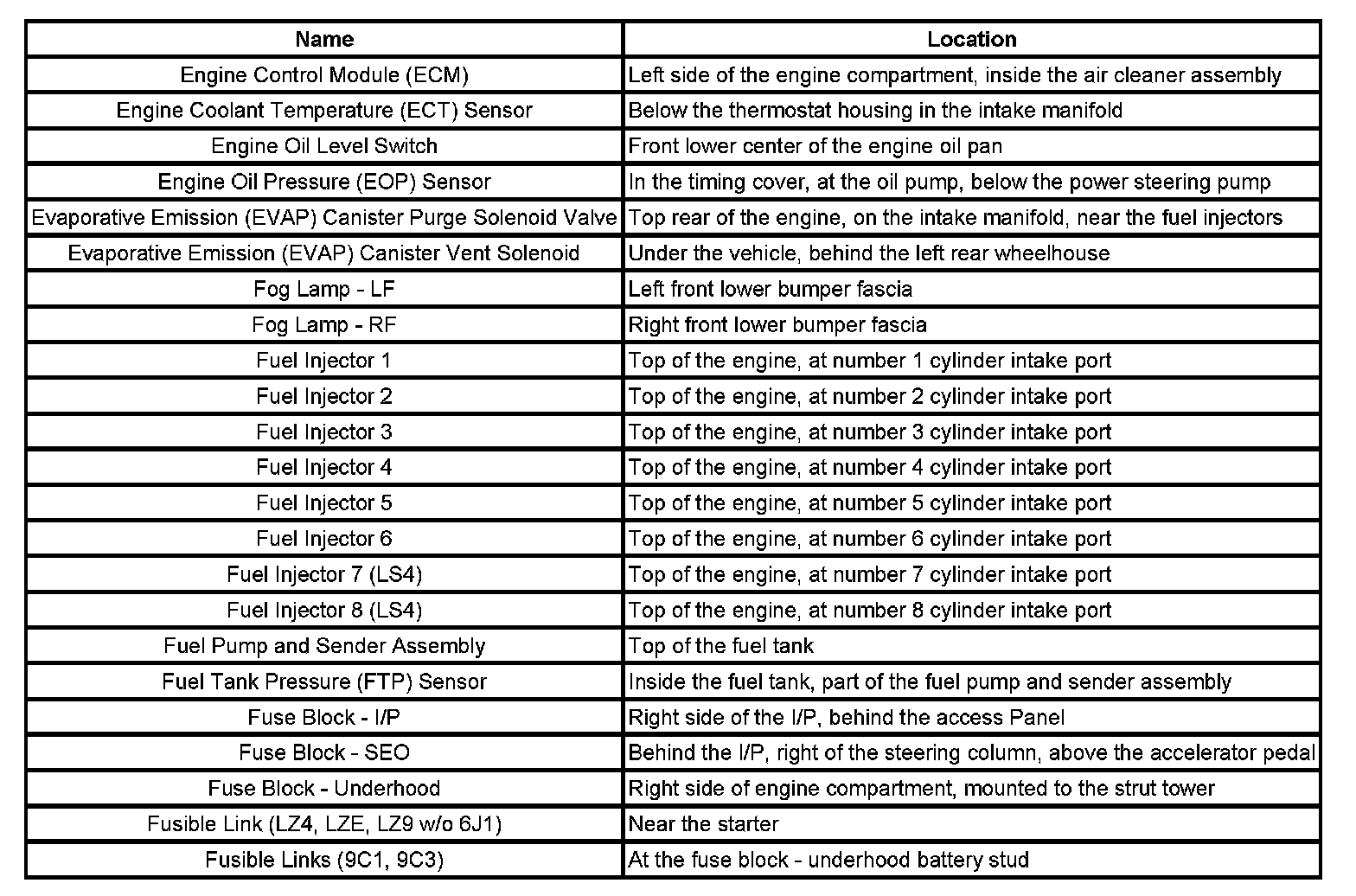

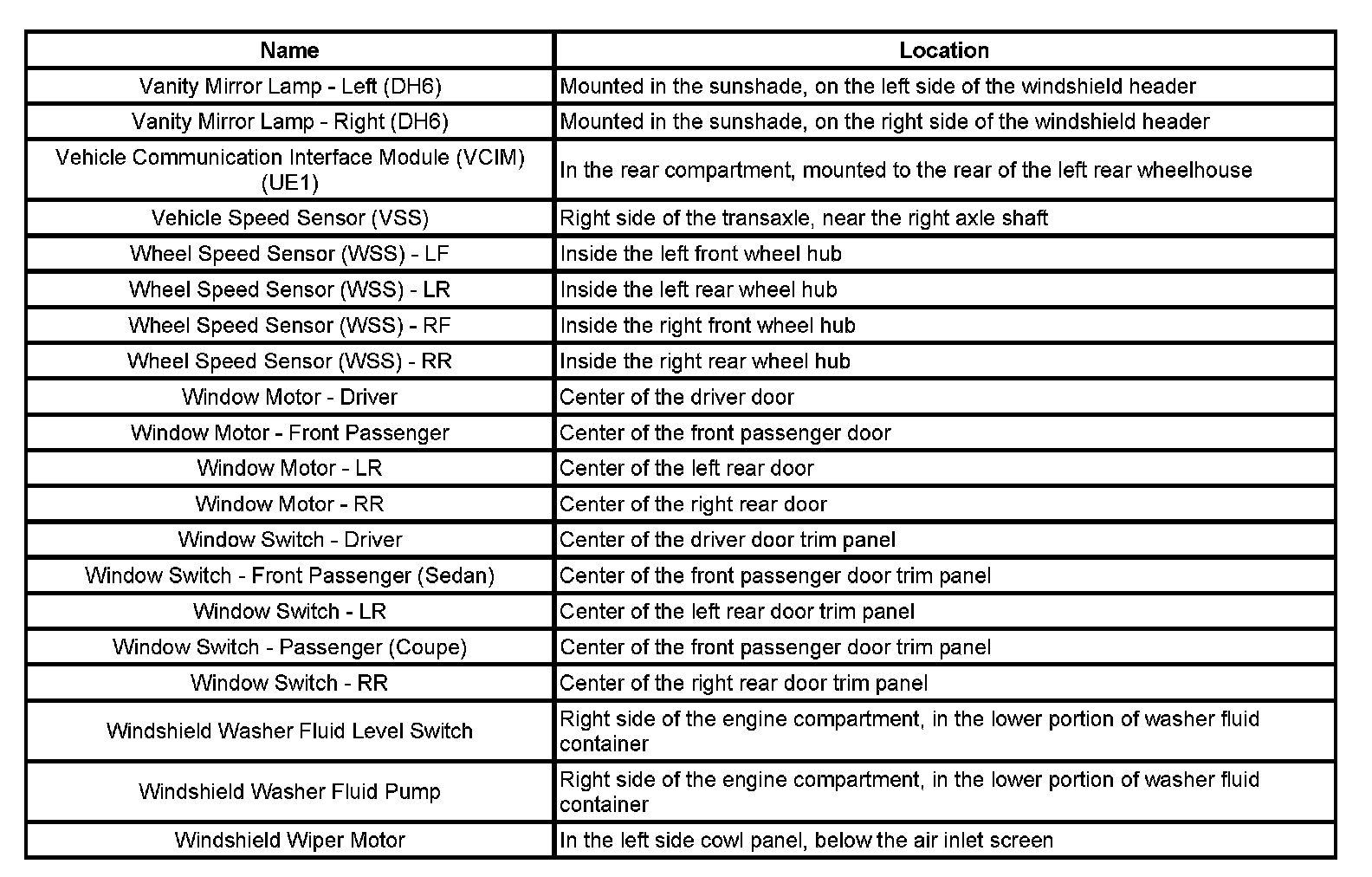

Components
1-2 Sh - Br:
Ca - Em:
En - Fu:
Ga - In:
In - Re:
Re - Ro:
Se - Va:
Va - Wi:
