Ignition Control Module

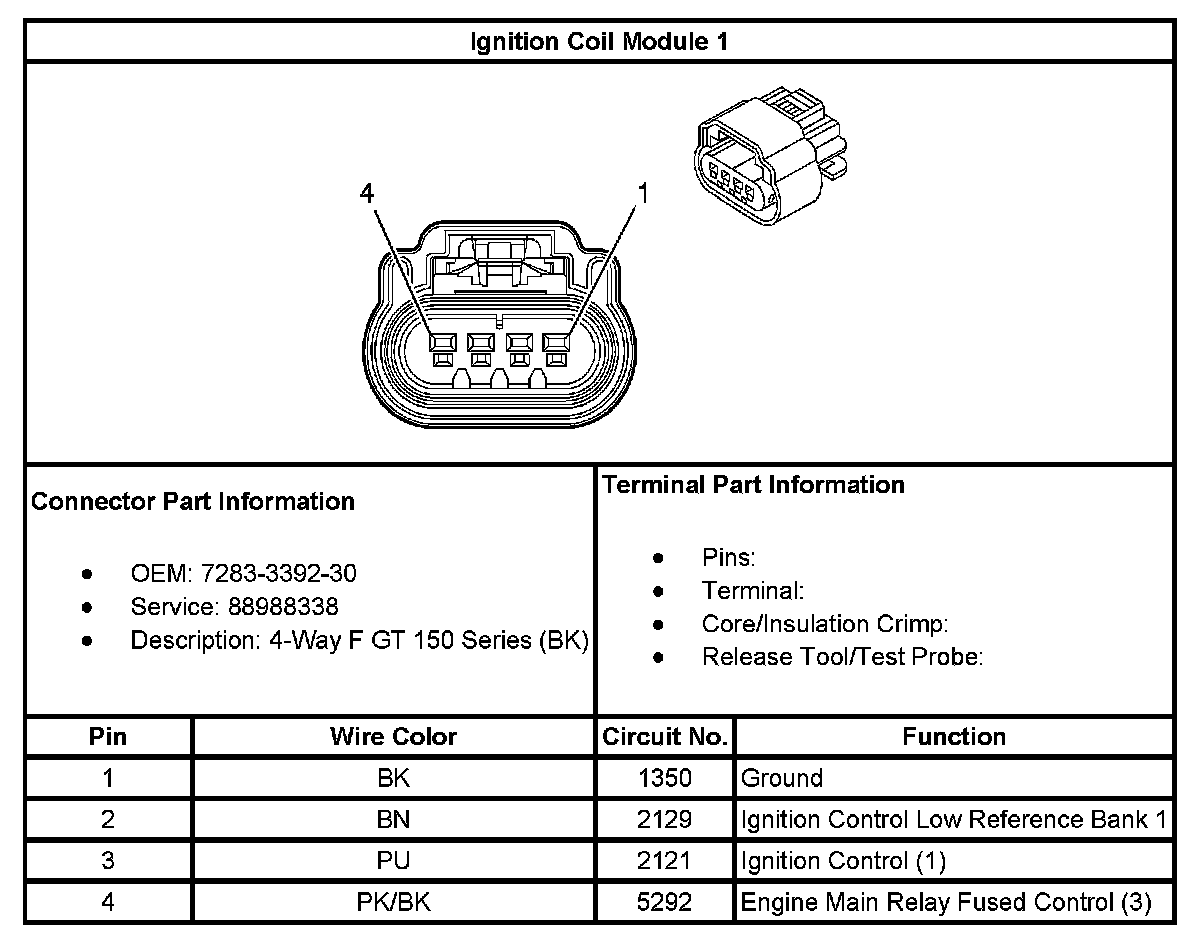

Ignition Coil Module 1:

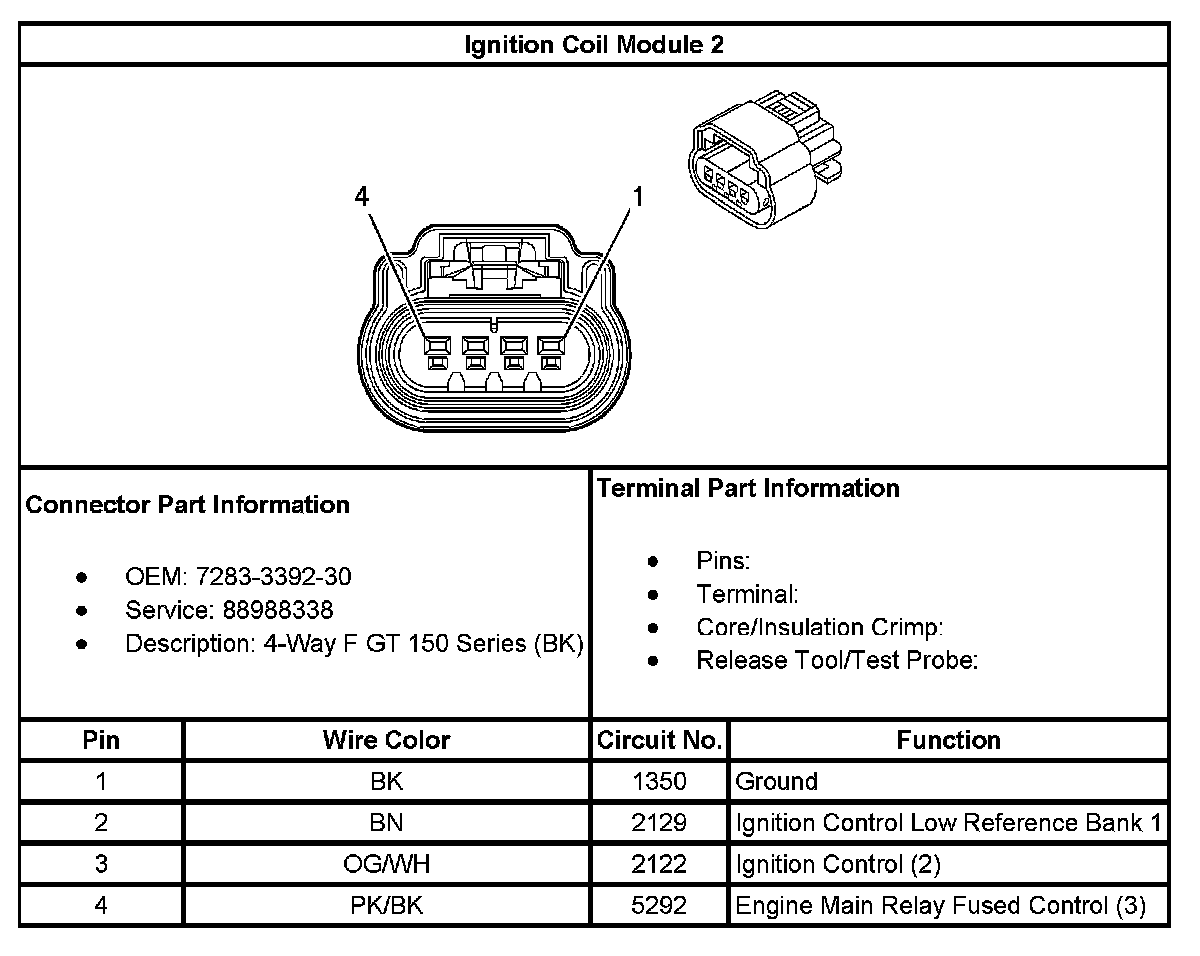

Ignition Coil Module 2:

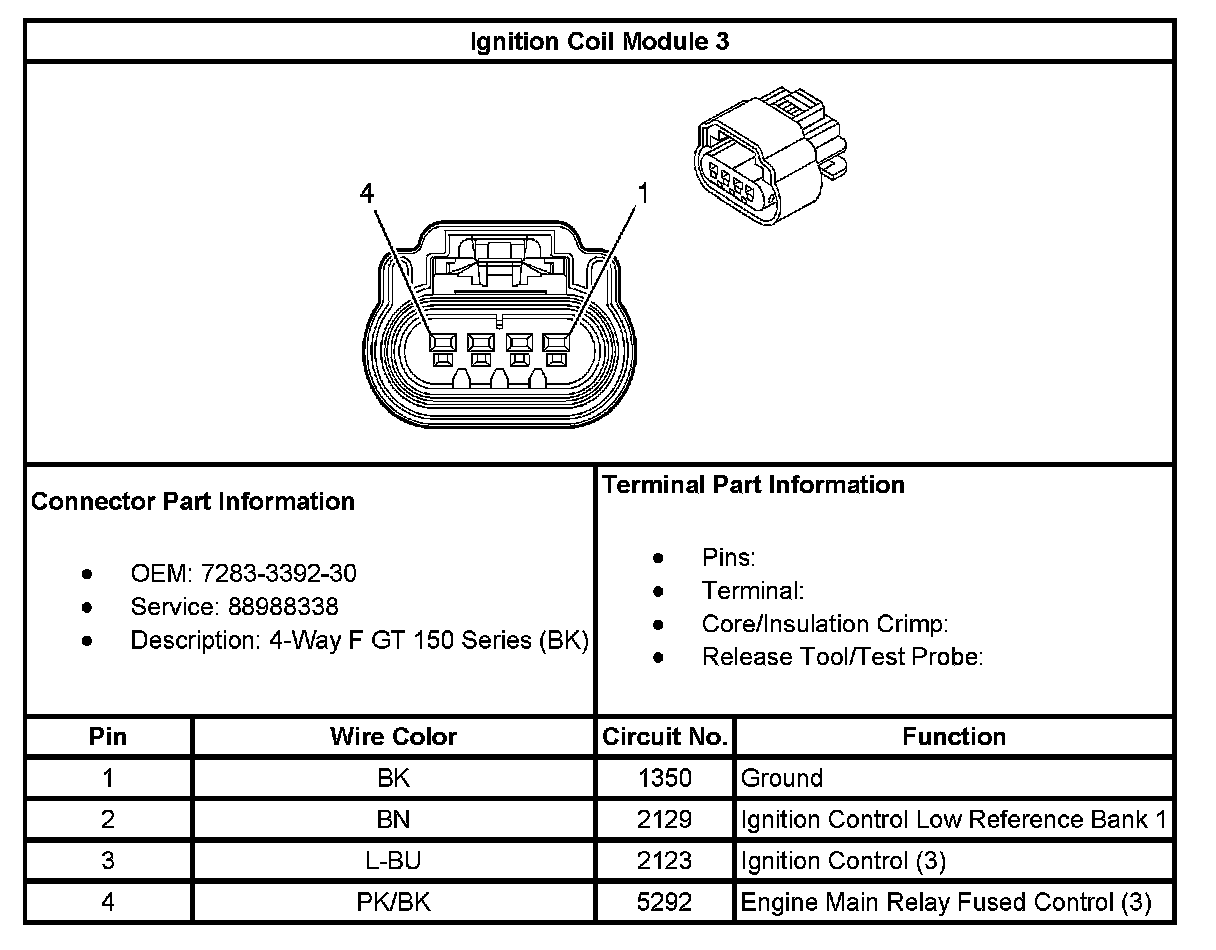

Ignition Coil Module 3:

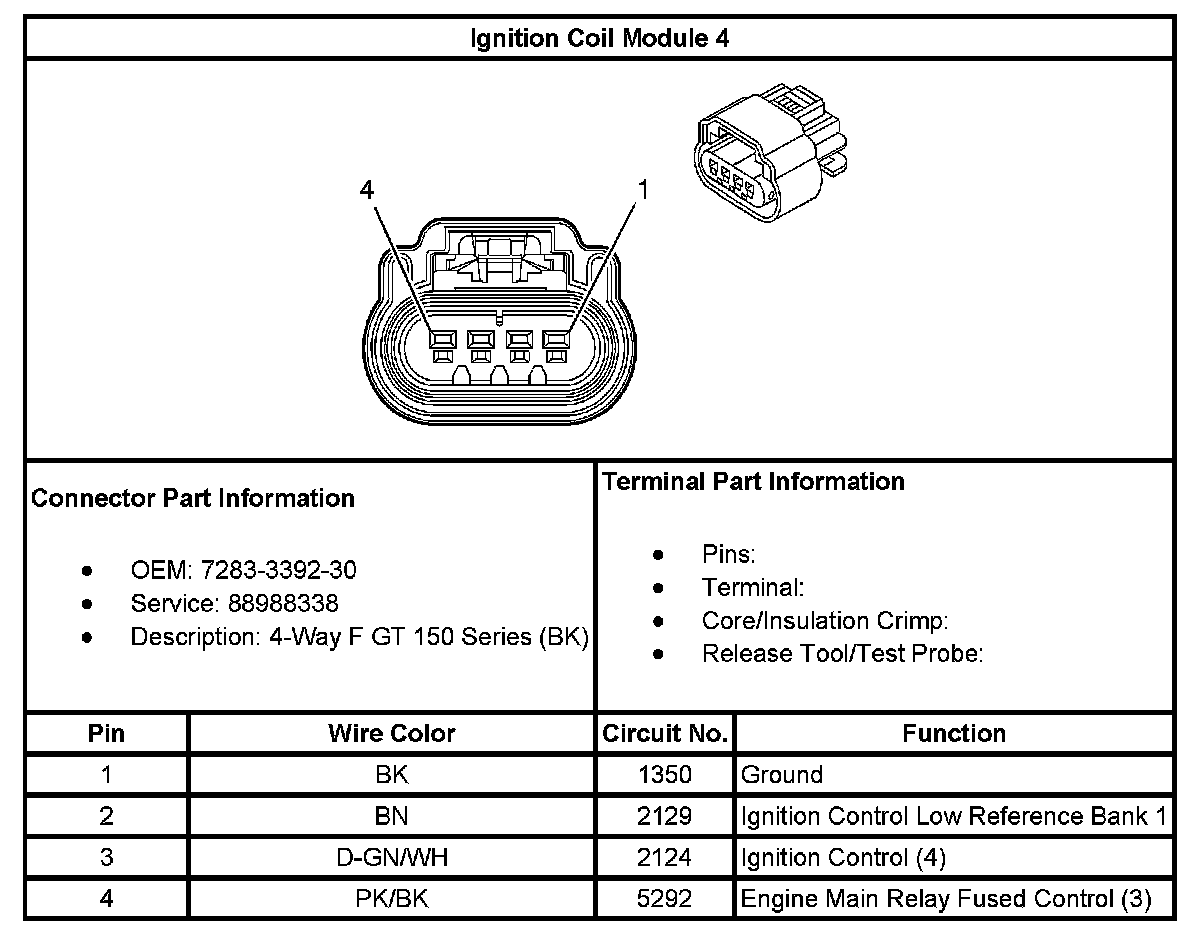

Ignition Coil Module 4:
