Air Flow Meter/Sensor
>>
Diagrams
>>
Connector Views
Connector Views

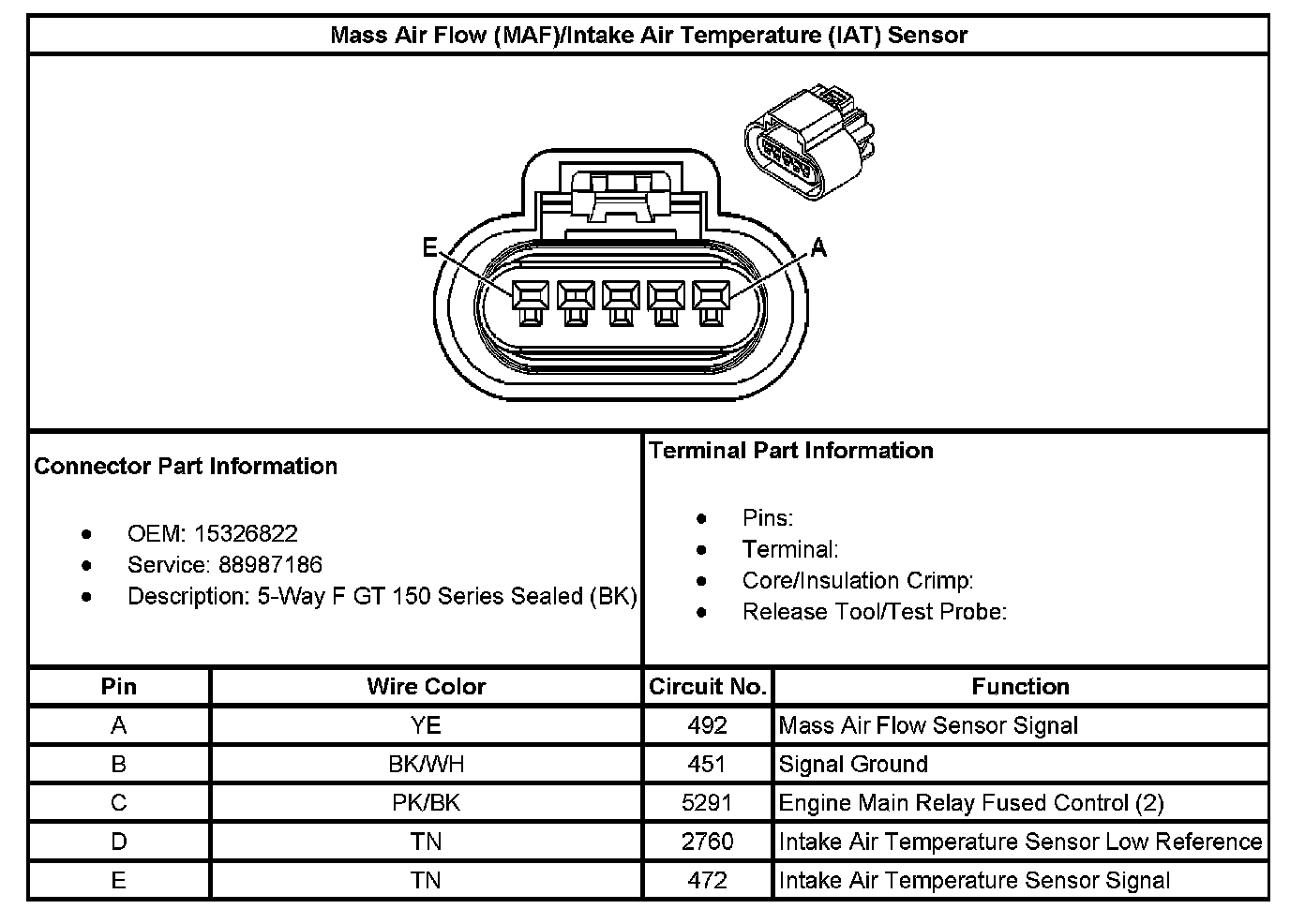

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor:
