Home >> Chevrolet >> 2006 >> HHR L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Column >> Steering Column Lock

Steering Column Lock

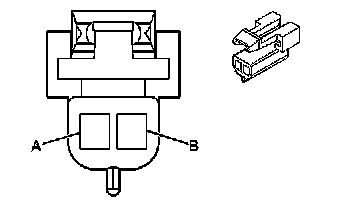

Steering Wheel and Column Connector End Views

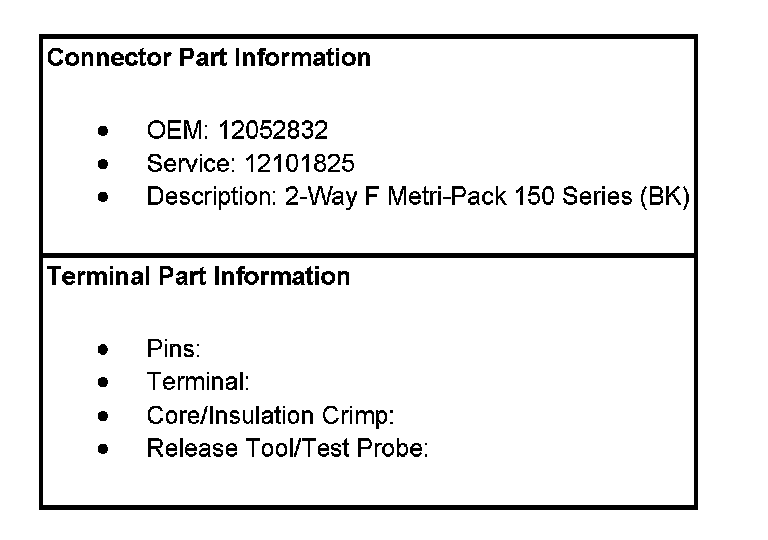

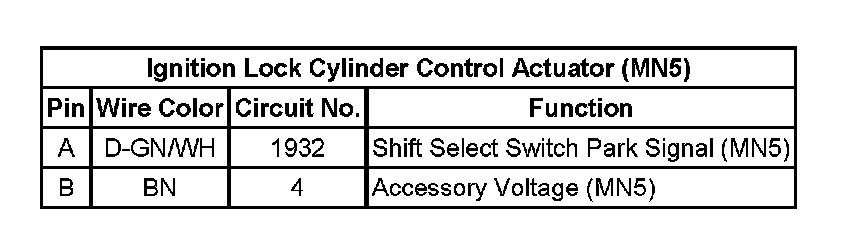

Ignition Lock Cylinder Control Actuator (MN5)

A/T Shift Lock Control Solenoid:







Ignition Lock Cylinder Control Actuator (MN5):
