Power Window Switch
Power Window Switch

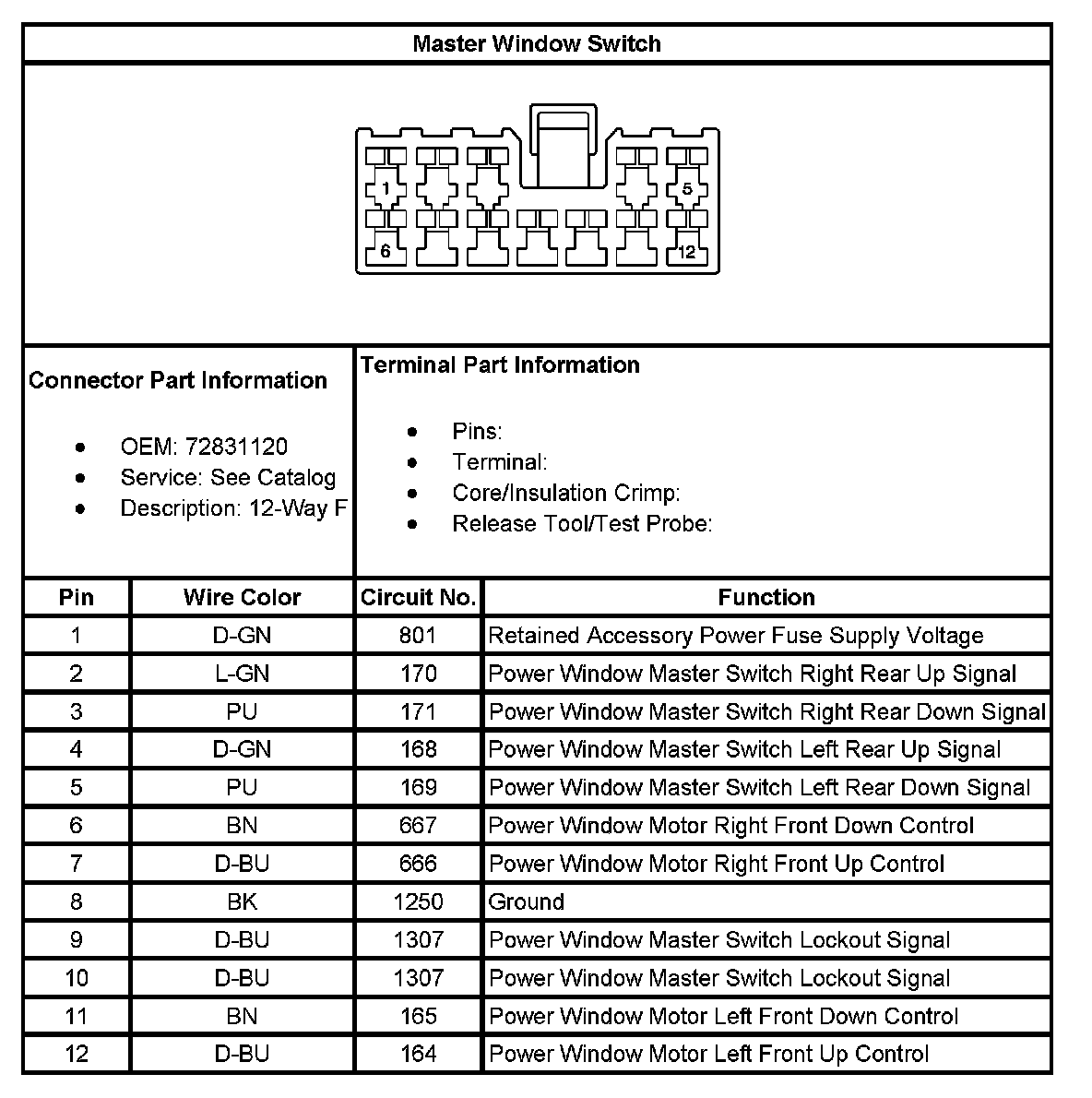

Master Window Switch:

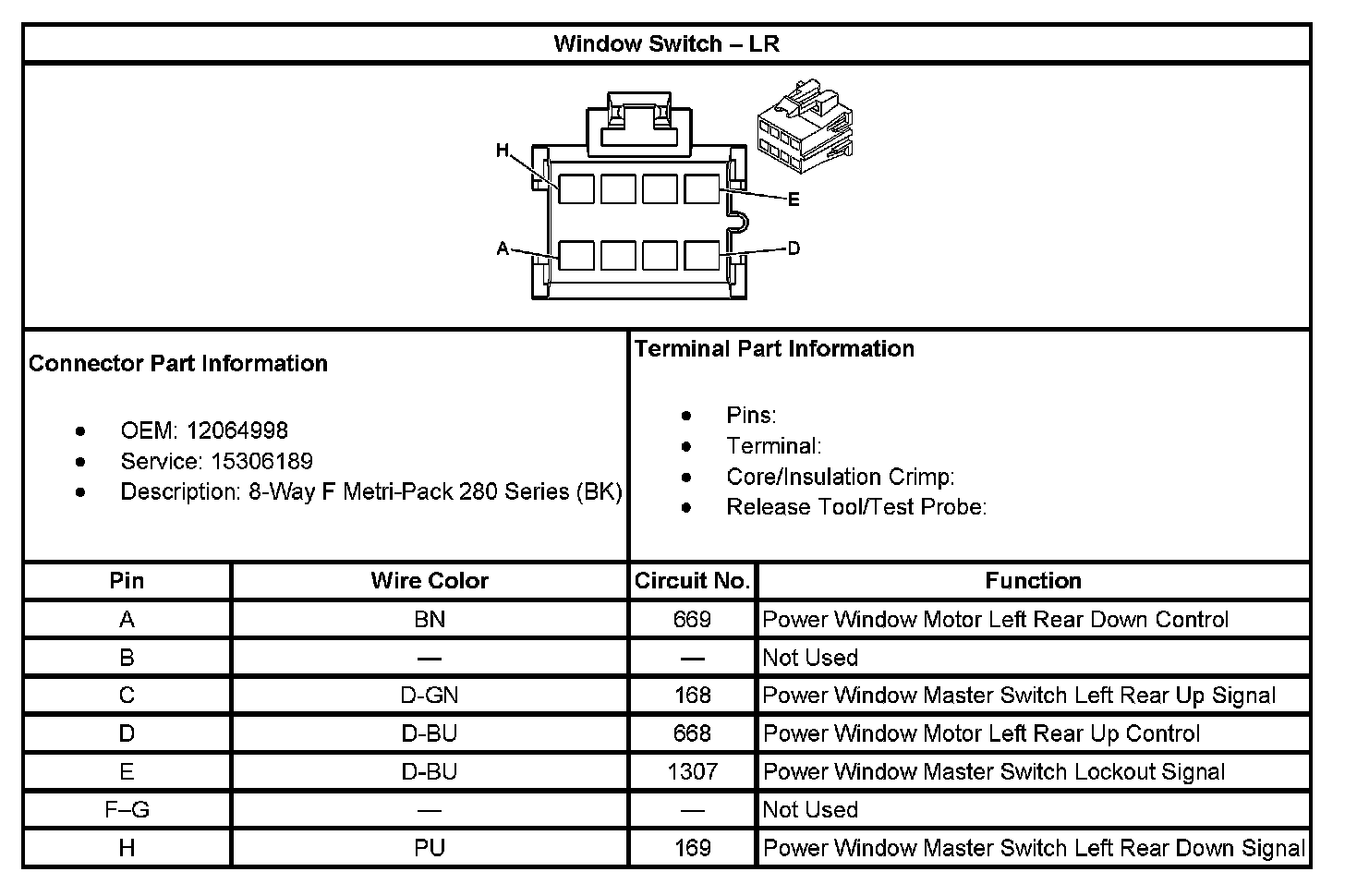

Window Switch - LR:

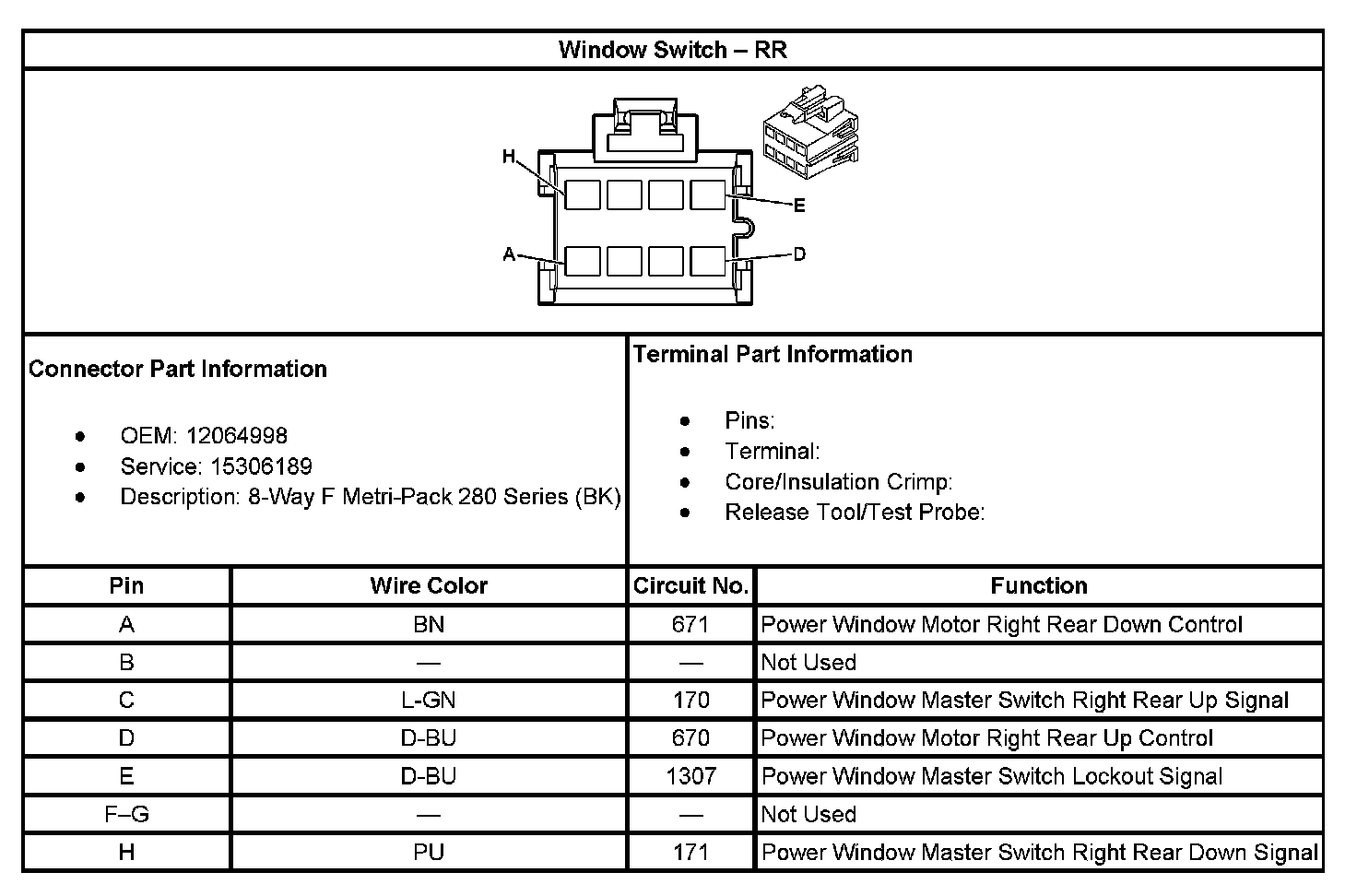

Window Switch - RR:
