Body Control Module (BCM) - C2

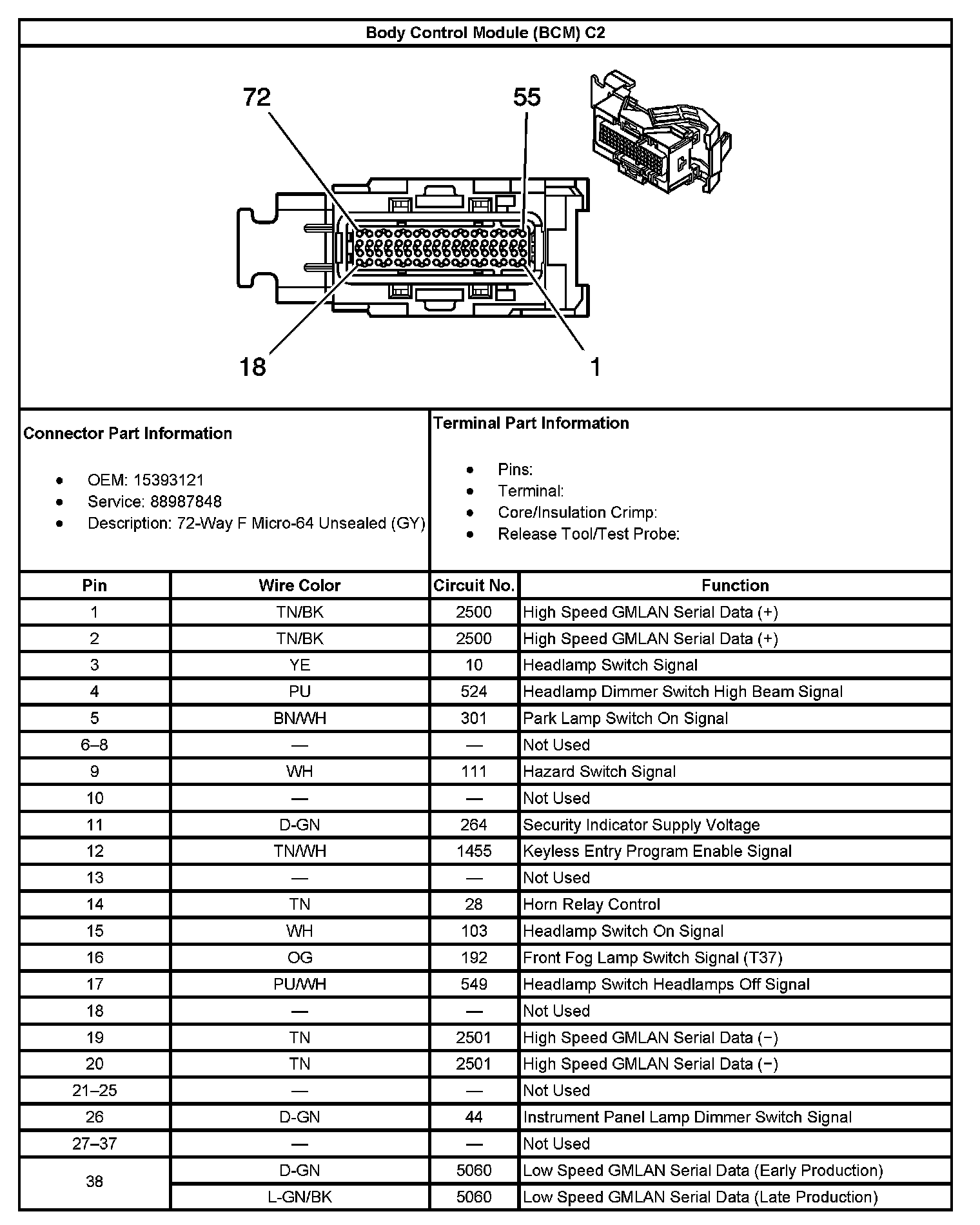

Body Control Module (BCM) C2 (Part 1):

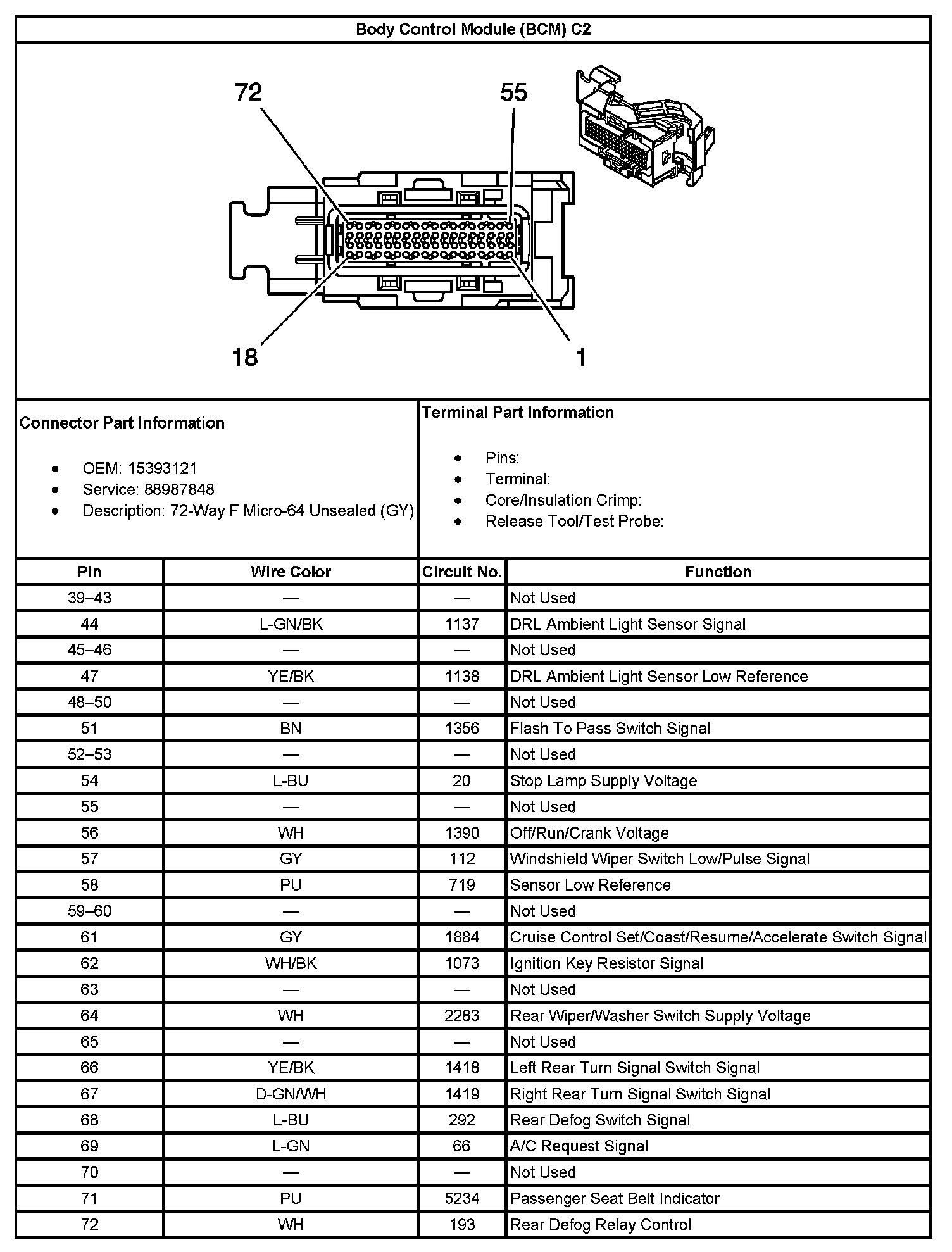

Body Control Module (BCM) C2 (Part 2):
