Amplifier, Sound System
Amplifier, Sound System

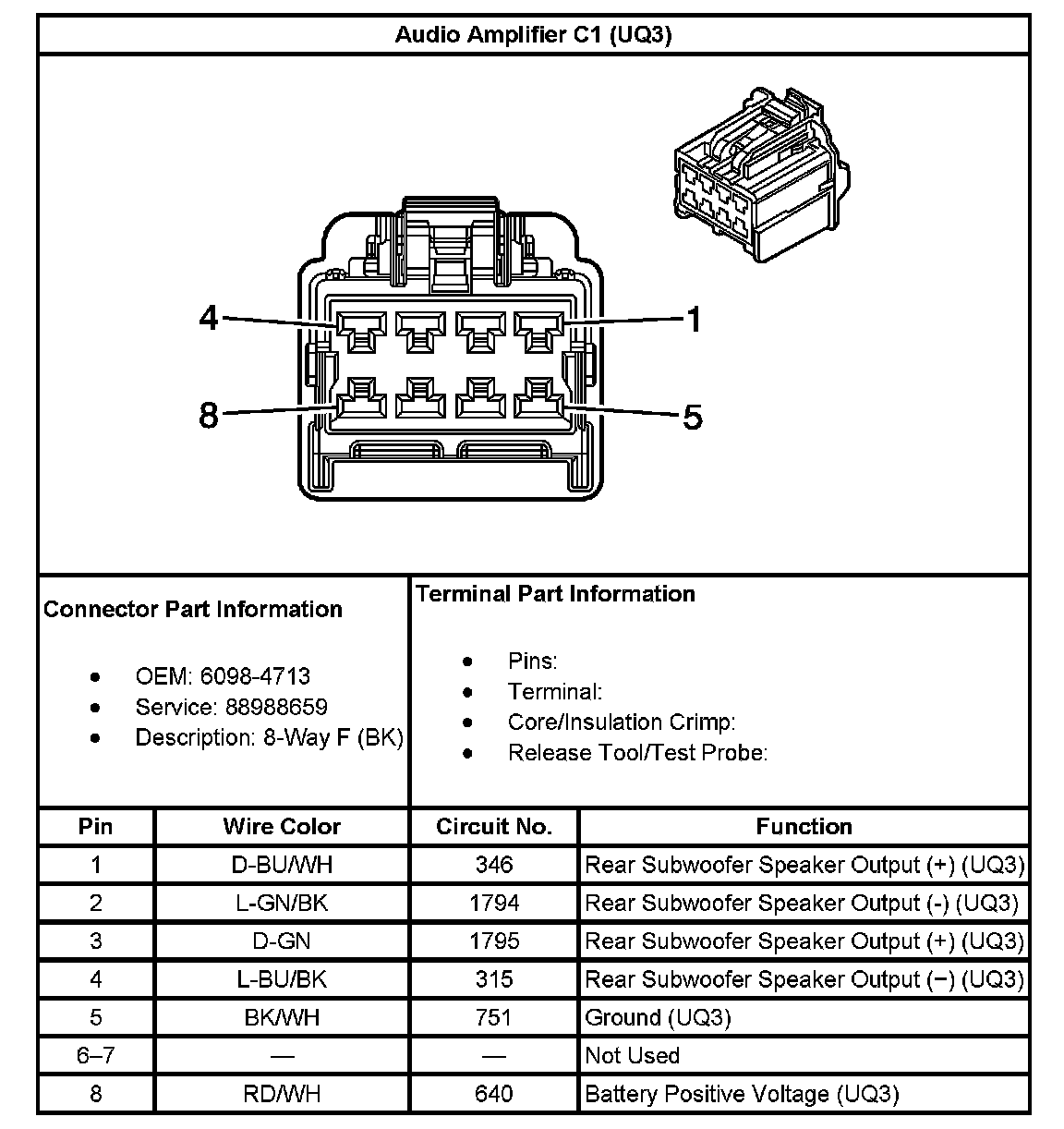

Audio Amplifier C1 (With RPO Code UQ3):

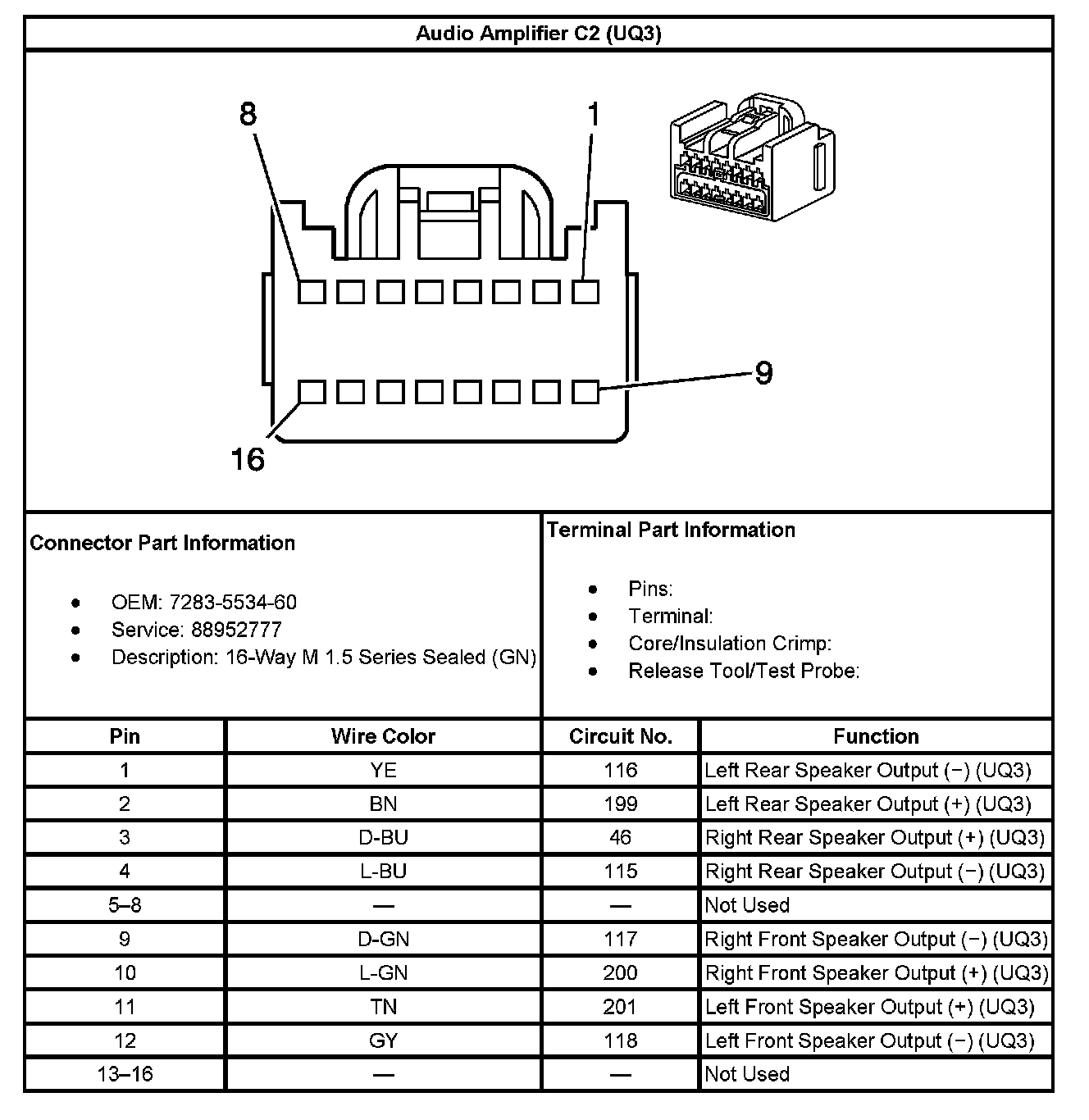

Audio Amplifier C2 (With RPO Code UQ3):

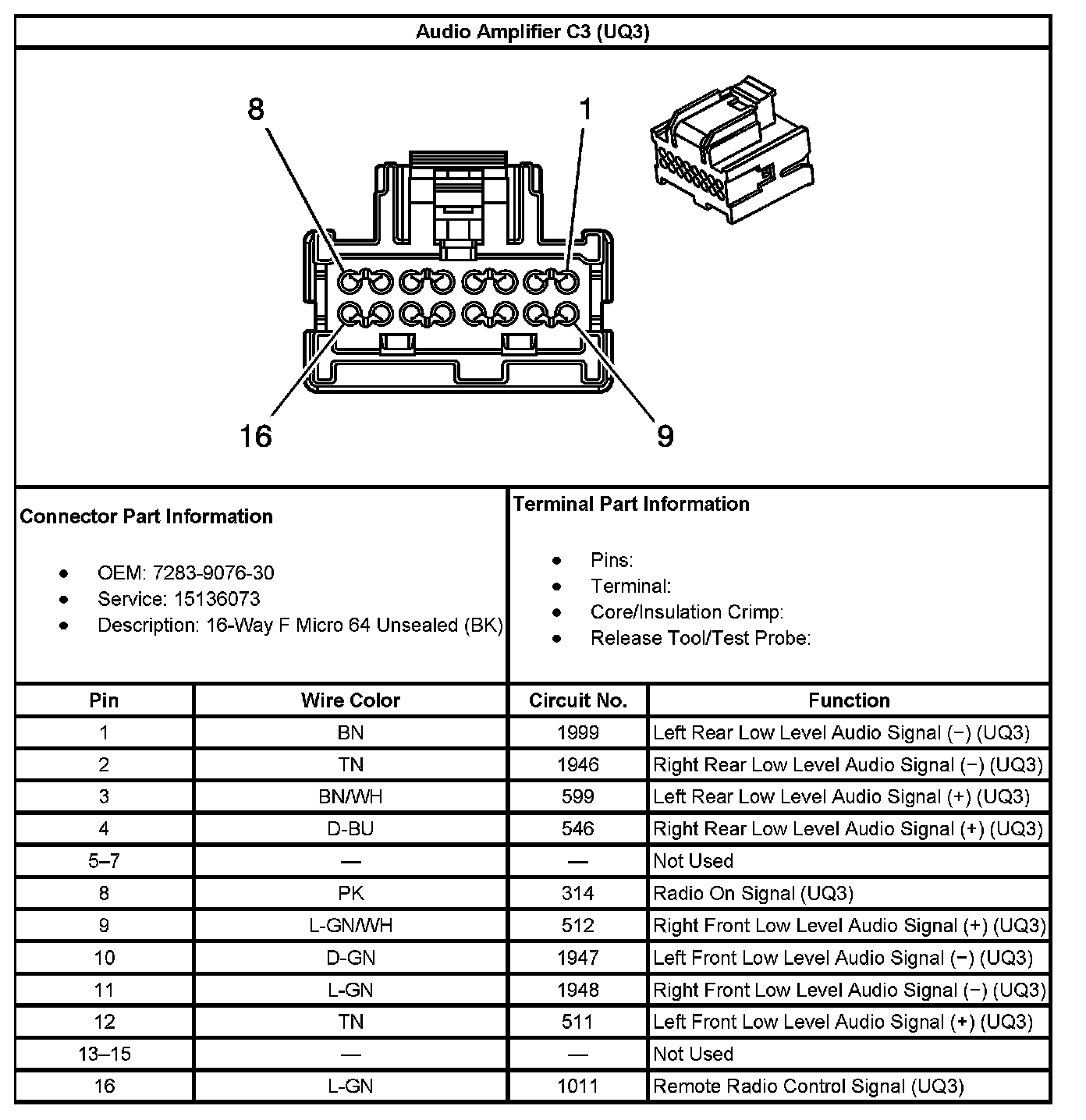

Audio Amplifier C3 (With RPO Code UQ3):
