Air Bag
>>
Inflatable Restraint Instrument Panel Module
Inflatable Restraint Instrument Panel Module
Inflatable Restraint I/P Module C1:

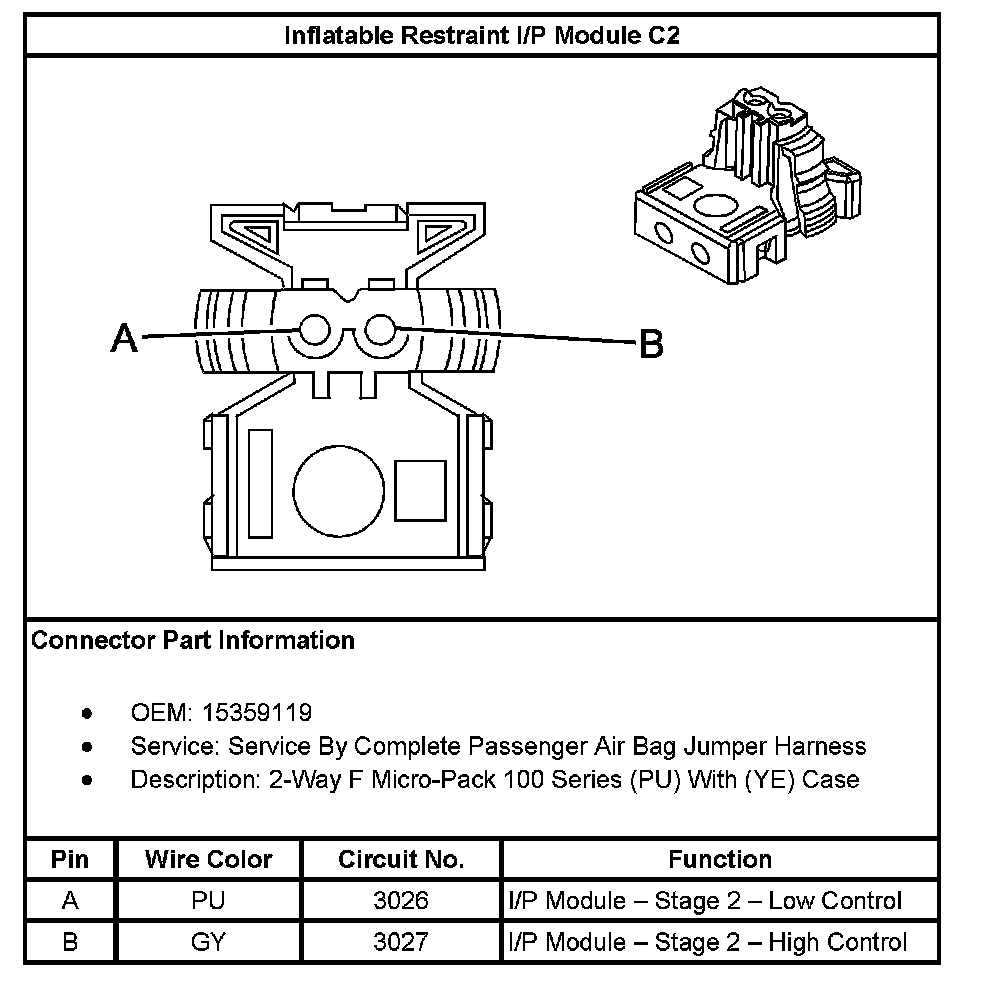

Inflatable Restraint I/P Module C2:
