Impact Sensor
>>
Inflatable Restraint Front End Discriminating Sensor
Inflatable Restraint Front End Discriminating Sensor

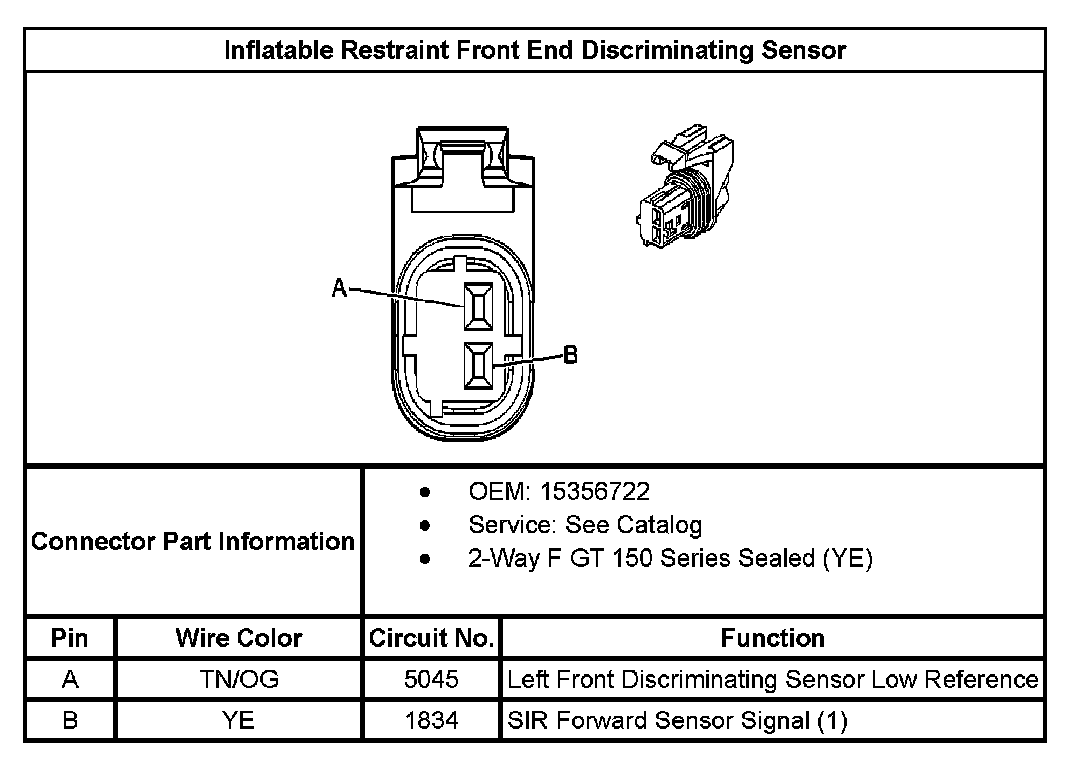

Inflatable Restraint Front End Discriminating Sensor:
