Body Control Module (BCM) - C4

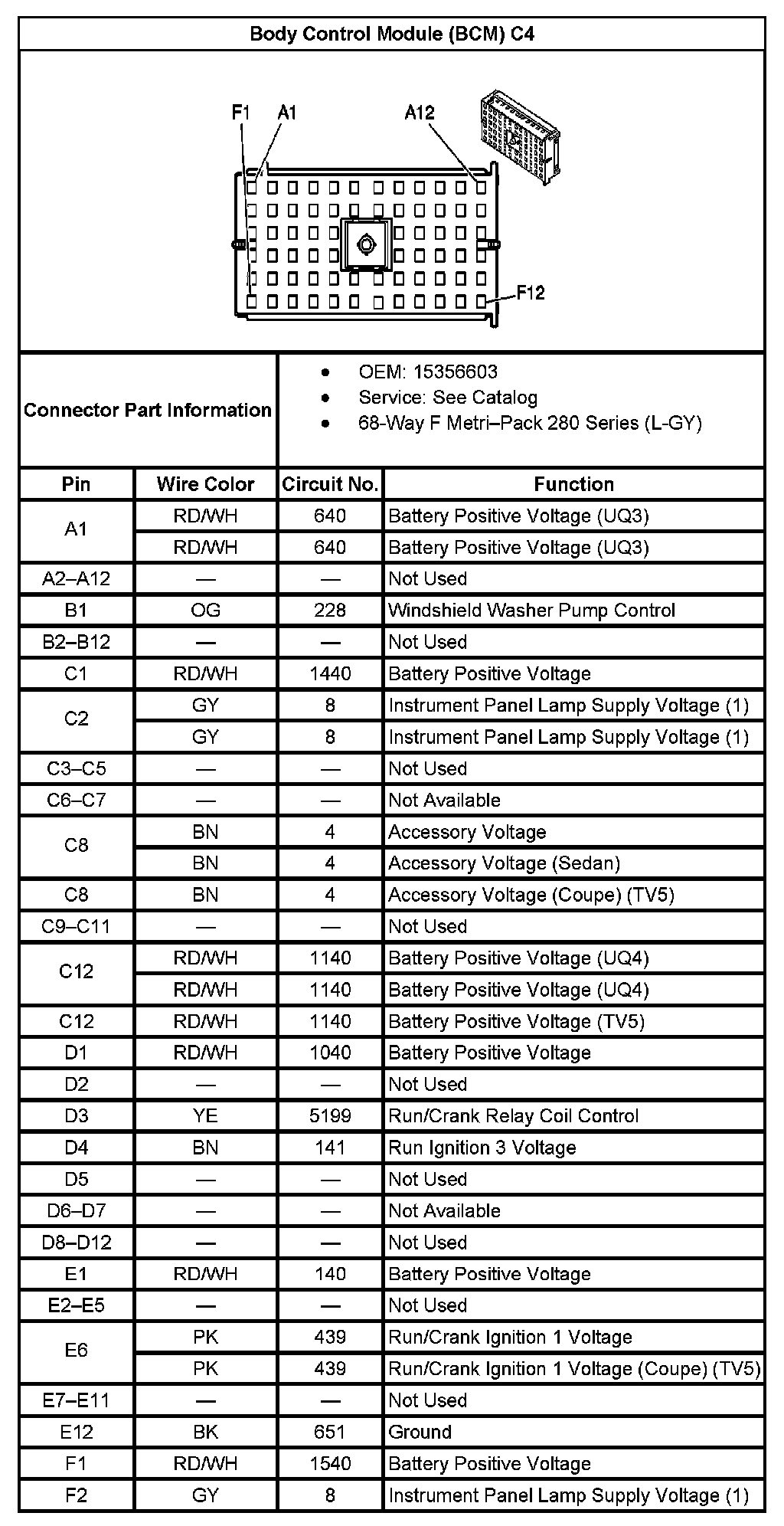

Body Control Module (BCM) C4 (Part 1):

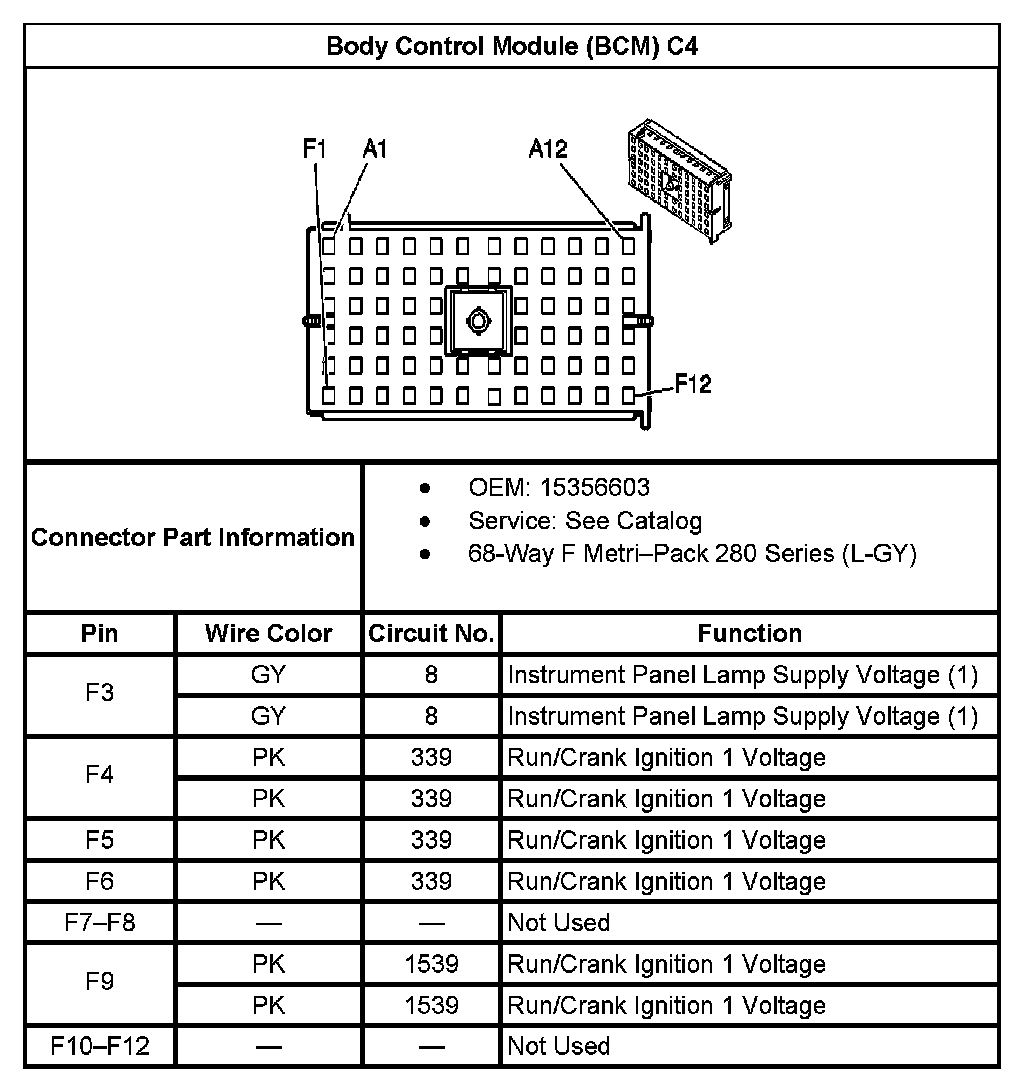

Body Control Module (BCM) C4 (Part 2):
