Scan Tool Data List - Antitheft System

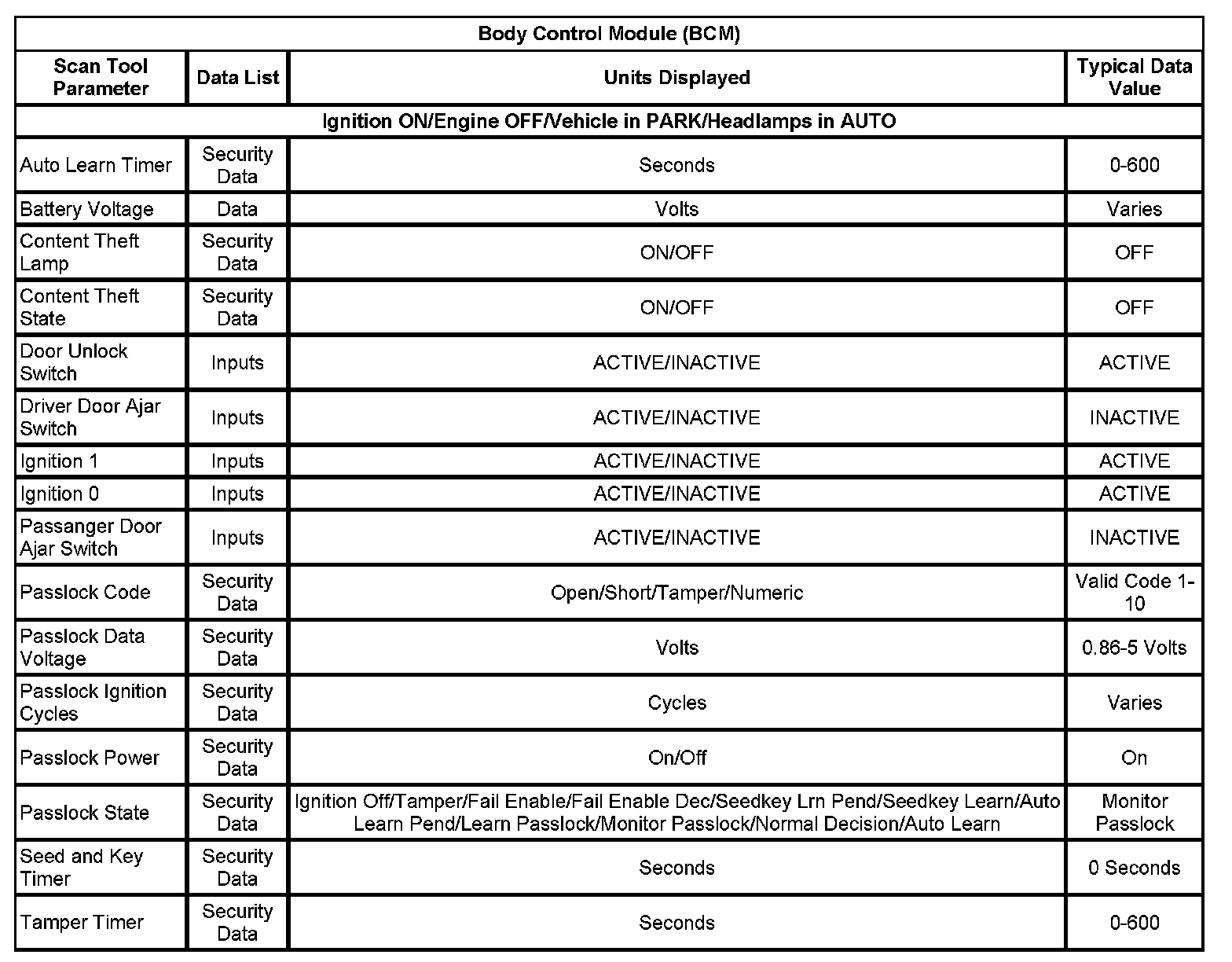

Body Control Module (BCM):

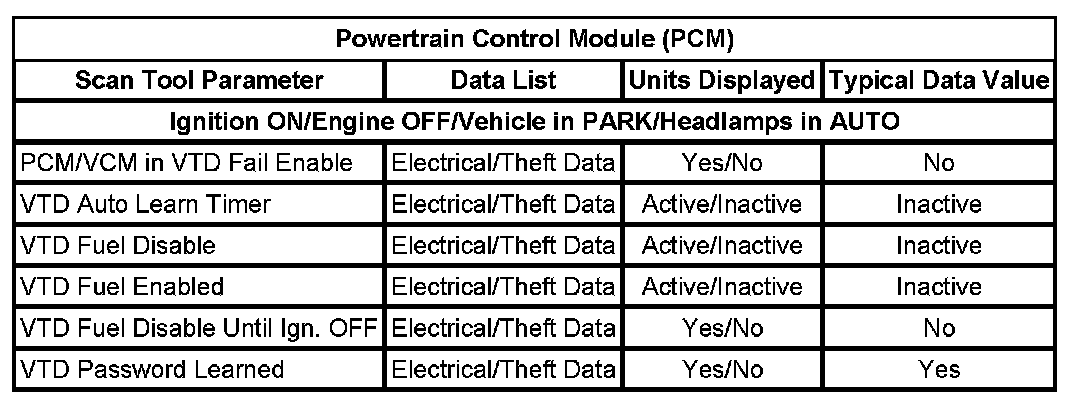

Powertrain Control Module (PCM):

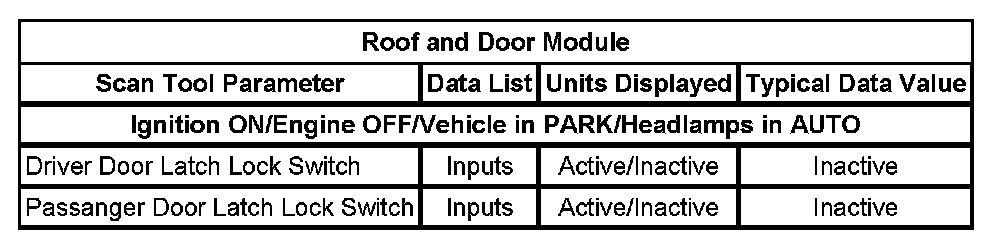

Roof and Door Module:
