Home >> Chevrolet >> 2005 >> SSR V8-6.0L VIN H >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

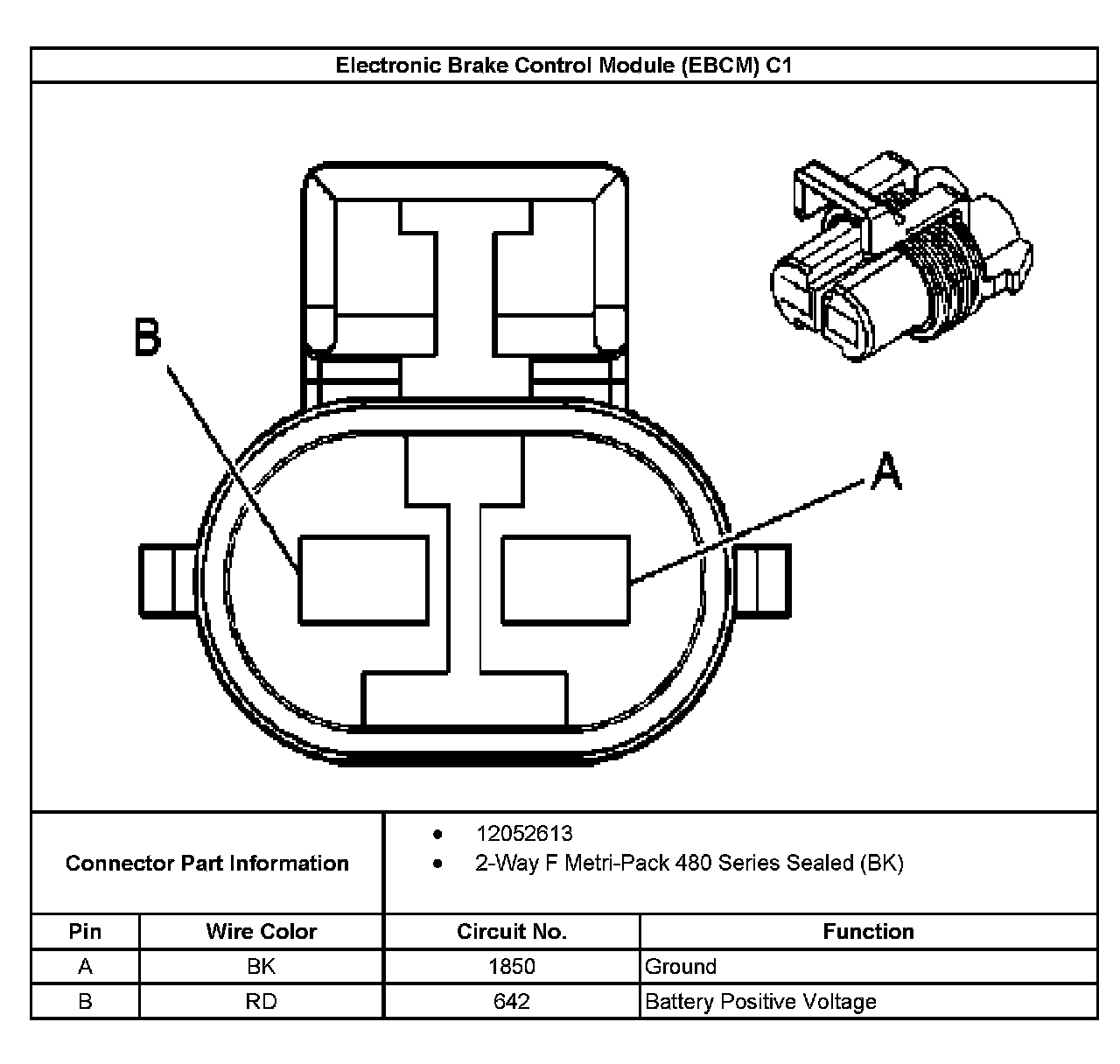

Electronic Brake Control Module C1:

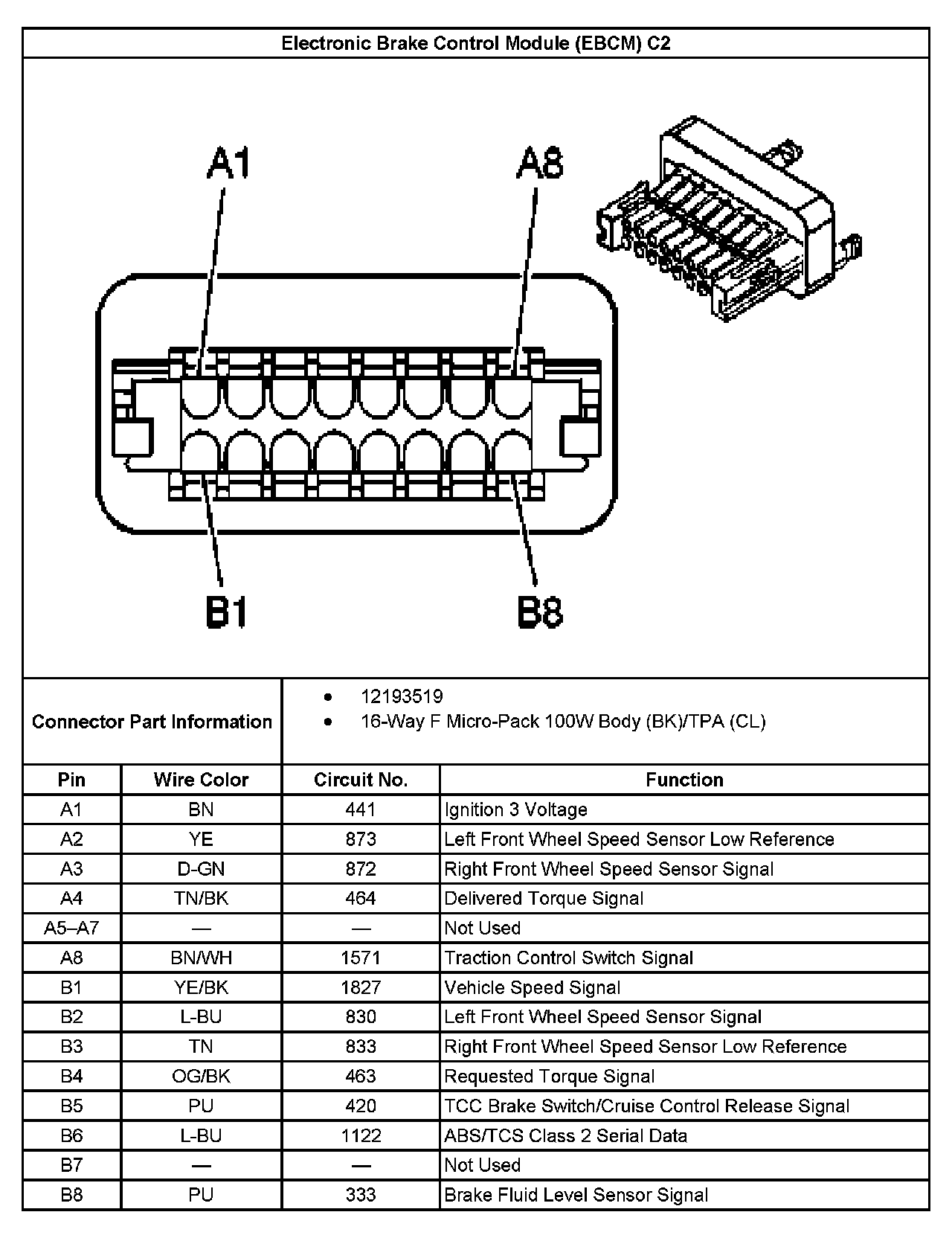

Electronic Brake Control Module C2:
