Body Control Module
>>

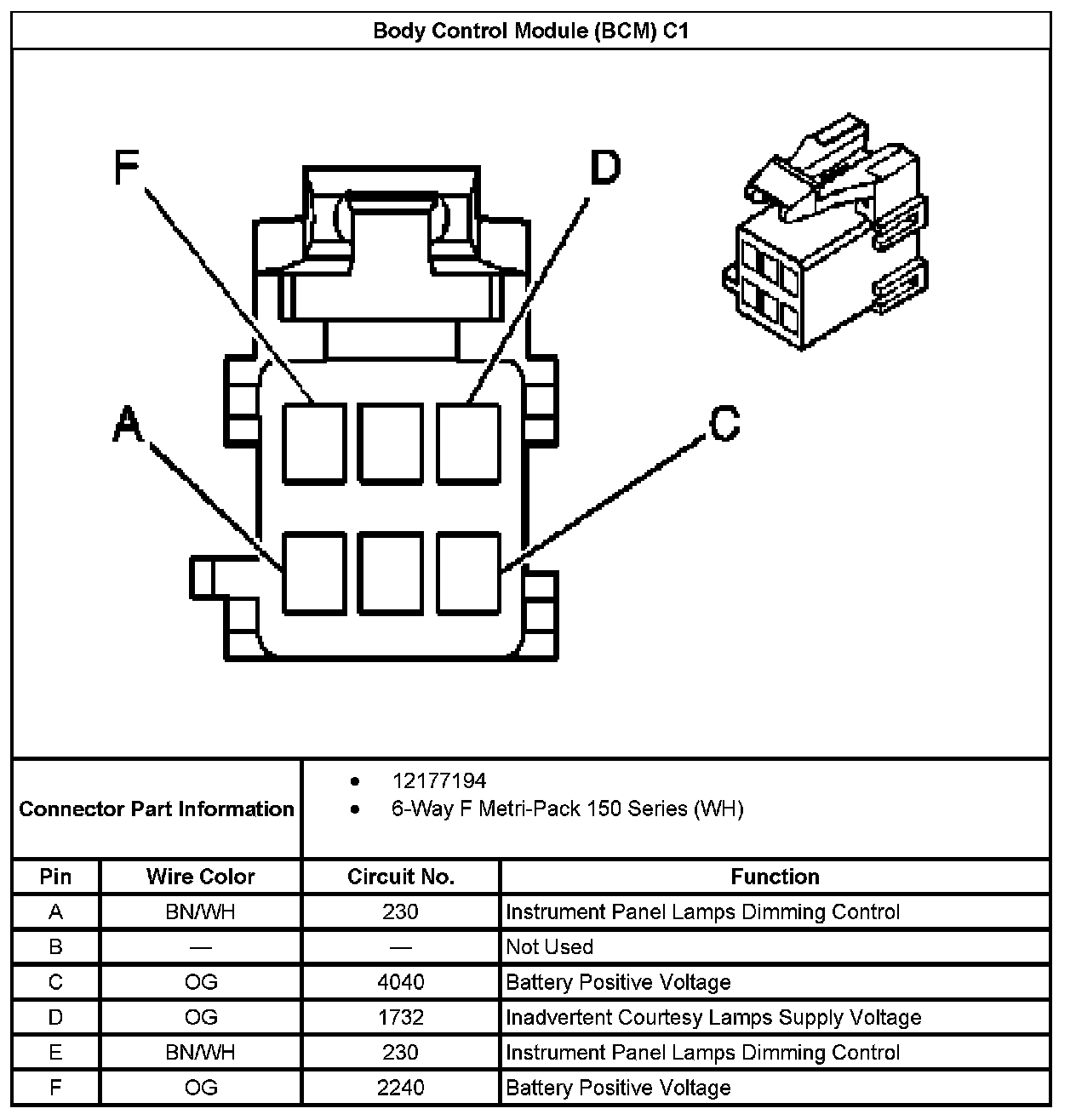

Body Control Module (BCM) C1
Body Control Module (BCM) C1
Body Control Module (BCM) C1:
