Home >> Chevrolet >> 2005 >> Impala V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Impact Sensor >> Front End Discriminating Sensor

Front End Discriminating Sensor

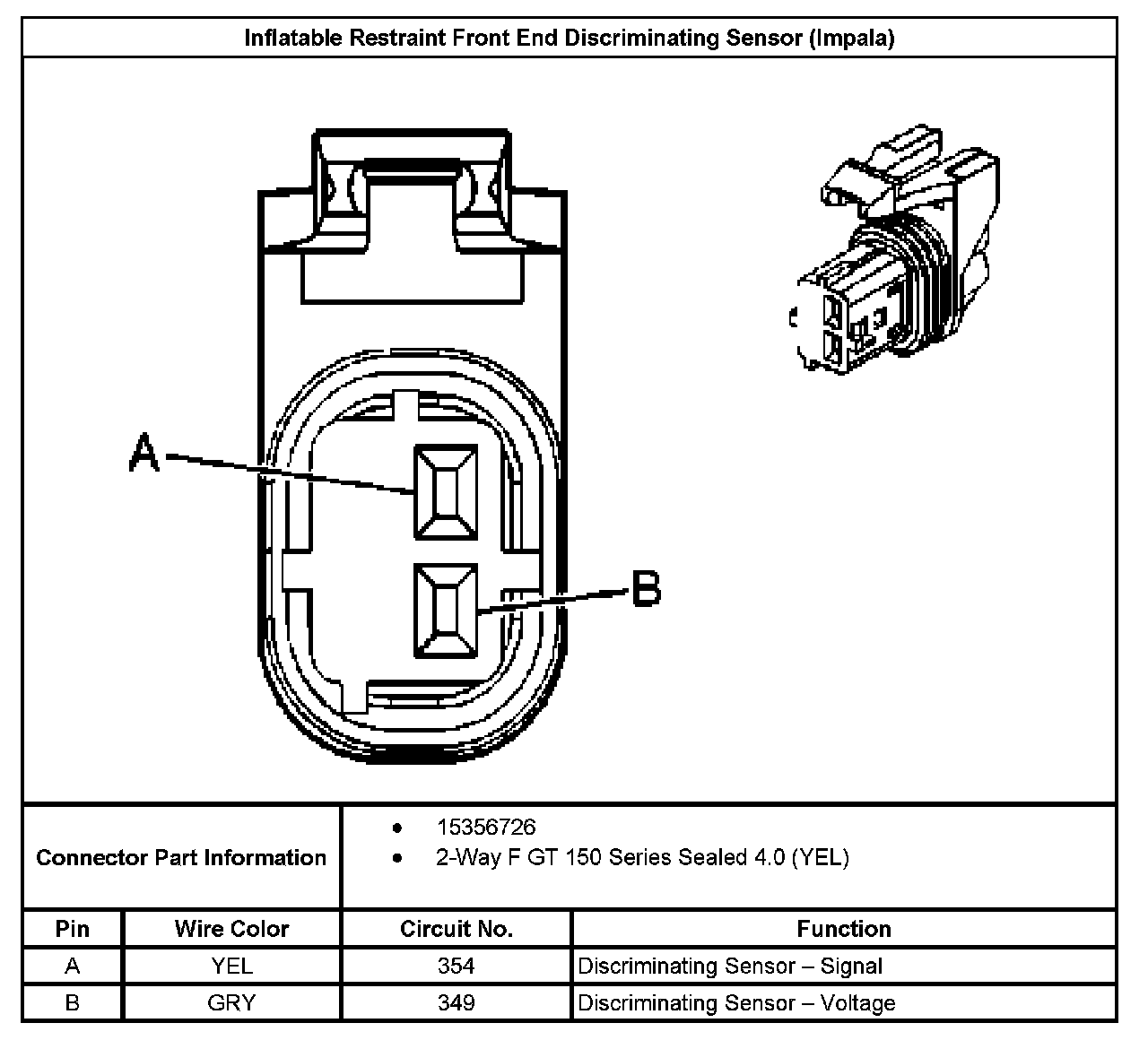

Inflatable Restraint Front End Discriminating Sensor:
