lemon-mirror
:
Home
>>
Chevrolet
>>
2005
>>
Impala V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ignition Control Module
Ignition Control Module

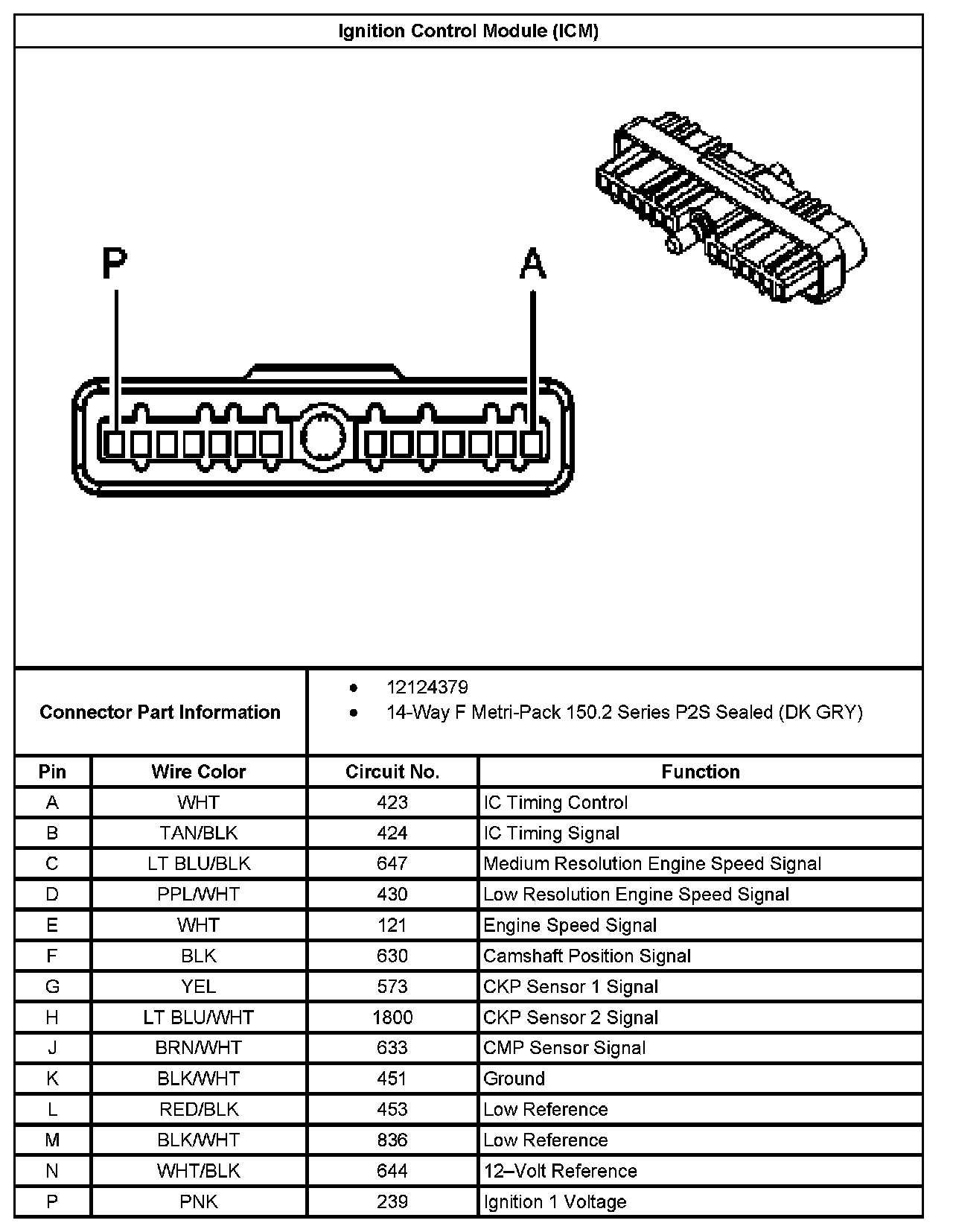

Ignition Control Module (ICM):
