Home >> Chevrolet >> 2005 >> Impala V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

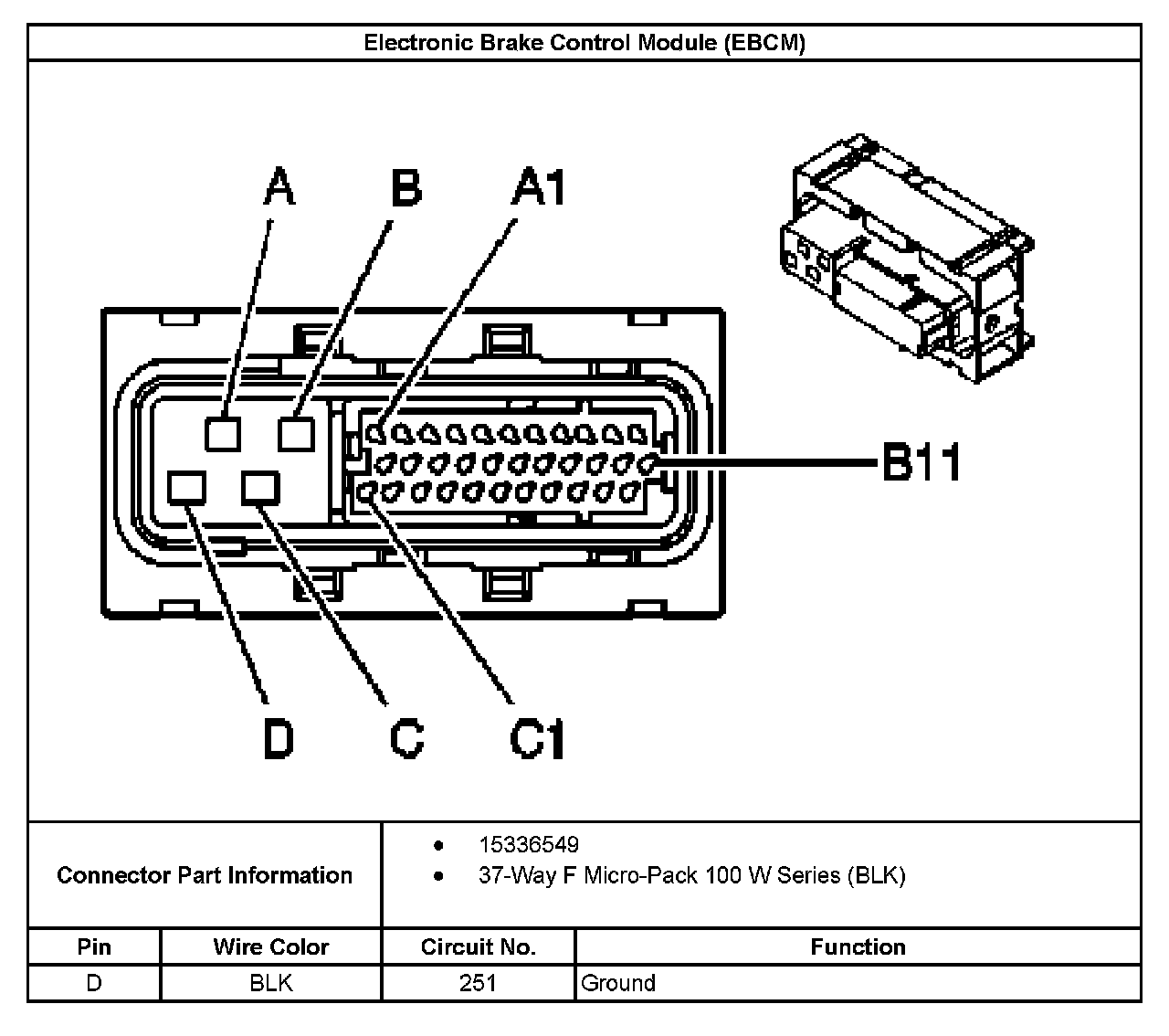

Electronic Brake Control Module 1:

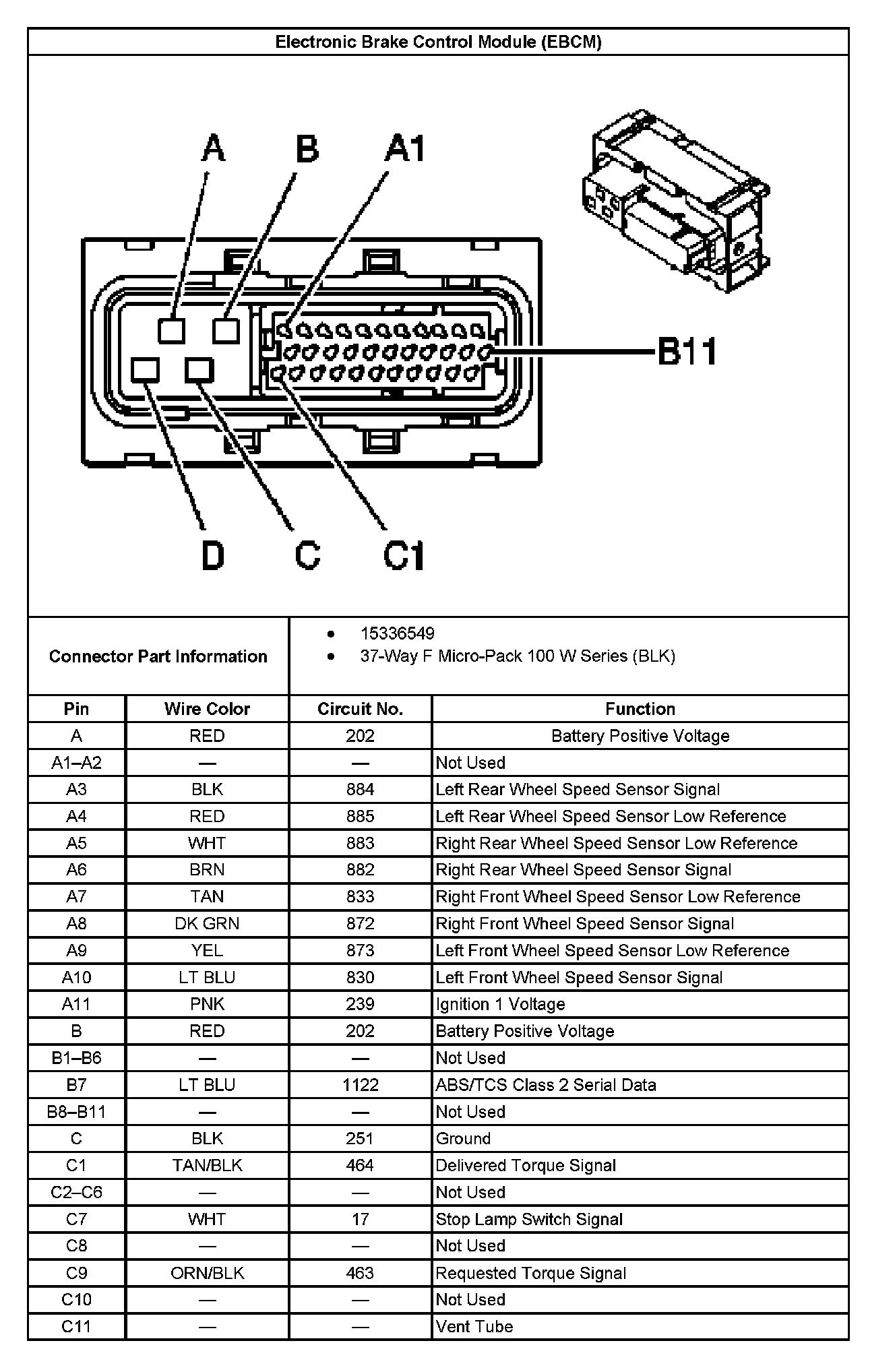

Electronic Brake Control Module 2:
