Chevrolet
>>
2005
>>
Impala V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Body Control Module
>>
Body Control Module (BCM) C3
Body Control Module (BCM) C3

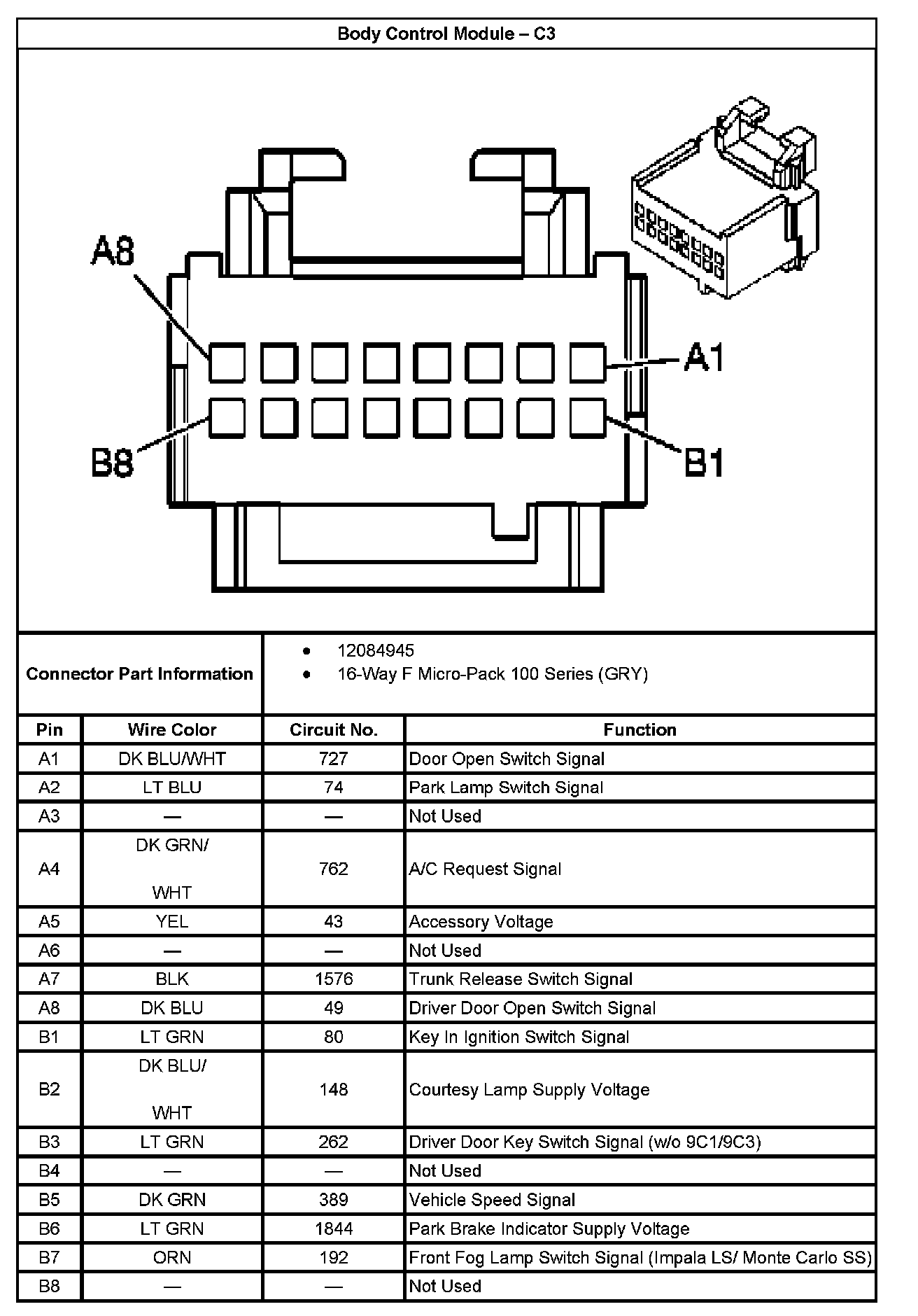

Body Control Module - C3:
