Home >> Chevrolet >> 2005 >> Impala V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Components

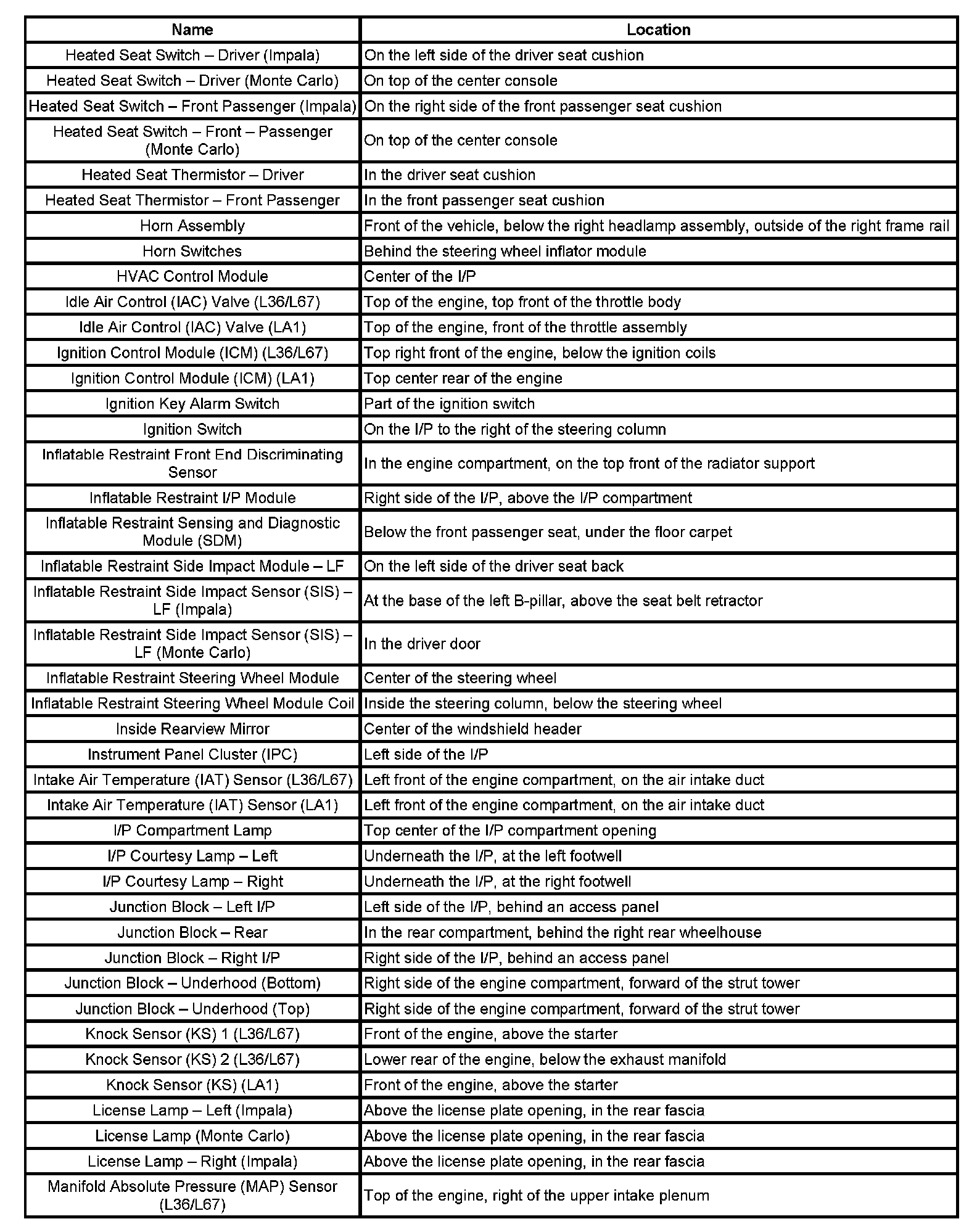

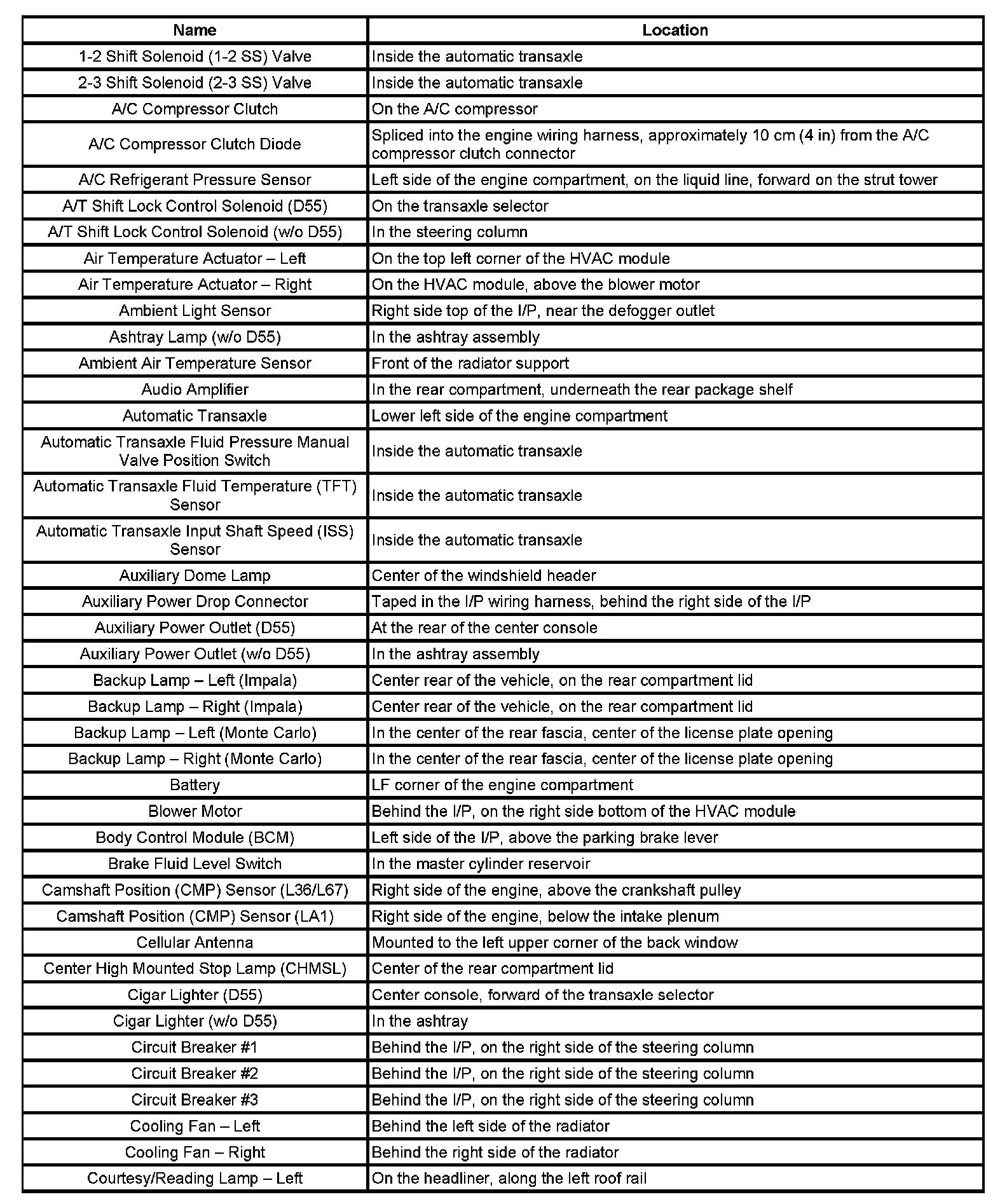

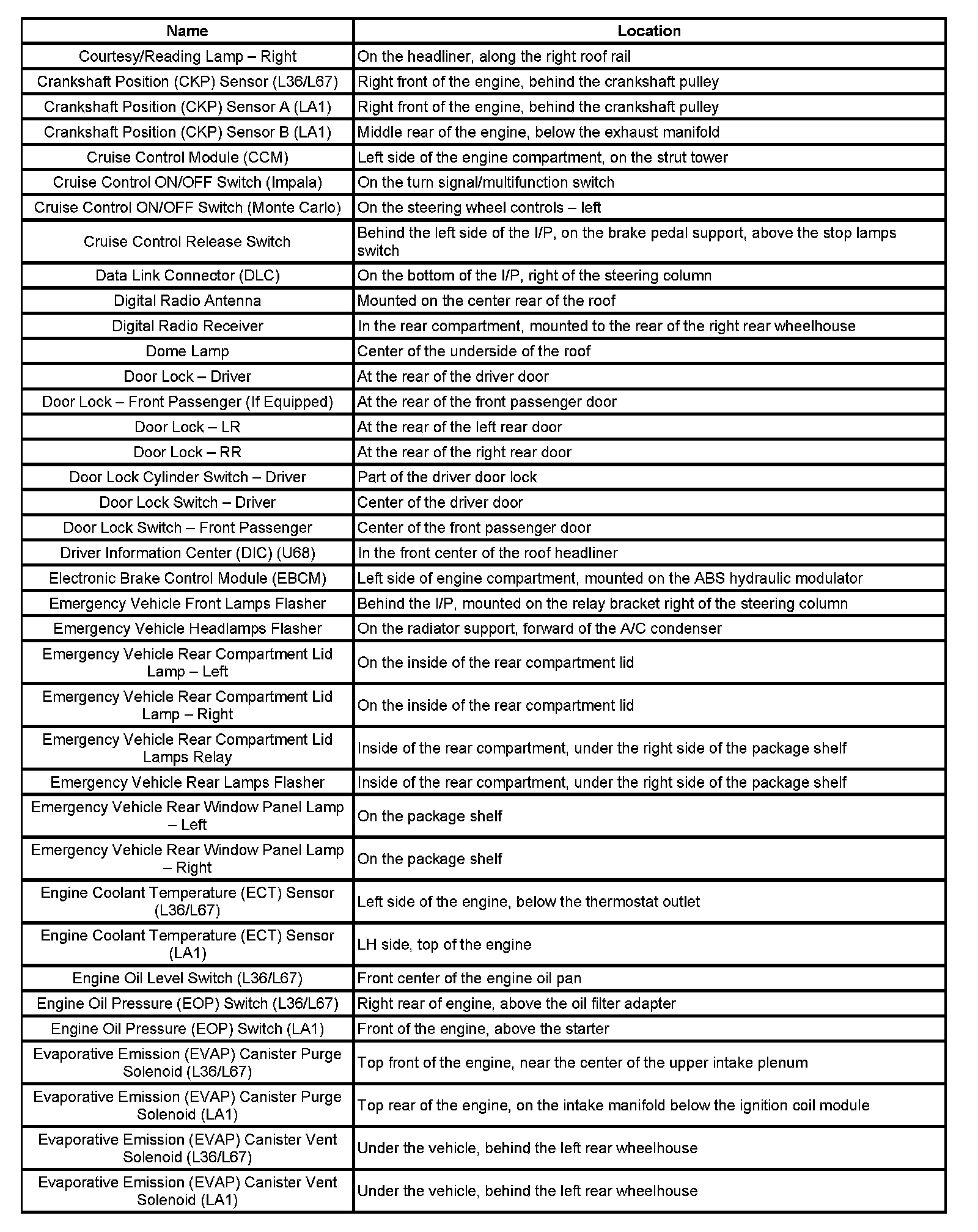

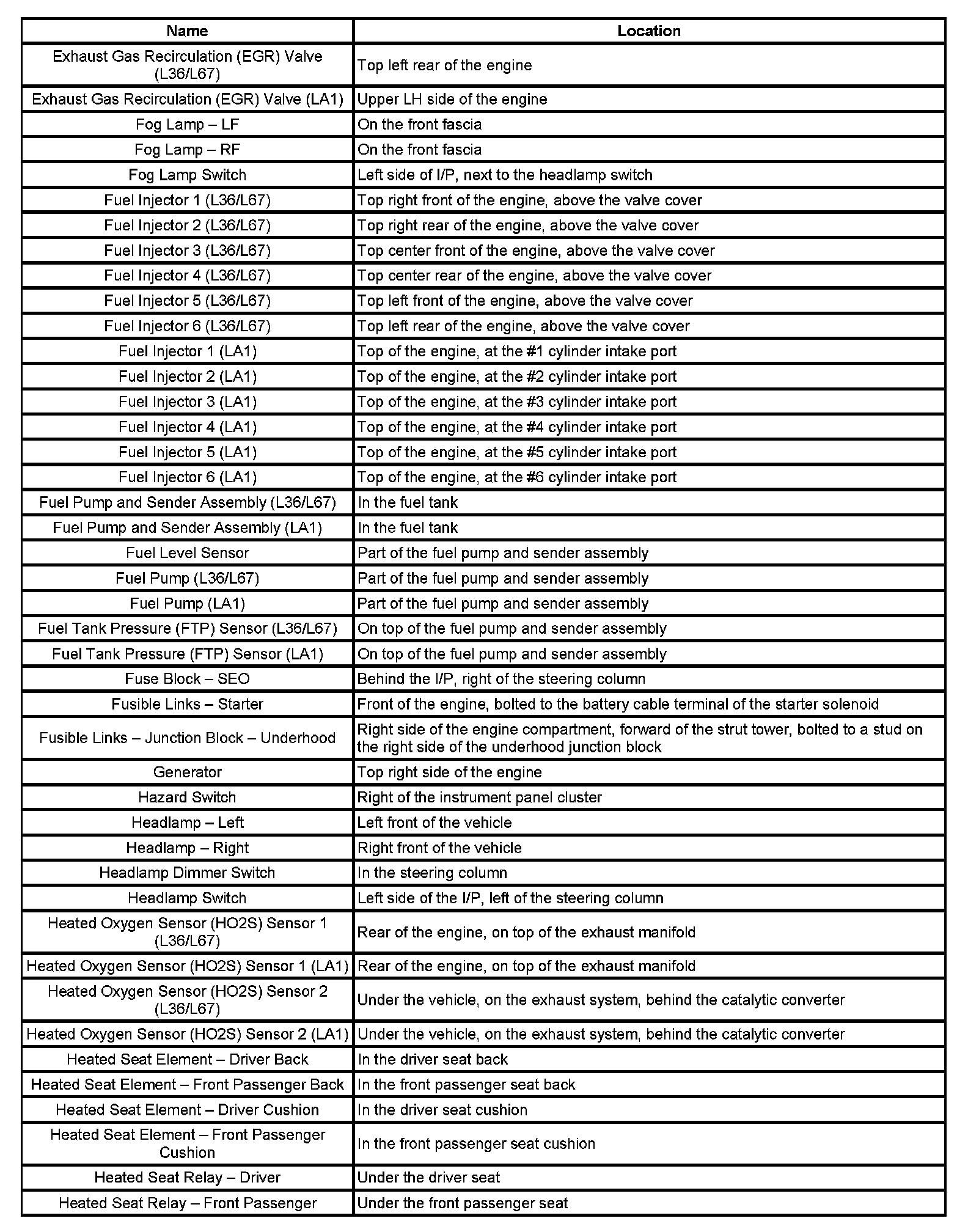

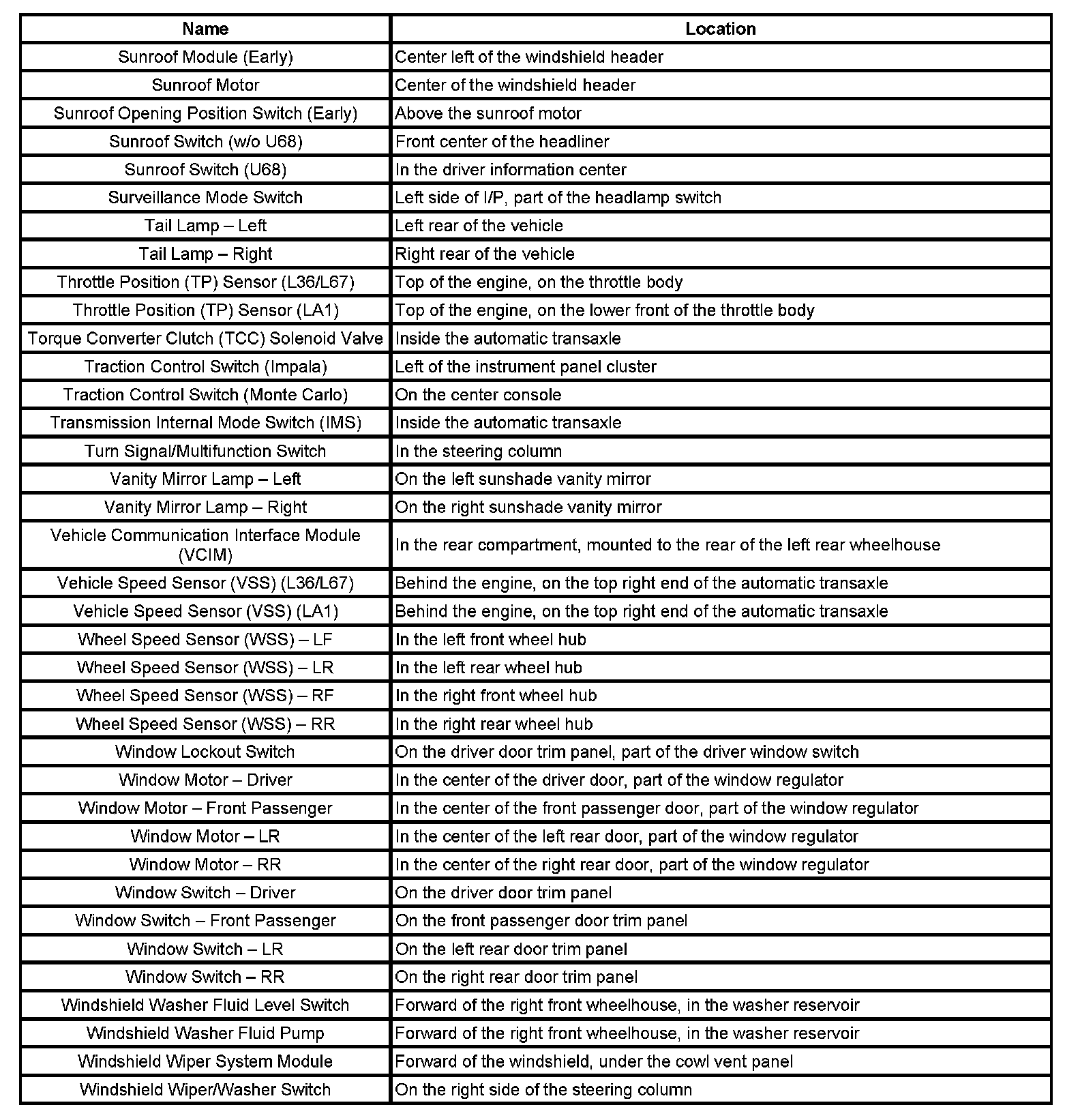

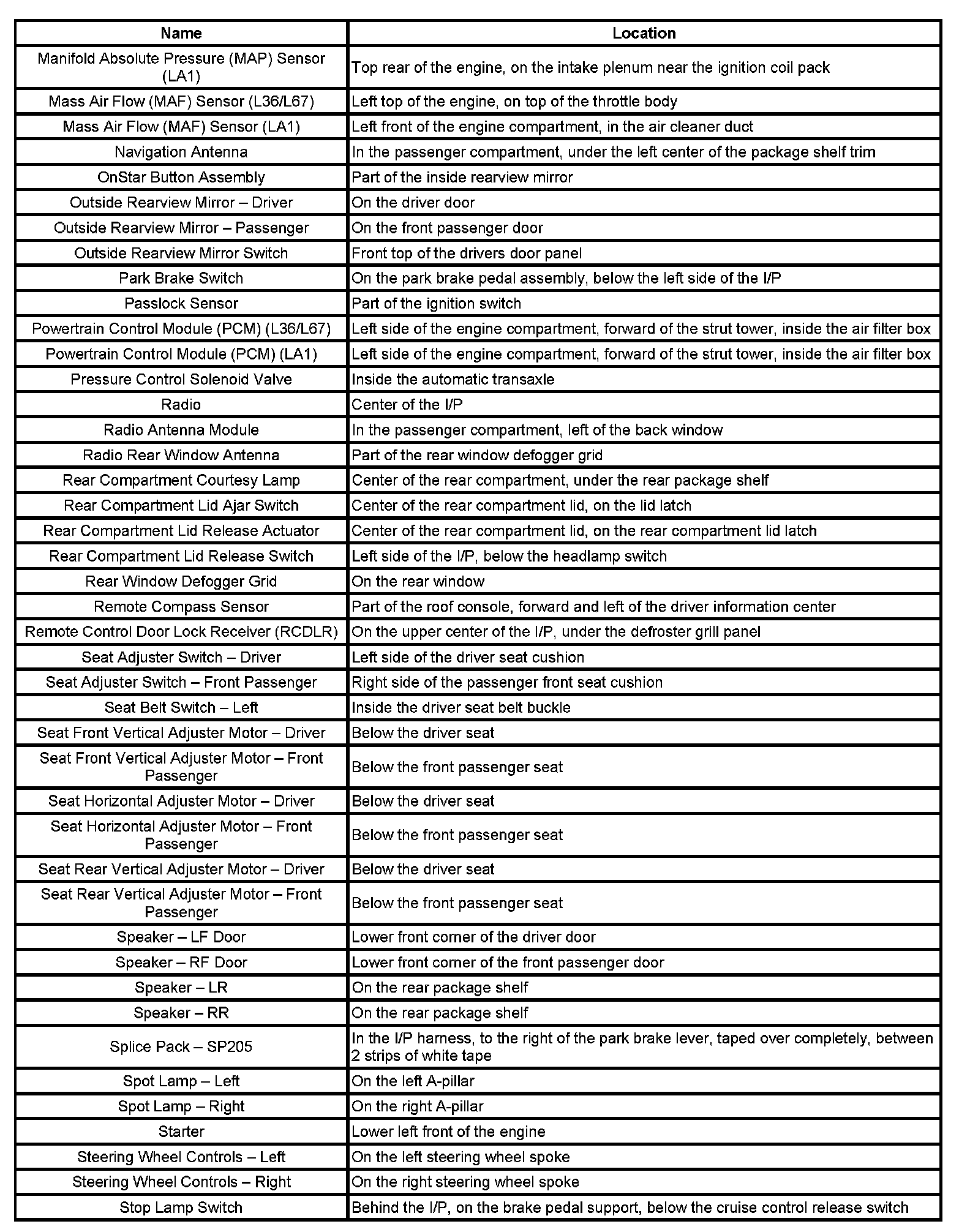

Components



1-2 Sh - Co:




Co - Ev:




Ex - He:




He - Ma:




Ma - St:




Su - Wi:
