Electronic Throttle Control Module
Electronic Throttle Control Module

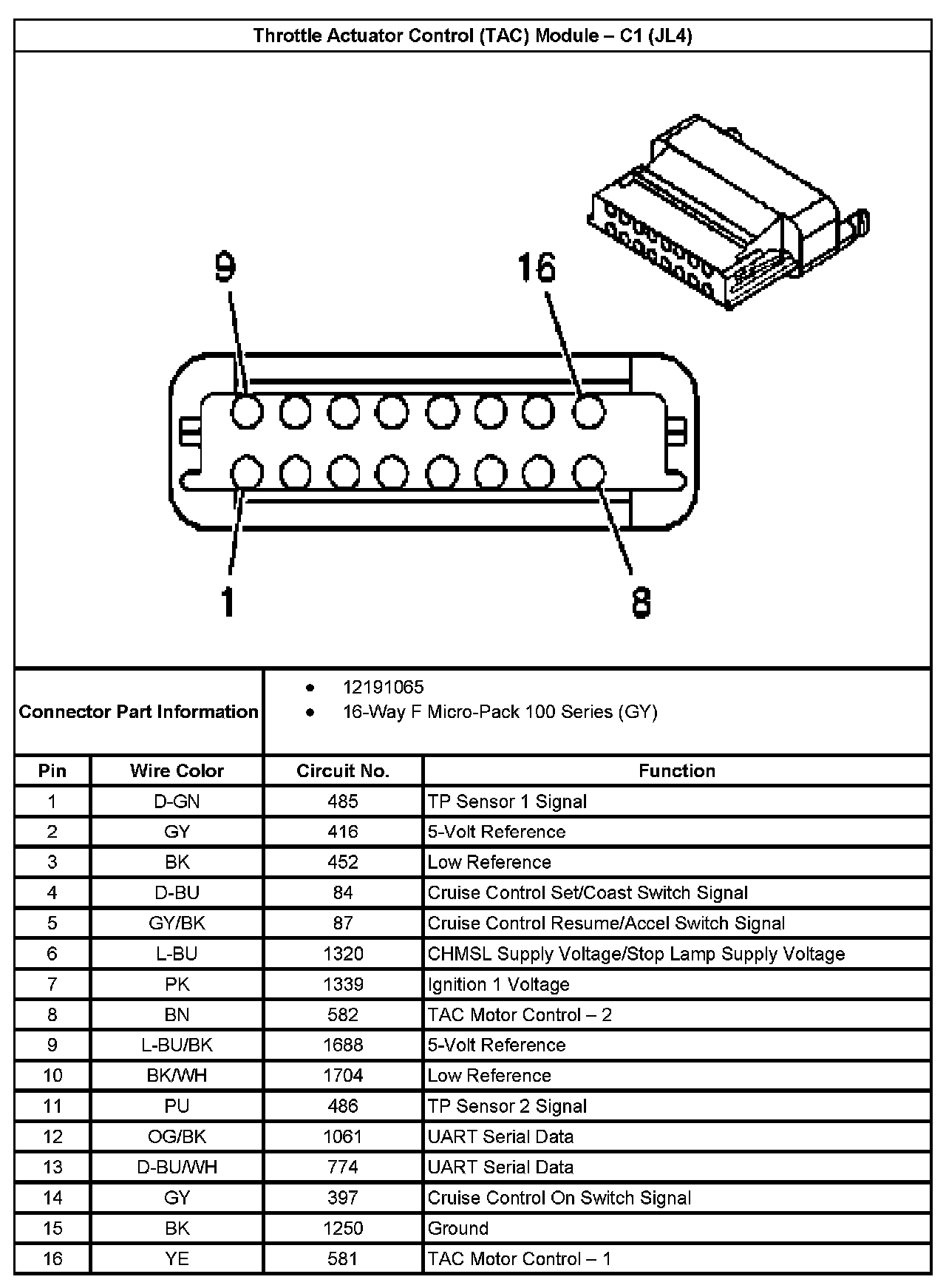

Throttle Actuator Control (TAC) Module - C1 (With RPO Code JL4):
