Electronic Brake Control Module

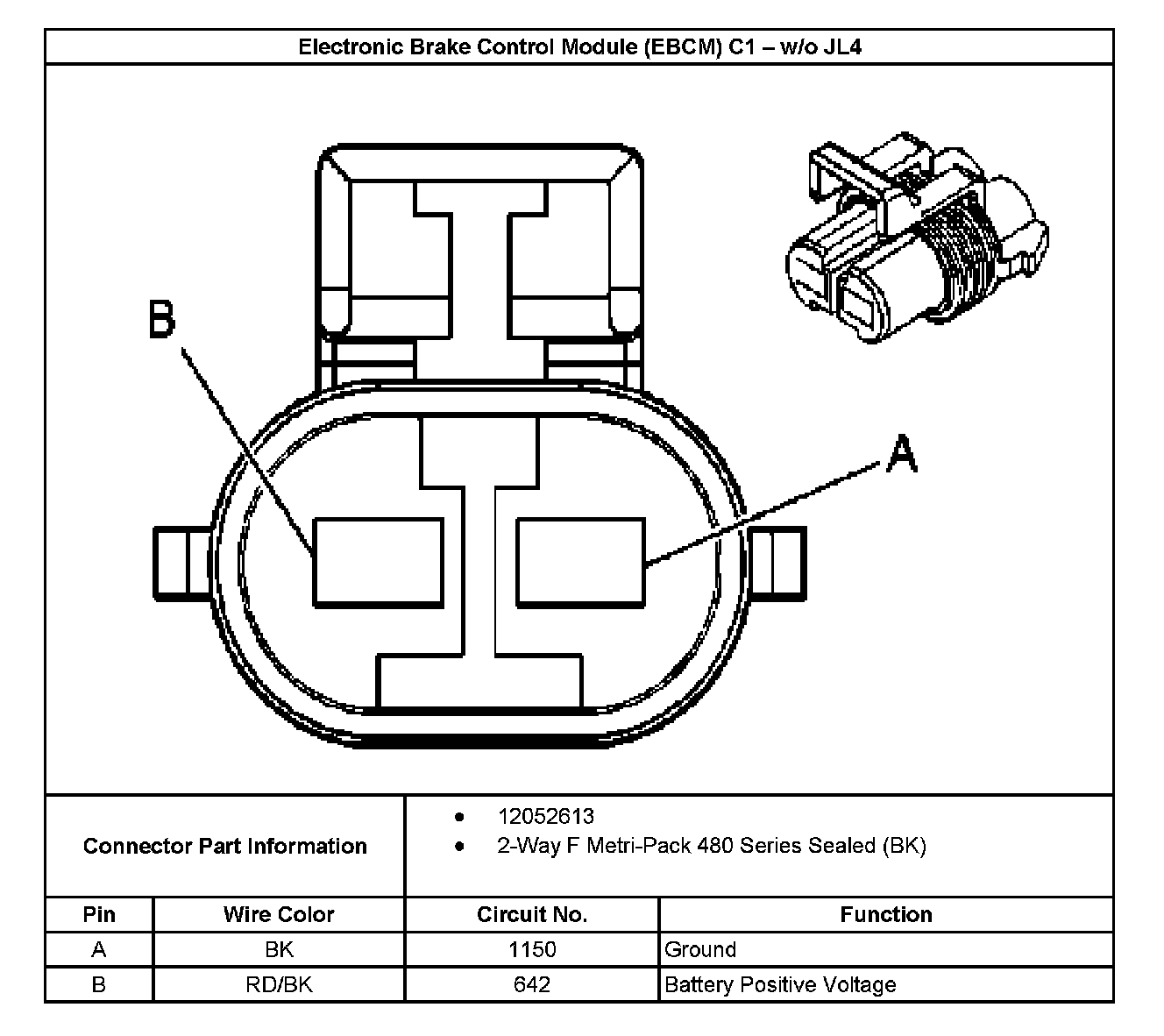

Electronic Brake Control Module C1 W/o JL4:

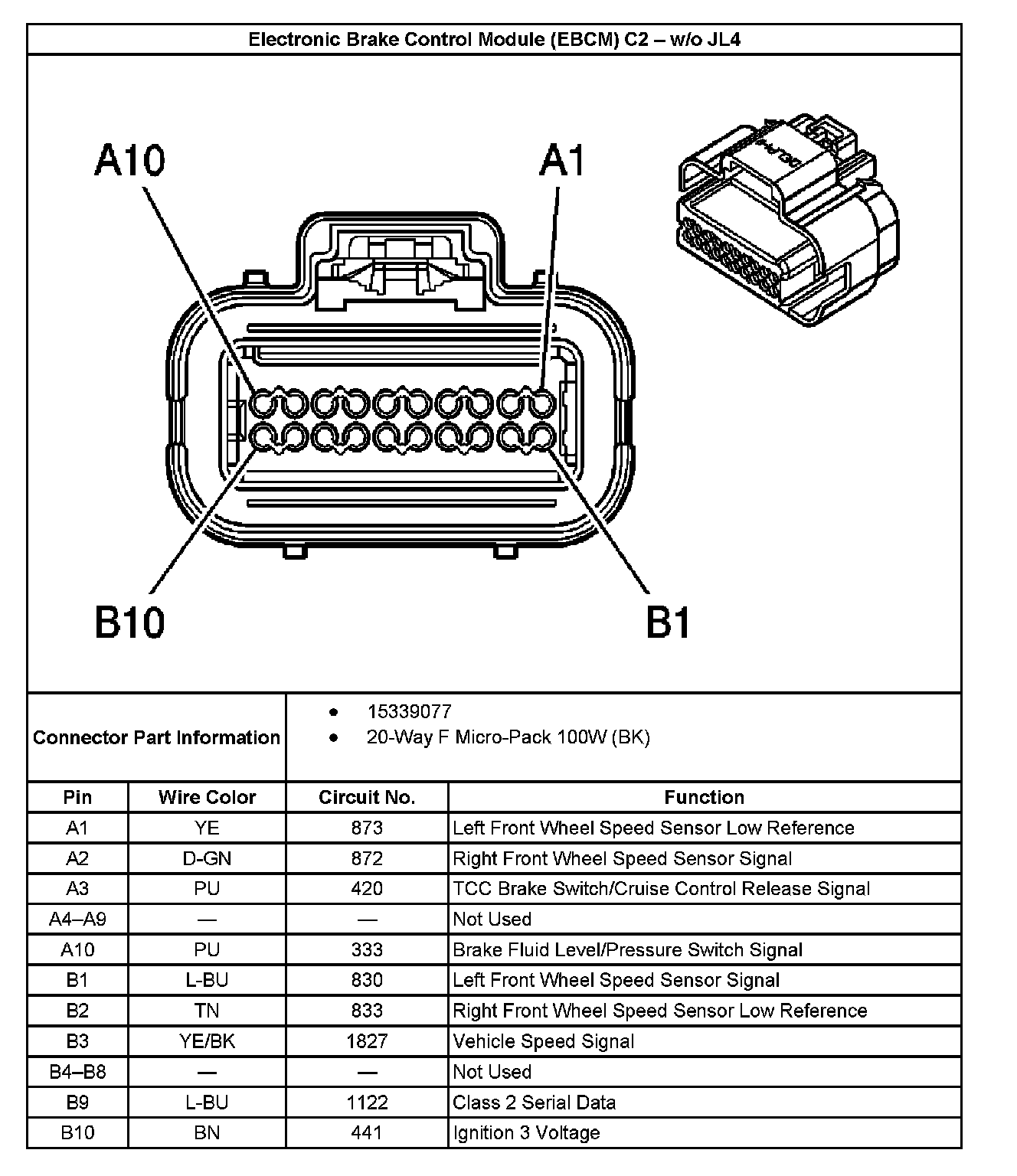

Electronic Brake Control Module C2 W/o JL4:

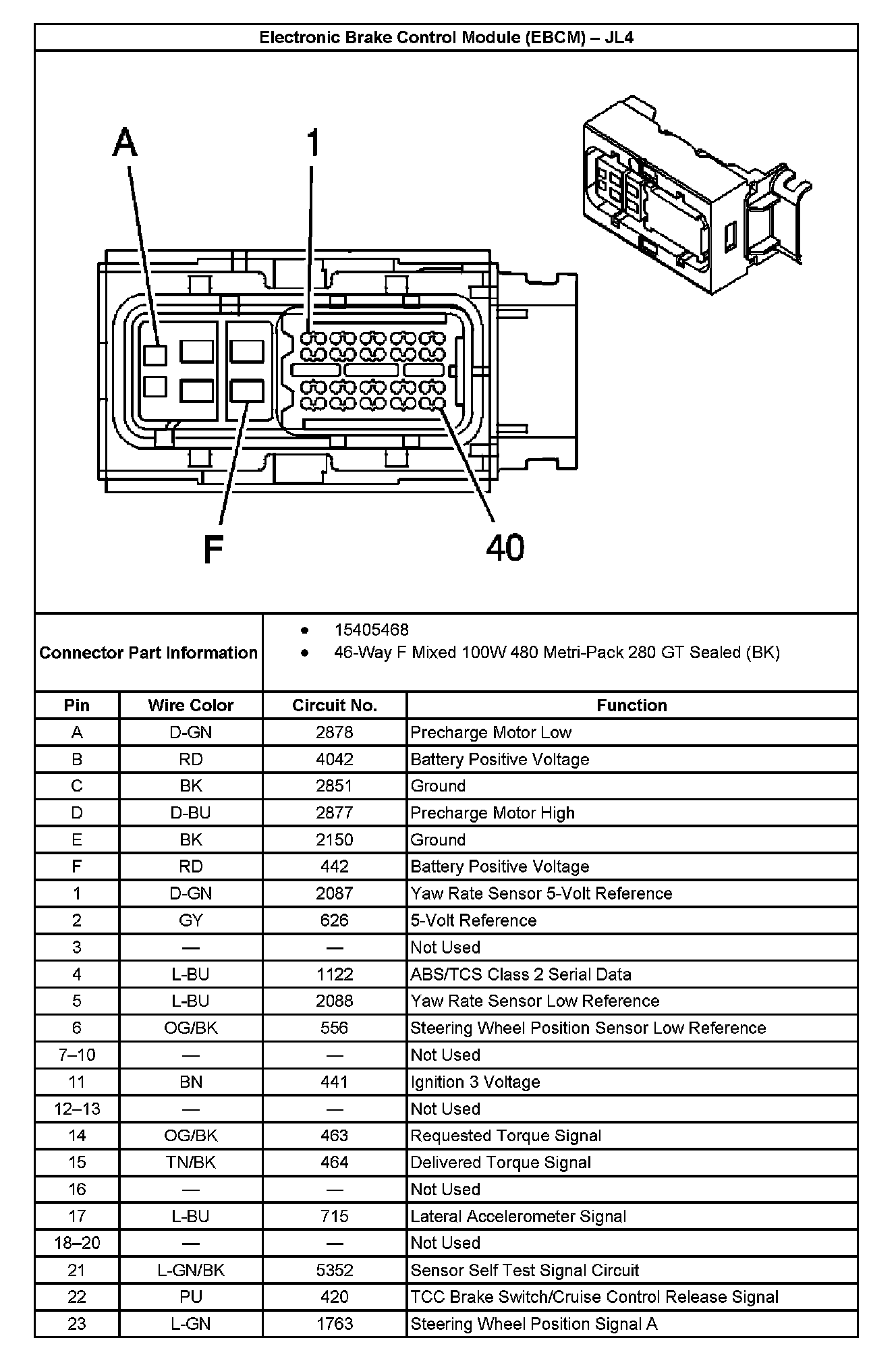

Electronic Brake Control Module - JL4:

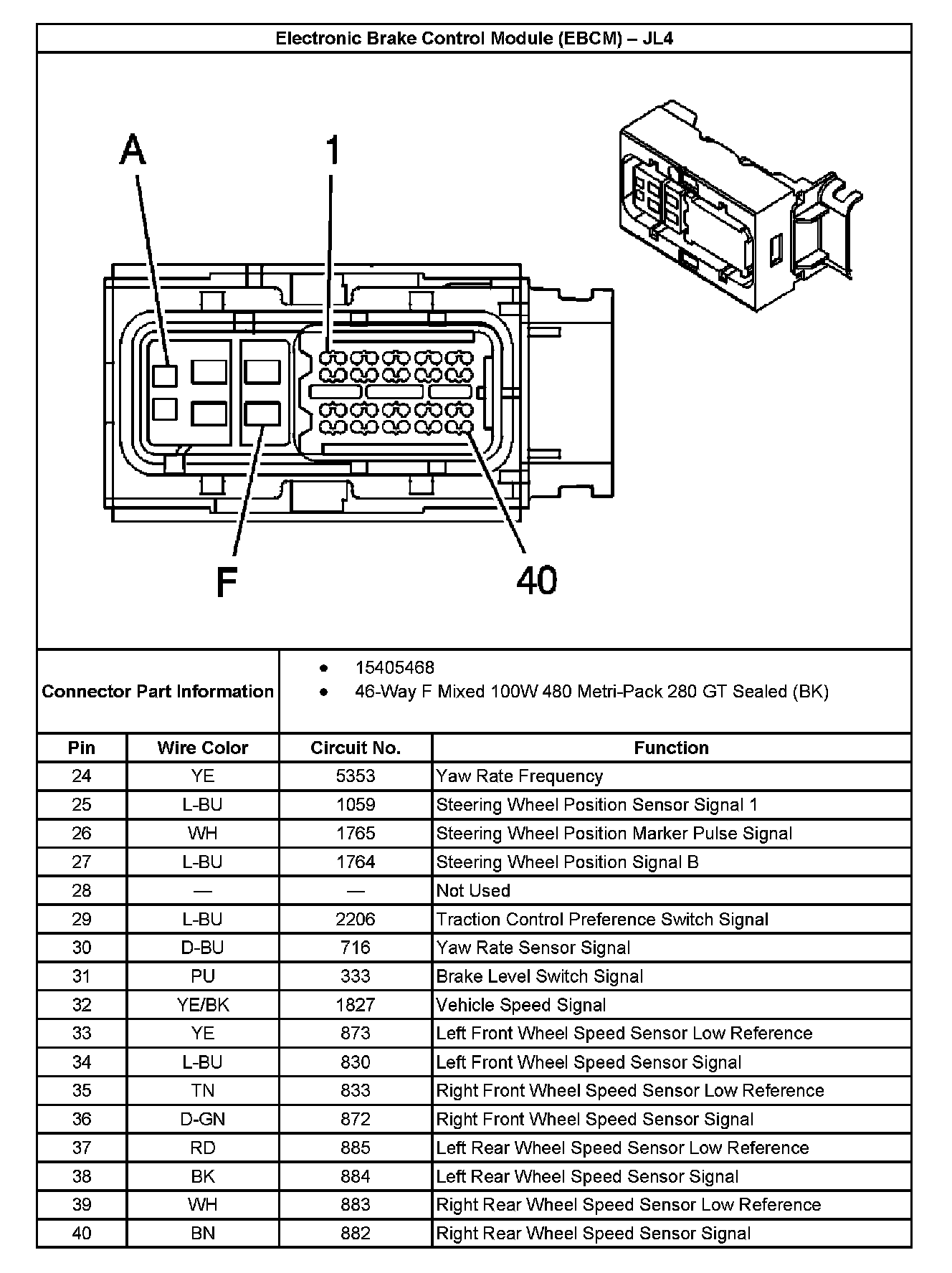

Electronic Brake Control Module - JL4:
