Audible Warning Device Control Module
Audible Warning Device Control Module

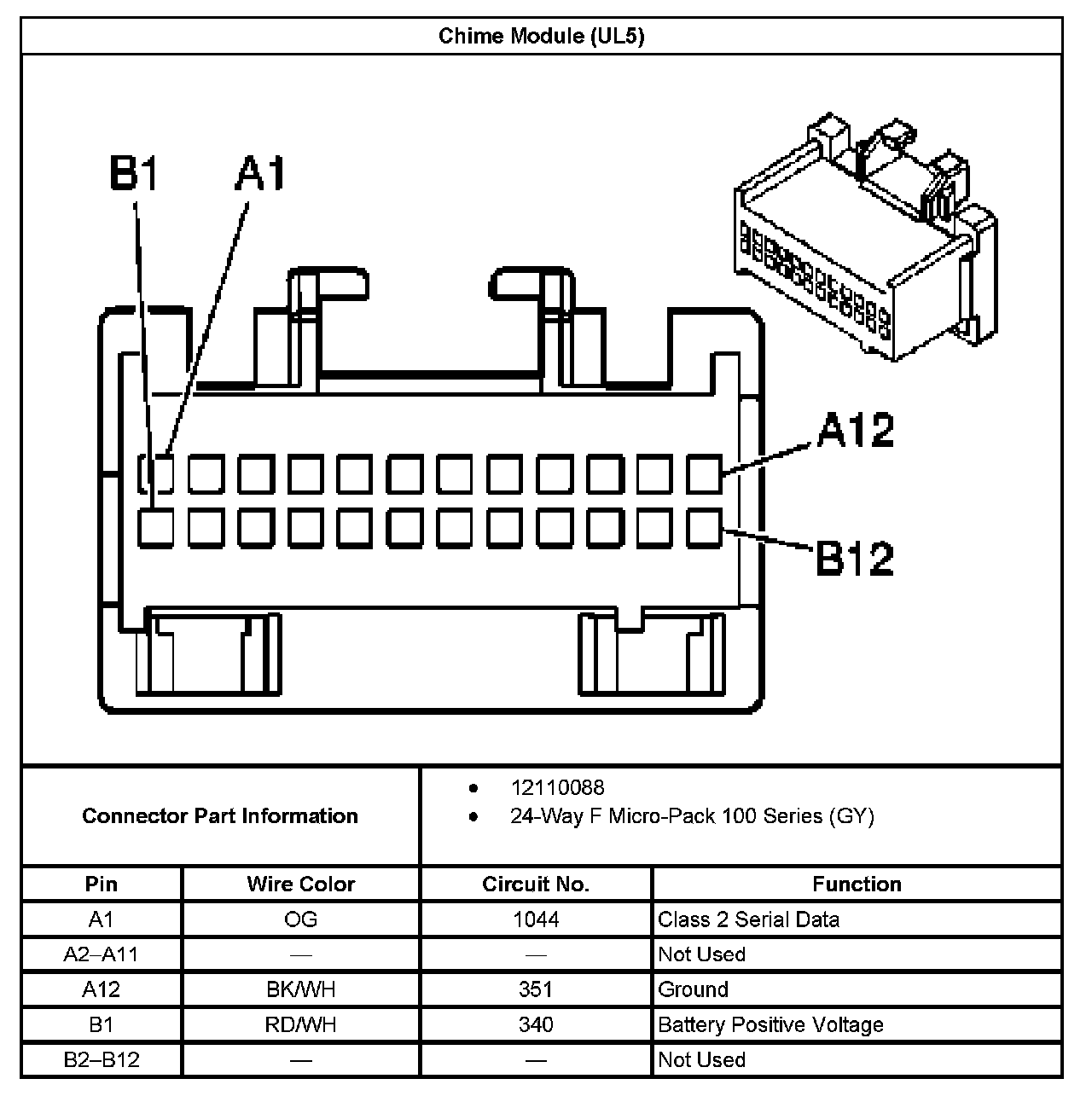

Chime Module (With RPO Code UL5):
