Home >> Chevrolet >> 2005 >> Express 2500 V6-4.3L VIN X >> Repair and Diagnosis >> Diagrams >> Components

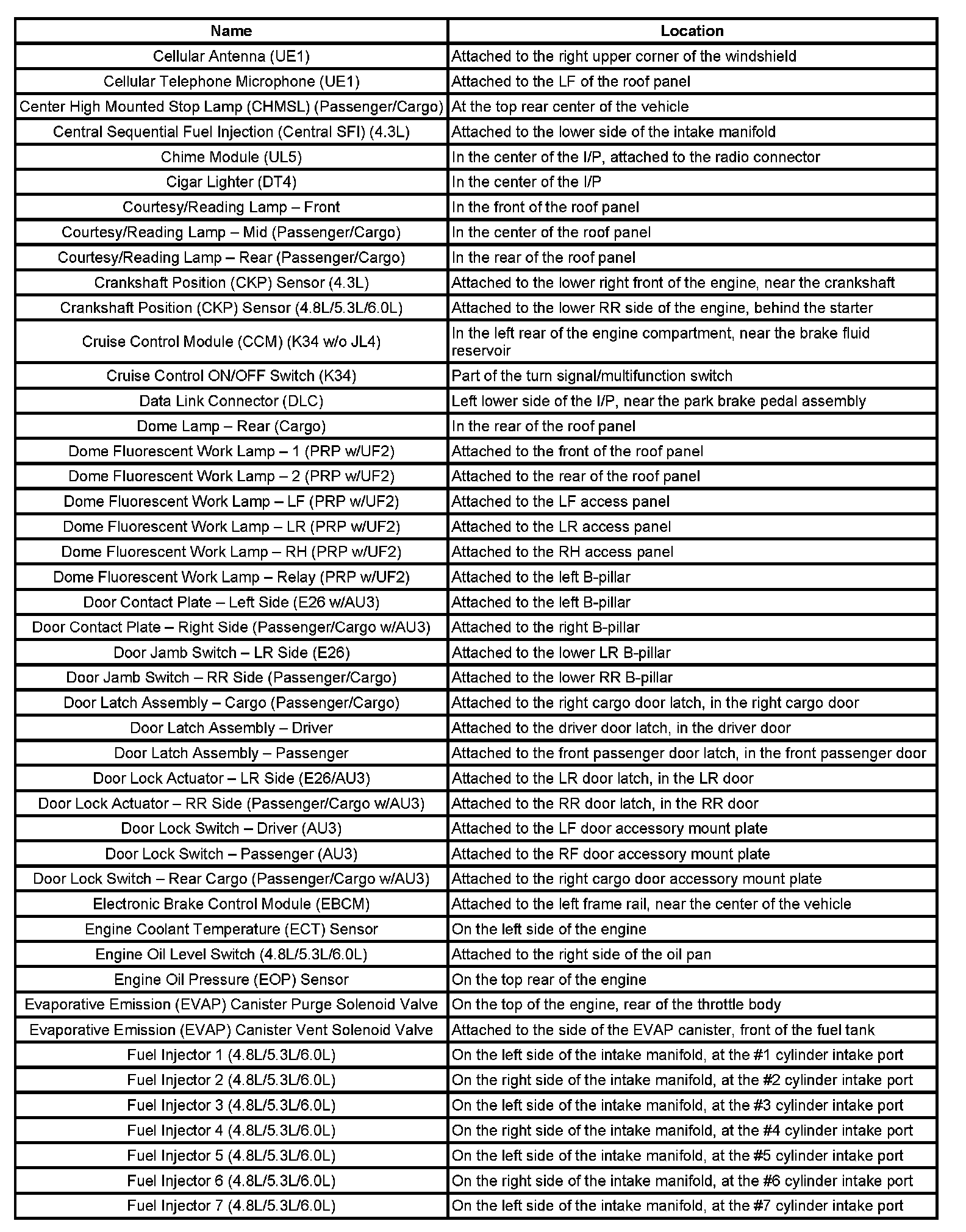

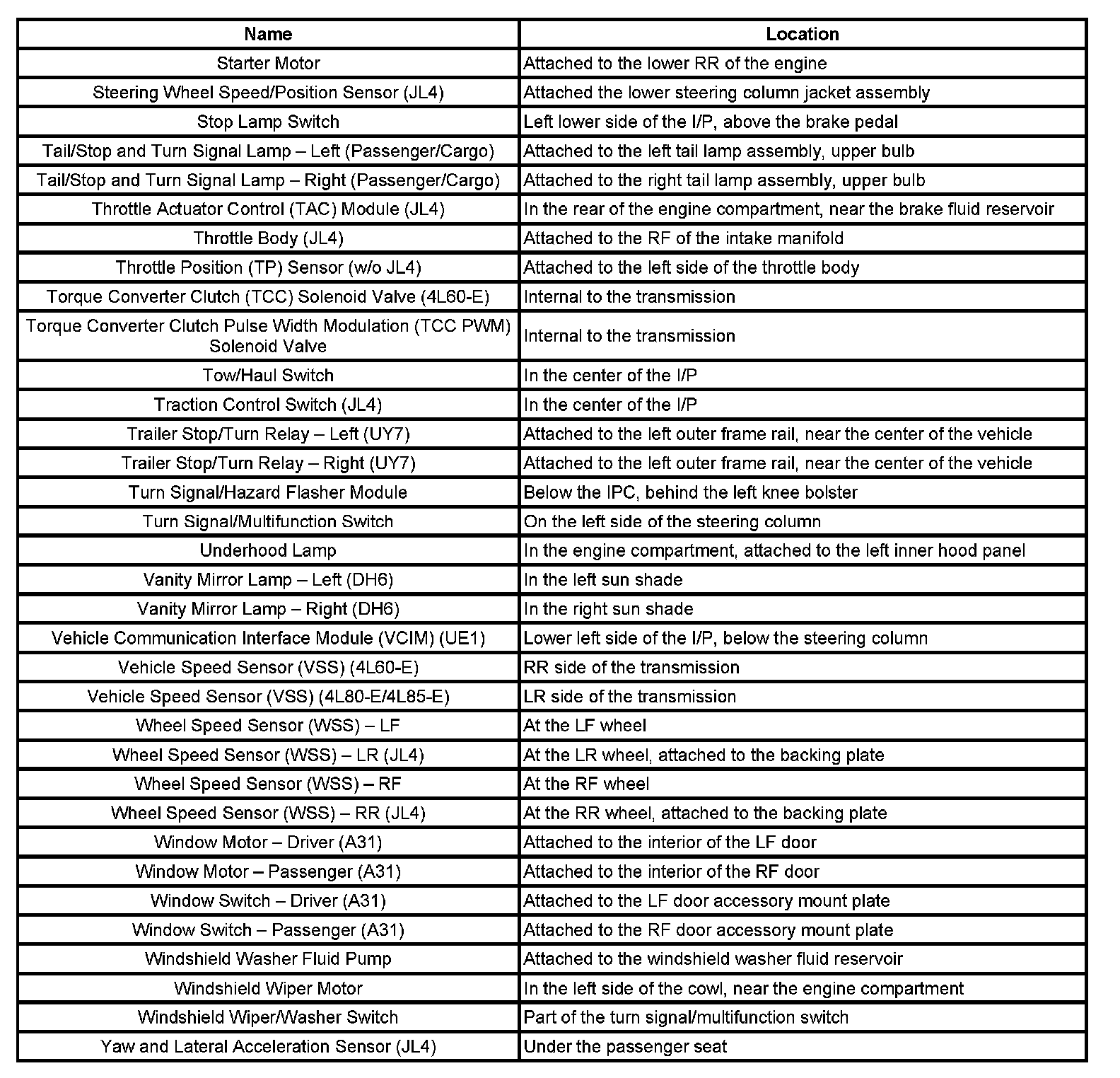

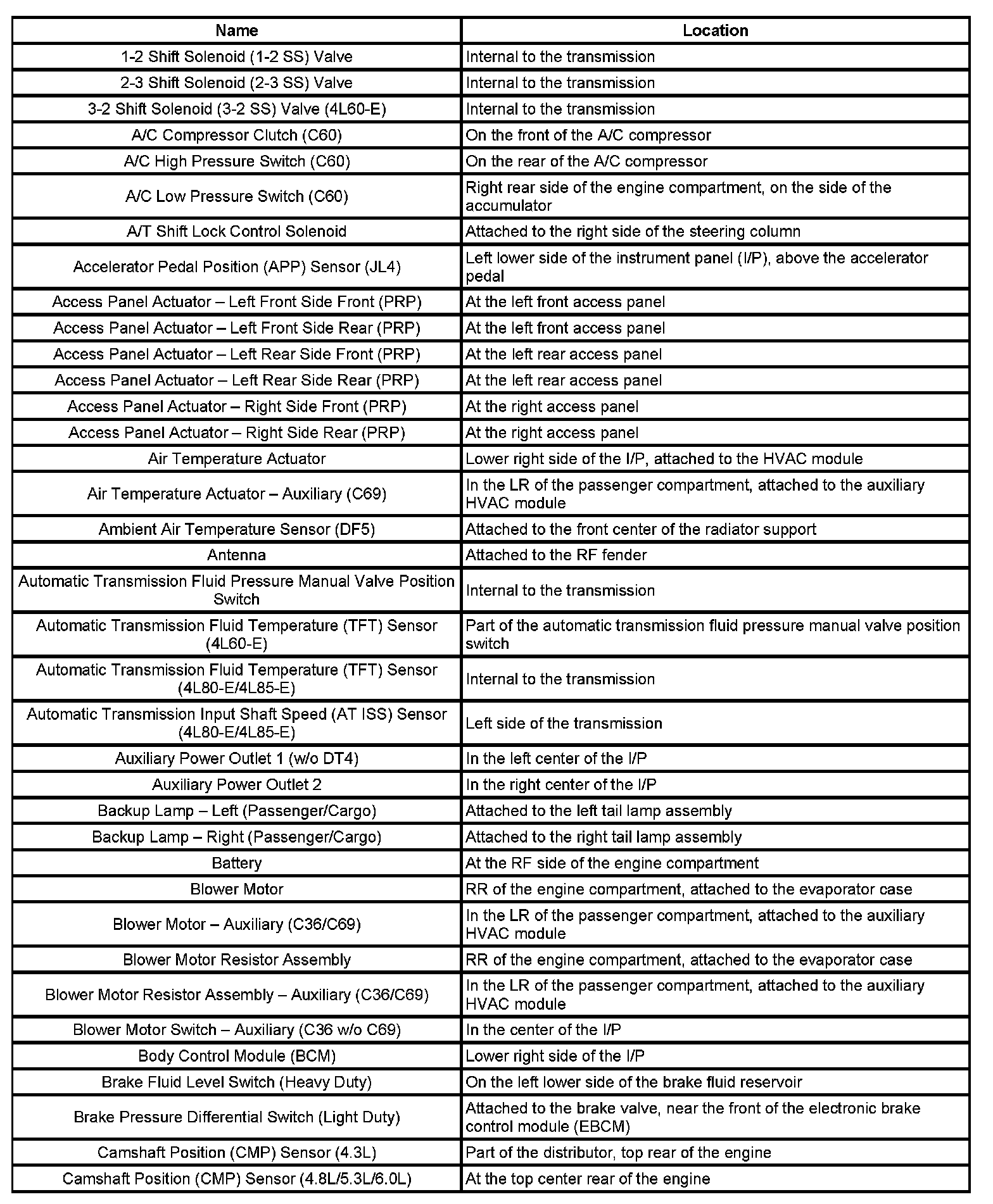

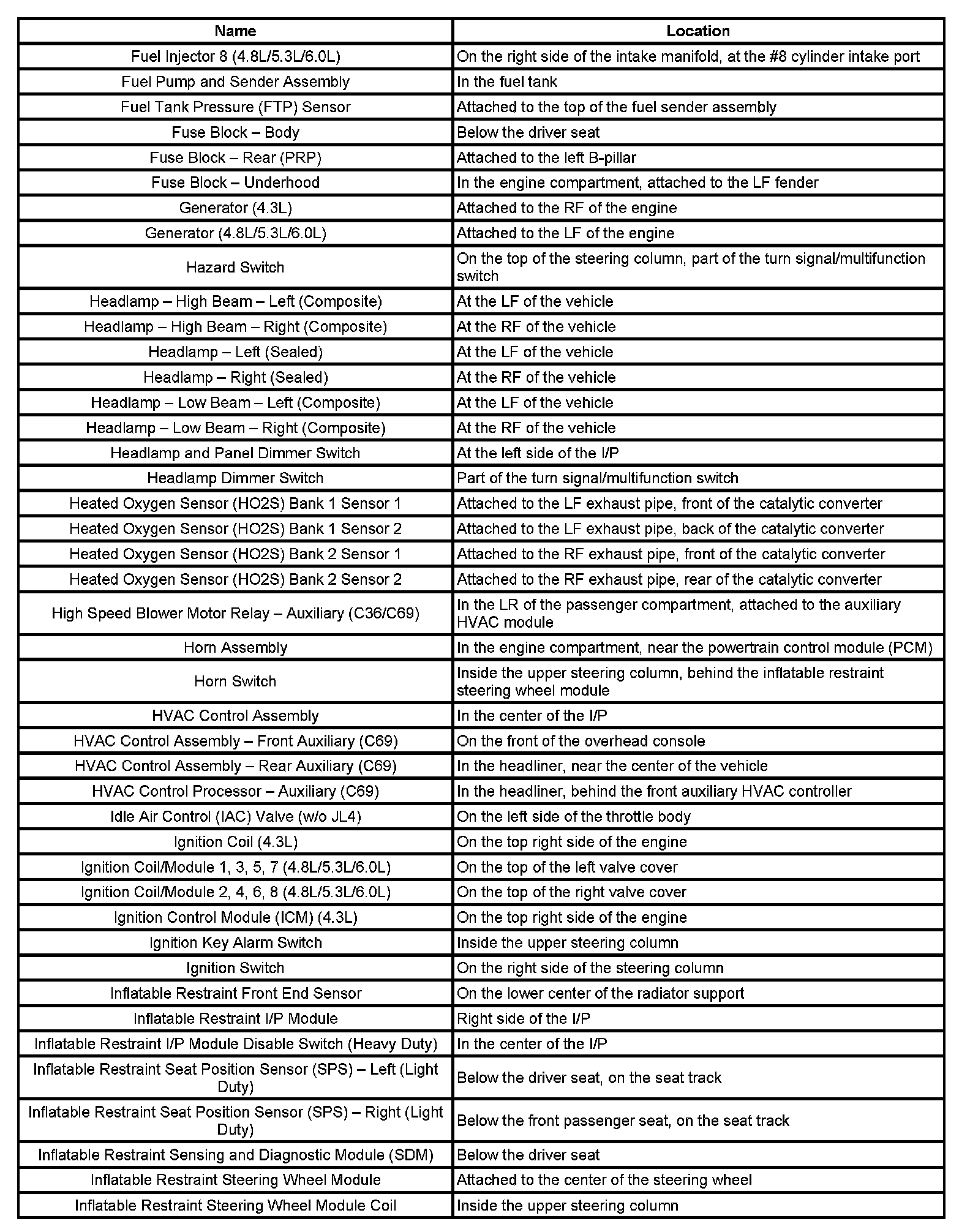

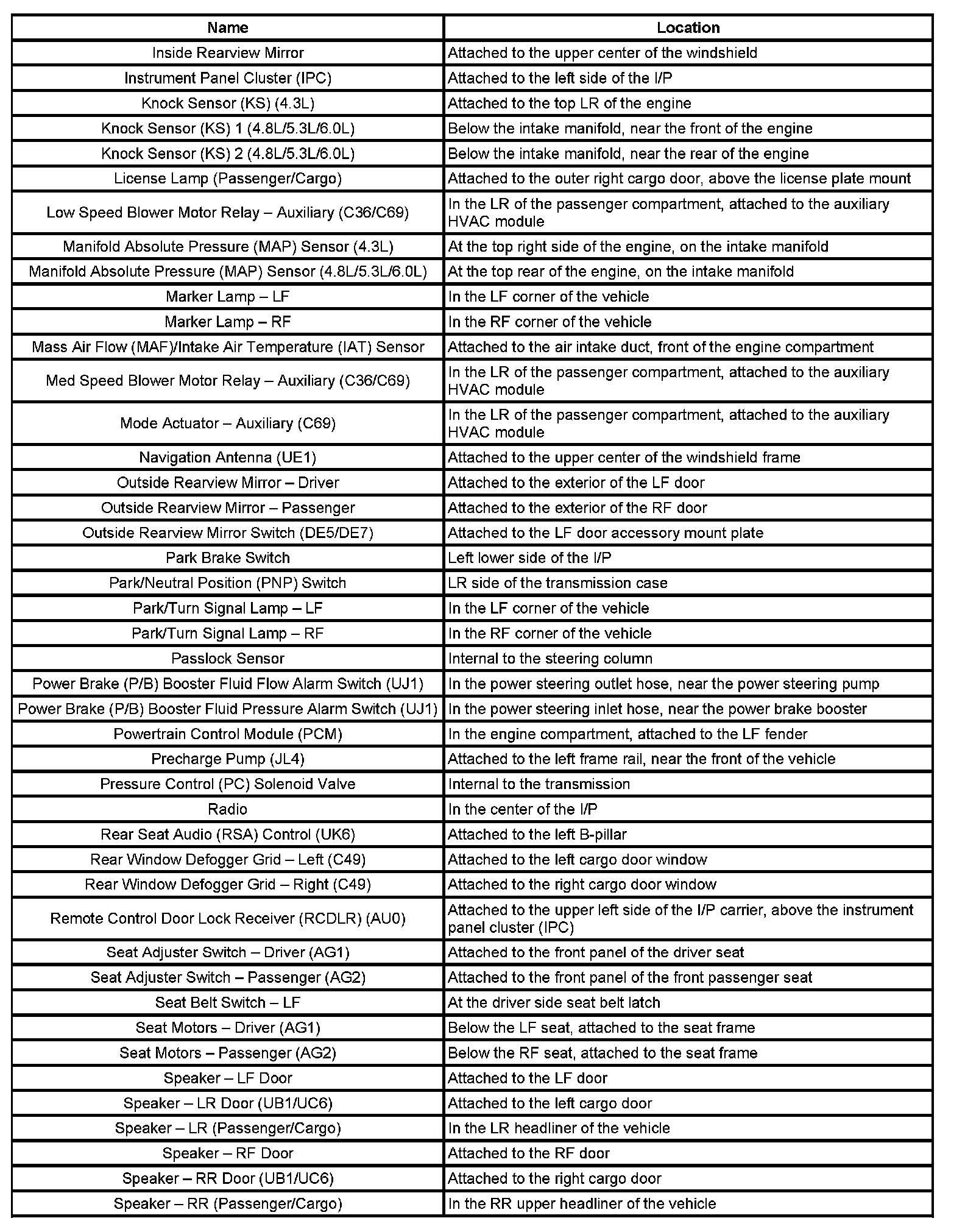

Components

1-2 Sh - Ca:



Ce - Fu:



Fu - In:



In - Sp:



St - Ya:
