Home
>>
Chevrolet
>>
2005
>>
Cobalt L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Impact Sensor
>>
Inflatable Restraint Front End Discriminating Sensor
Inflatable Restraint Front End Discriminating Sensor

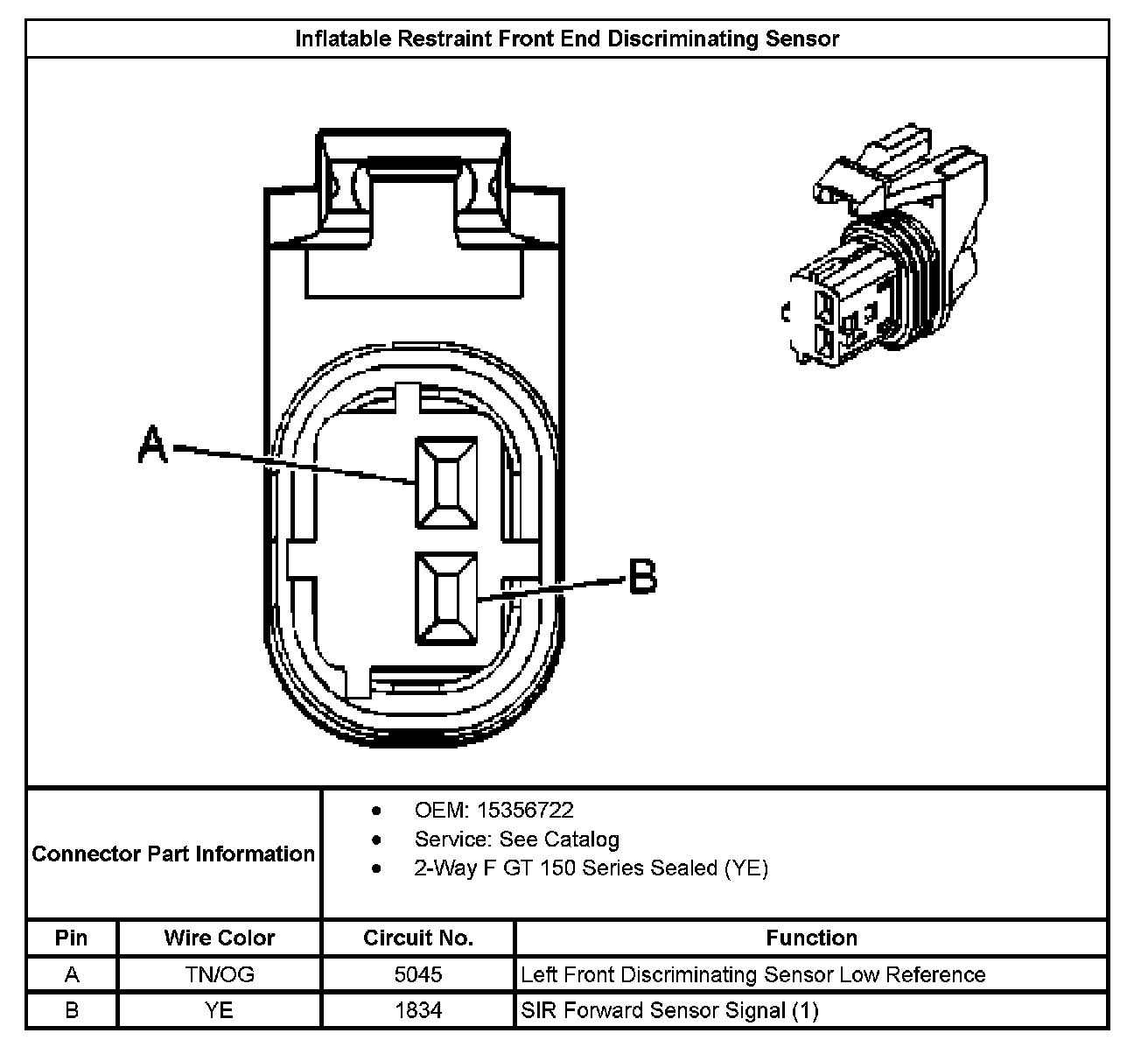

Inflatable Restraint Front End Discriminating Sensor:
