Electronic Throttle Control Module
Electronic Throttle Control Module

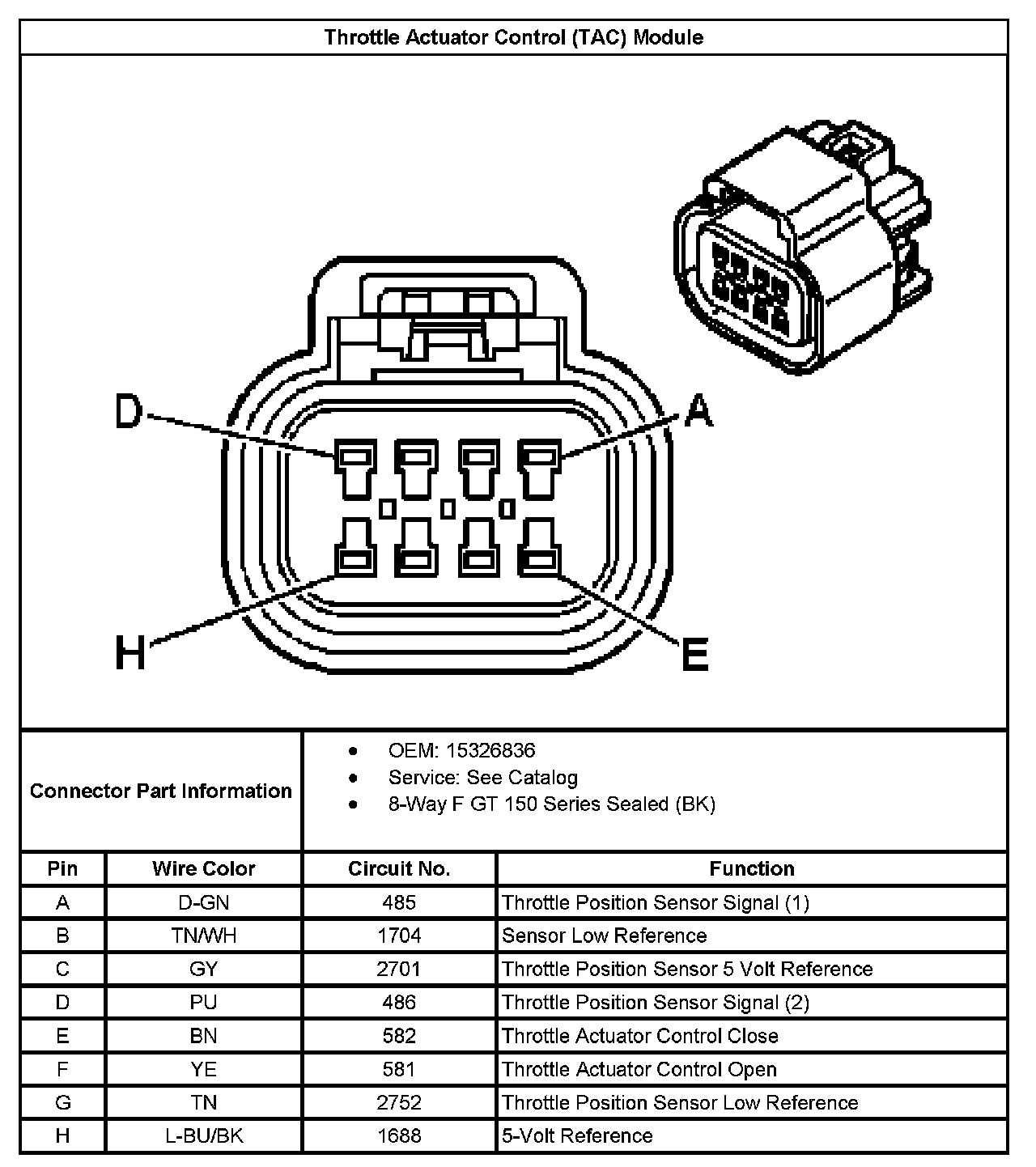

Throttle Actuator Control (TAC) Module:
