Home >> Chevrolet >> 2005 >> Cobalt L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Components

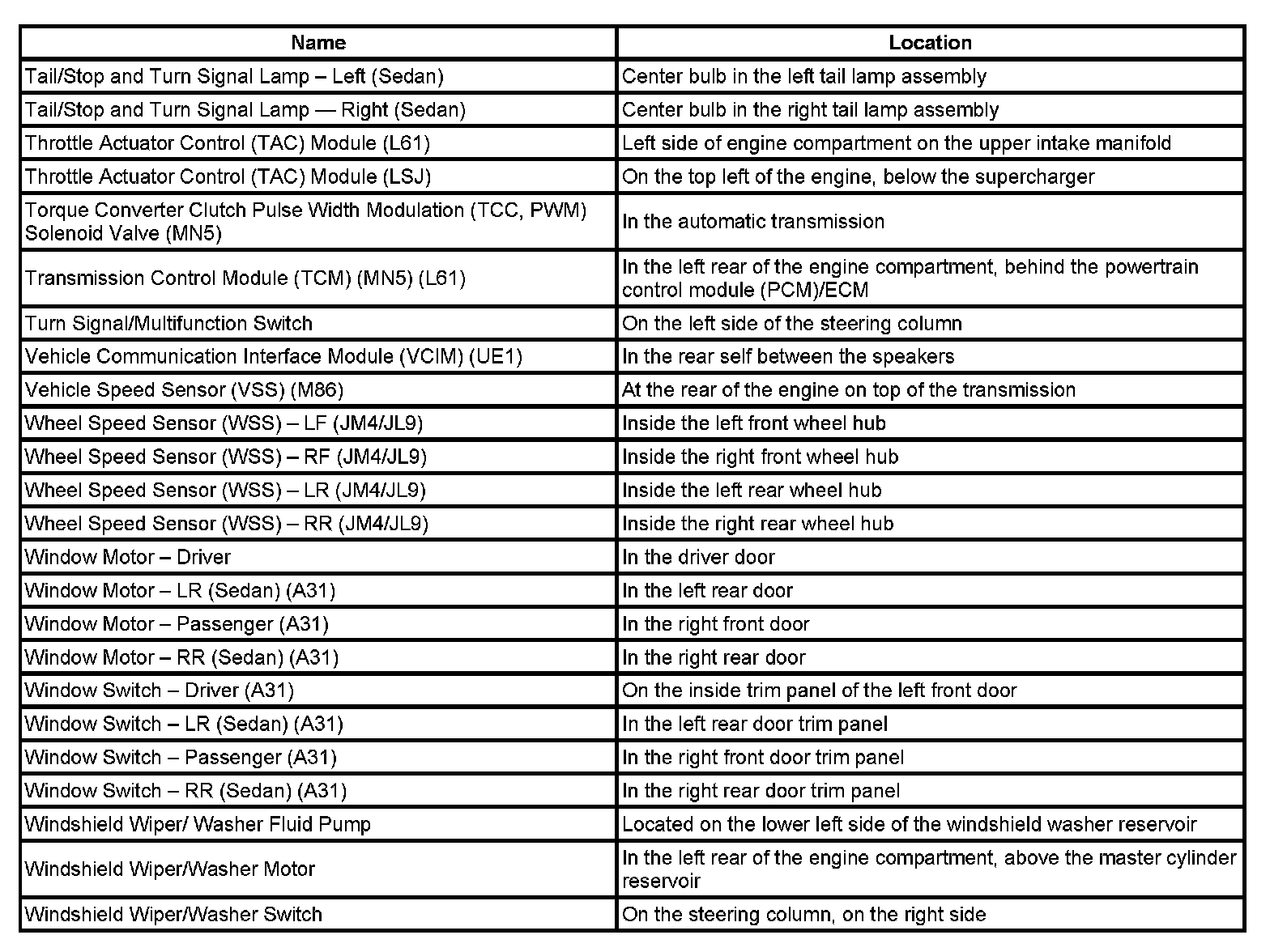

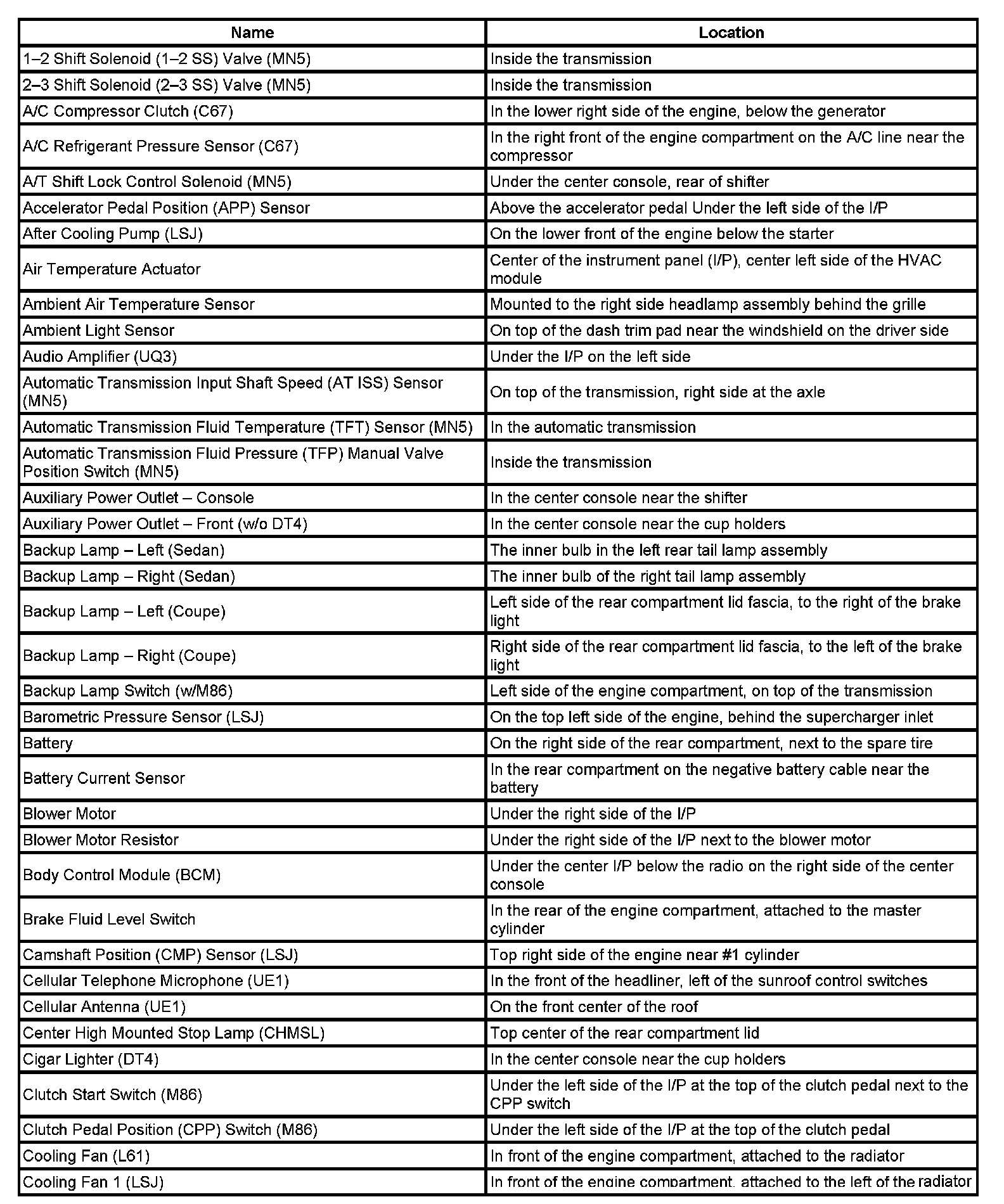

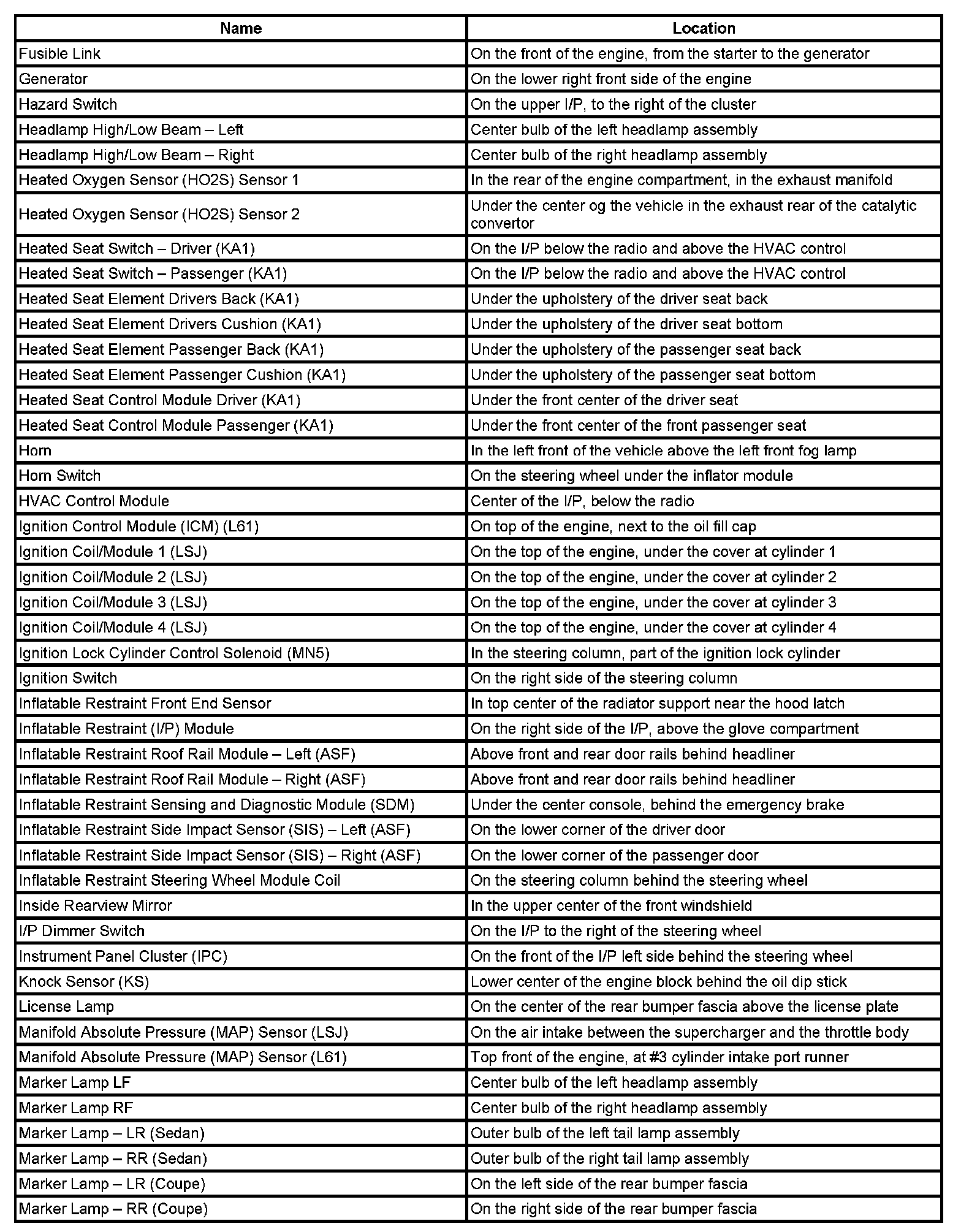

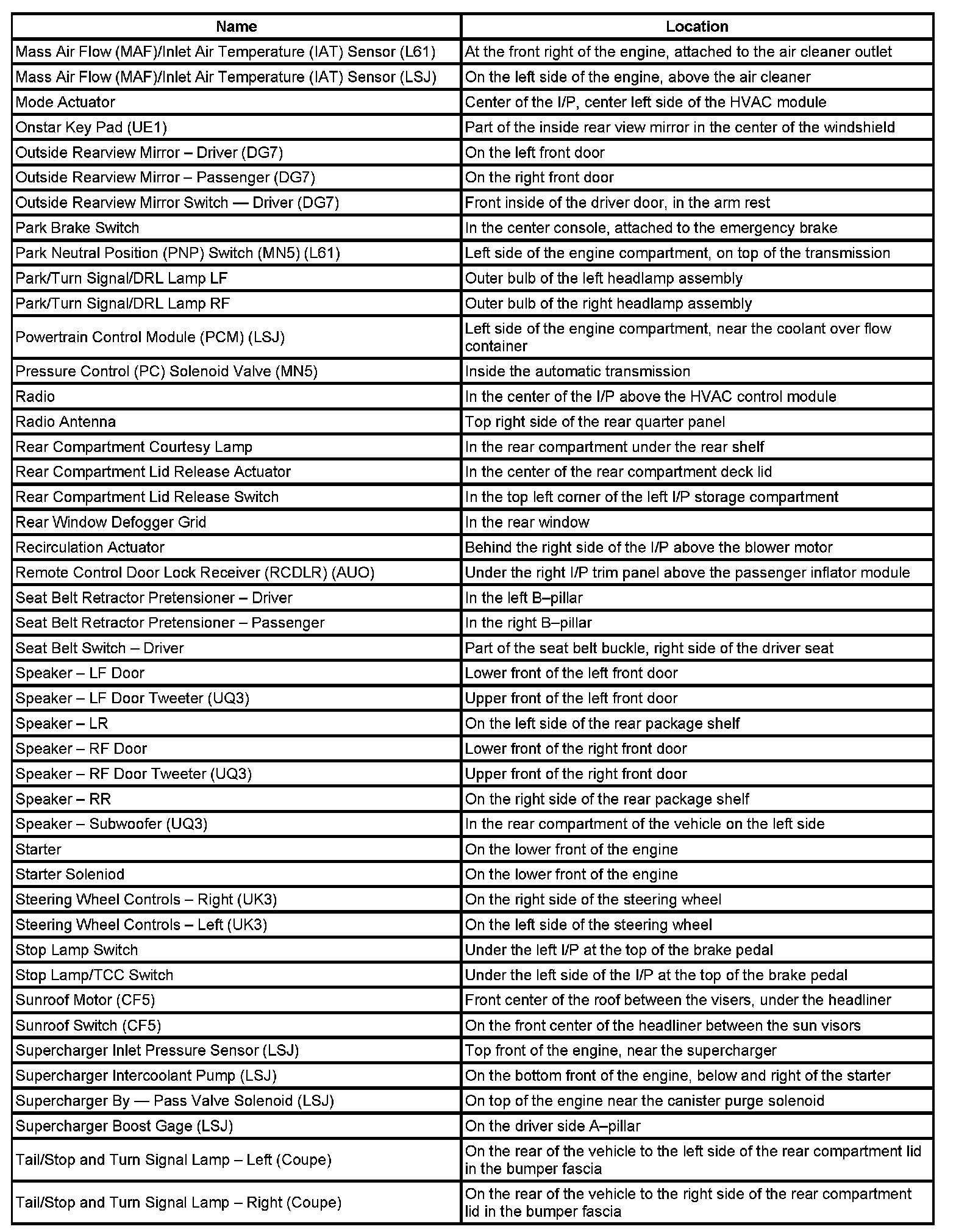

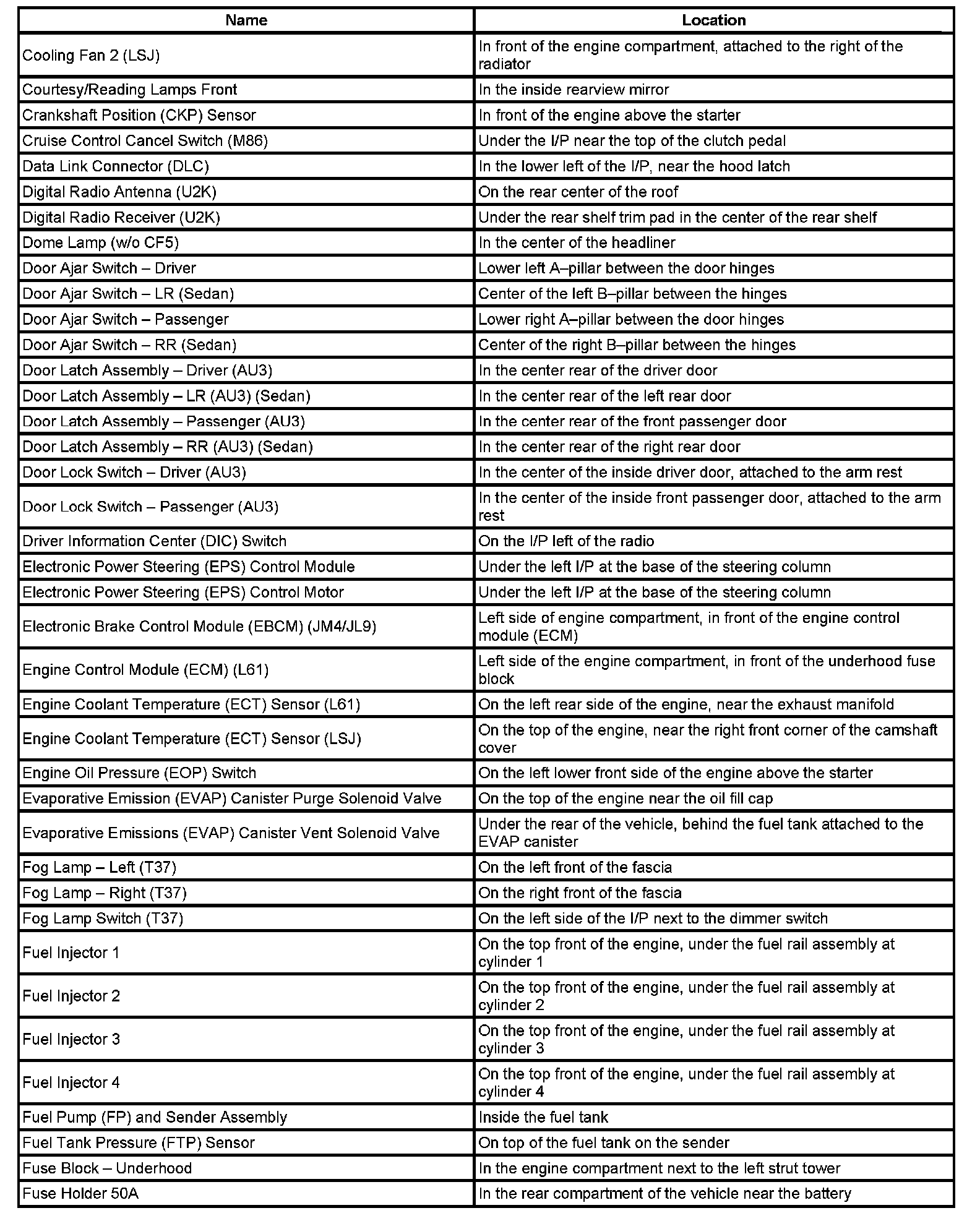

Components

1-2 Sh - Co:

Co - Fu:

Fu - Ma:

Ma - Ta:

Ta - Wi:
