Powertrain Control Module (PCM) C3
Powertrain Control Module (PCM) C3

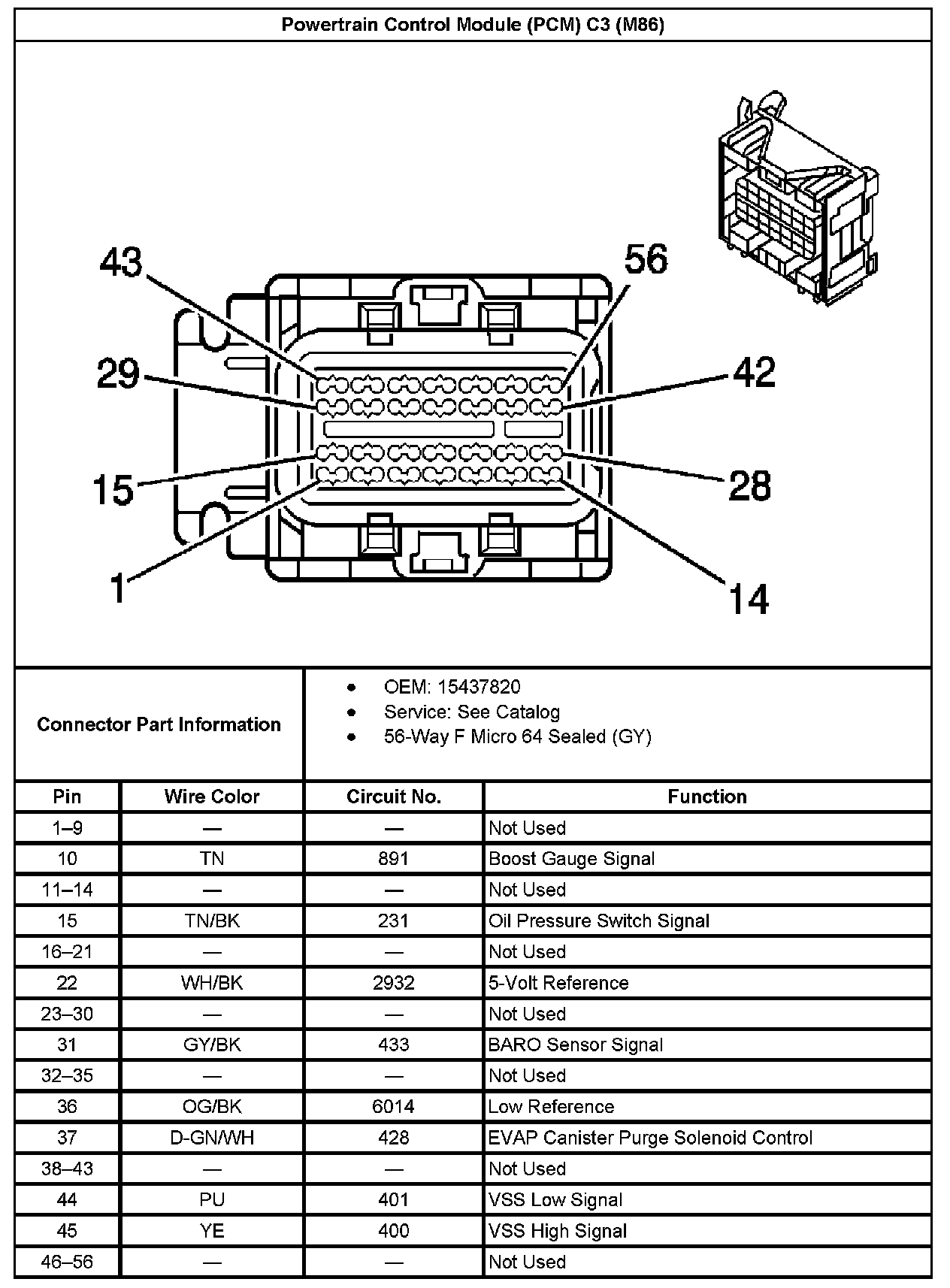

Powertrain Control Module (PCM) C3 (With RPO Code M86):
