Home >> Chevrolet >> 2005 >> Classic L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Interior Lighting Module

Interior Lighting Module

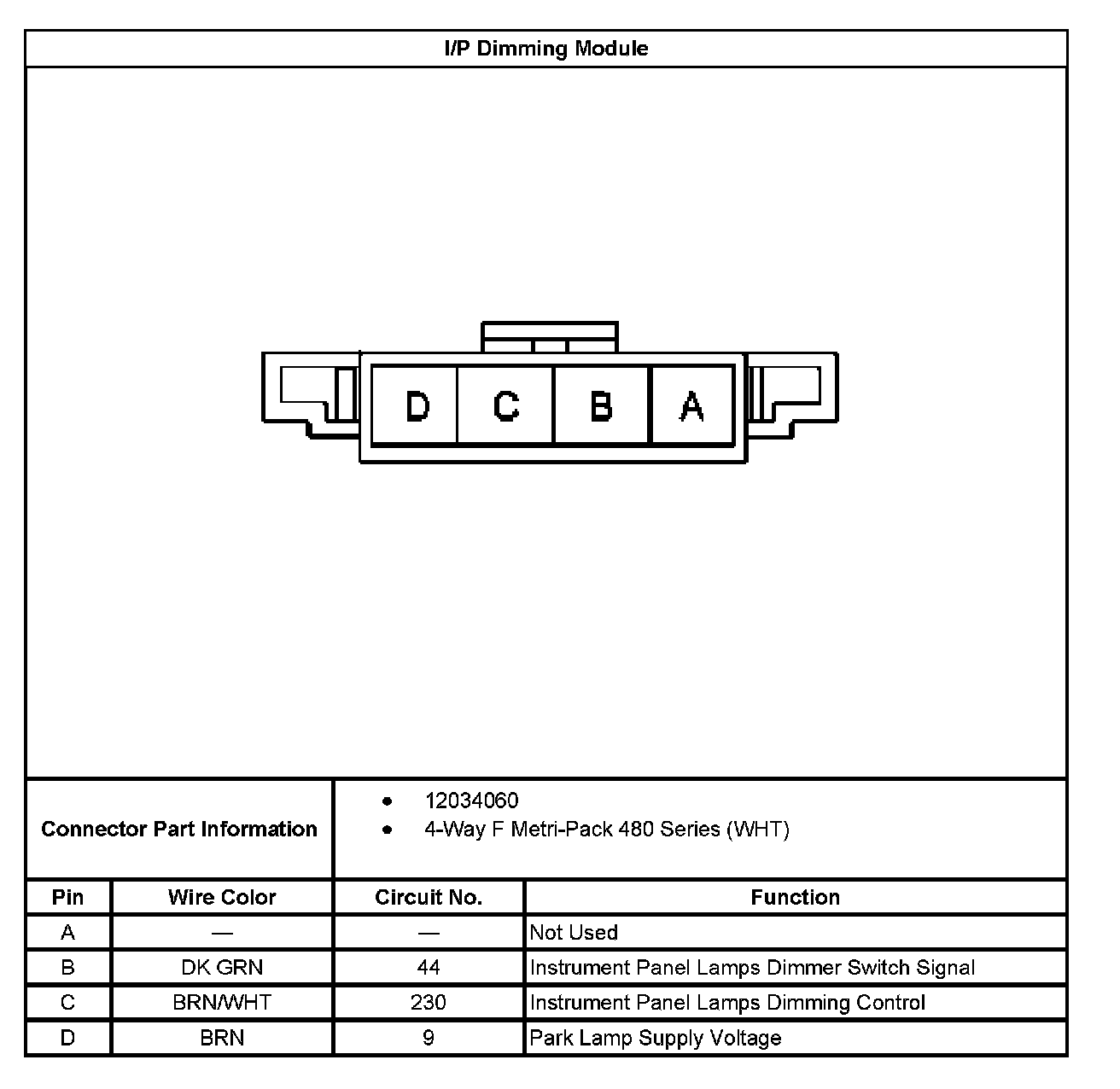

I/P Dimming Module:
