System Specifications
Engine Mechanical - 2.5L

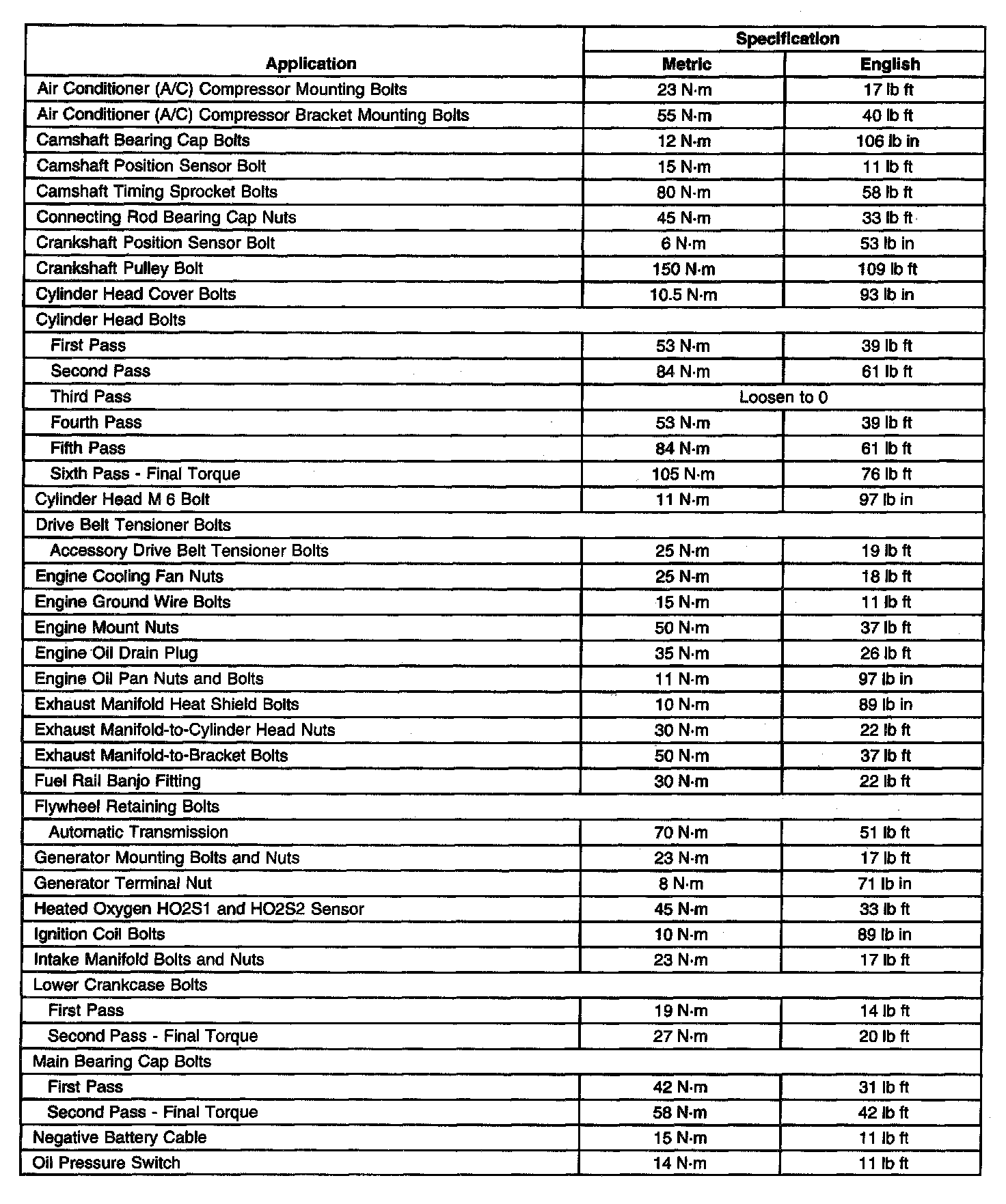

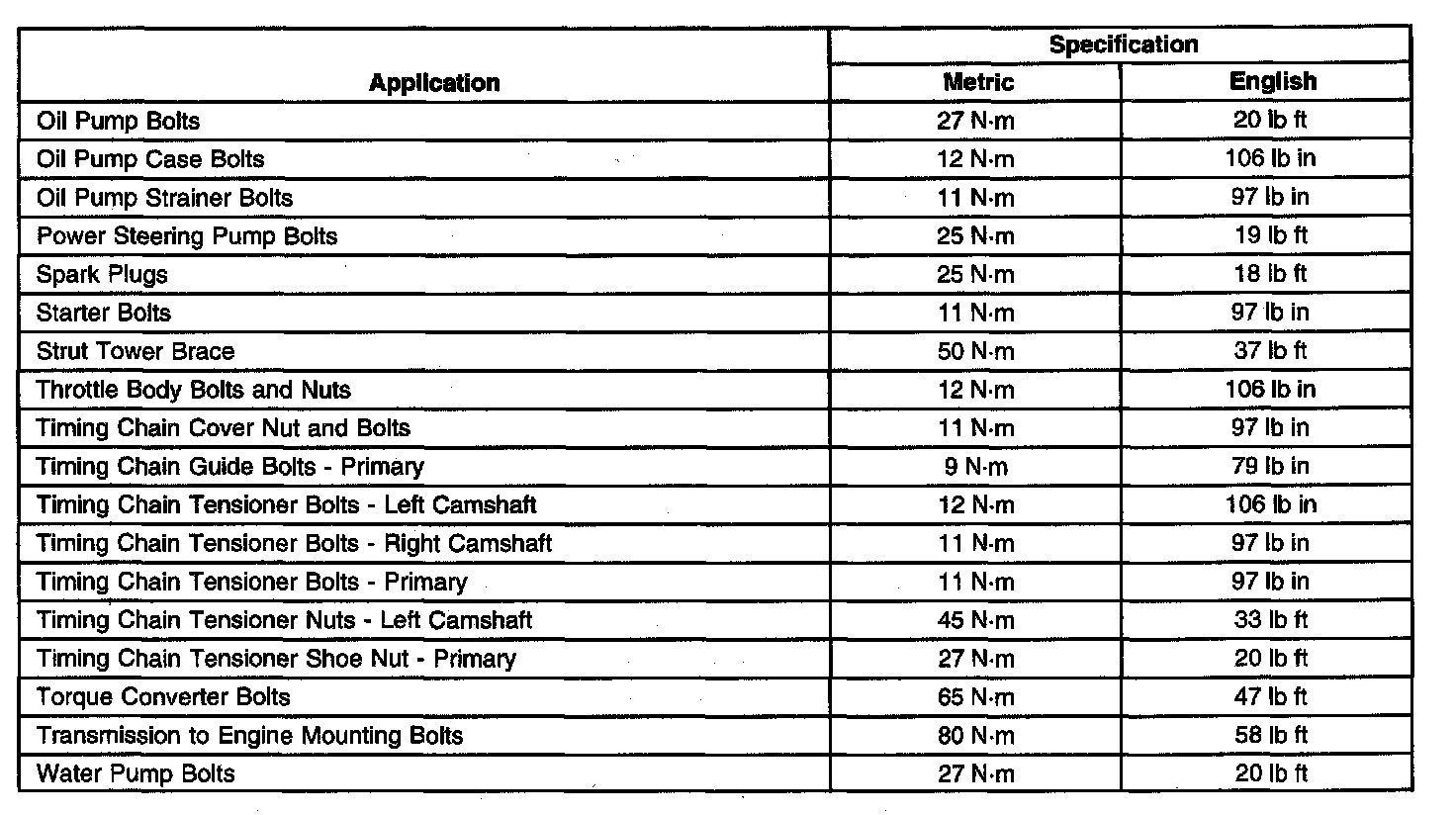

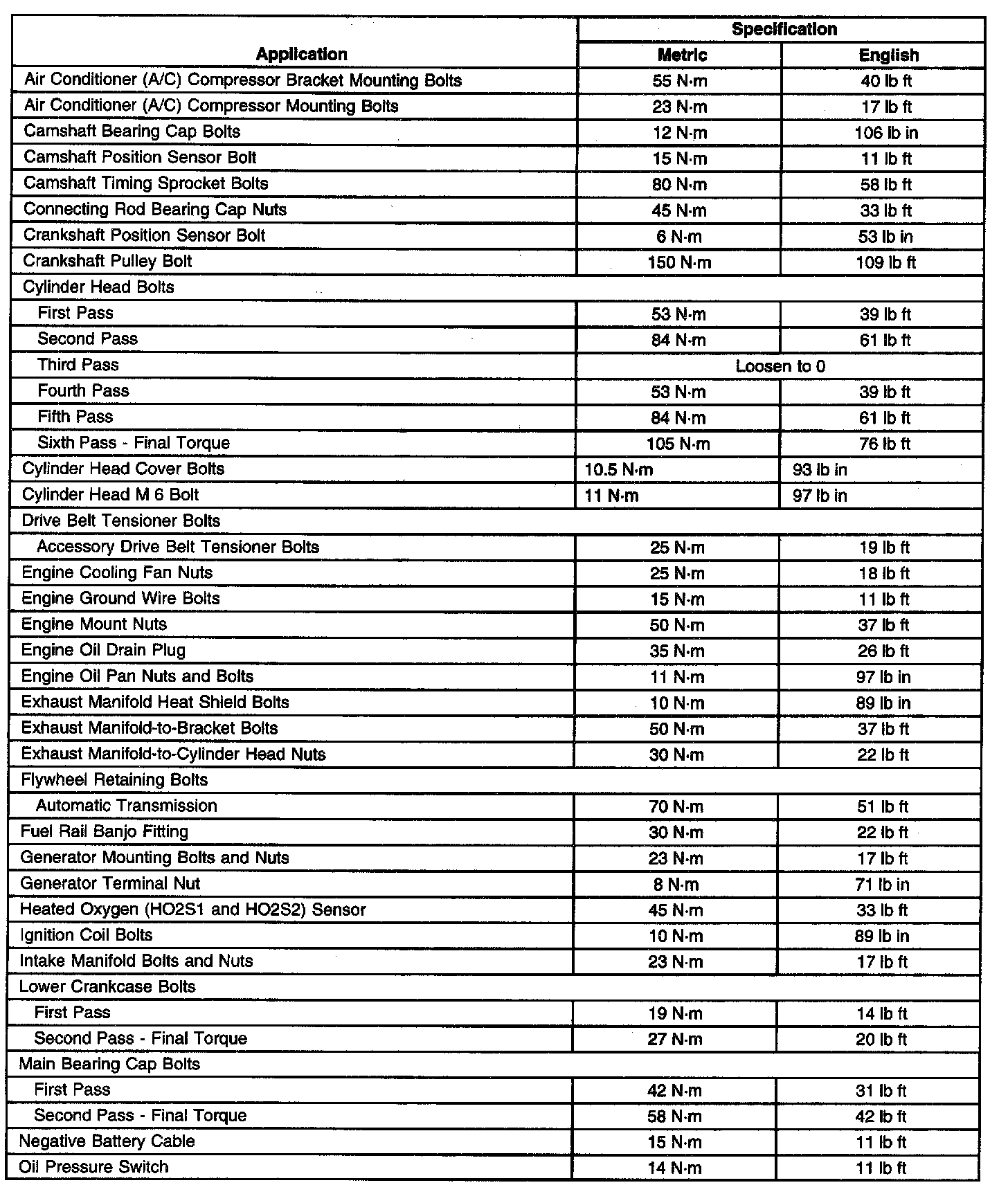

Fastener Tightening Specifications
Engine Mechanical - 2.5L (LE8) (Unit Repair)

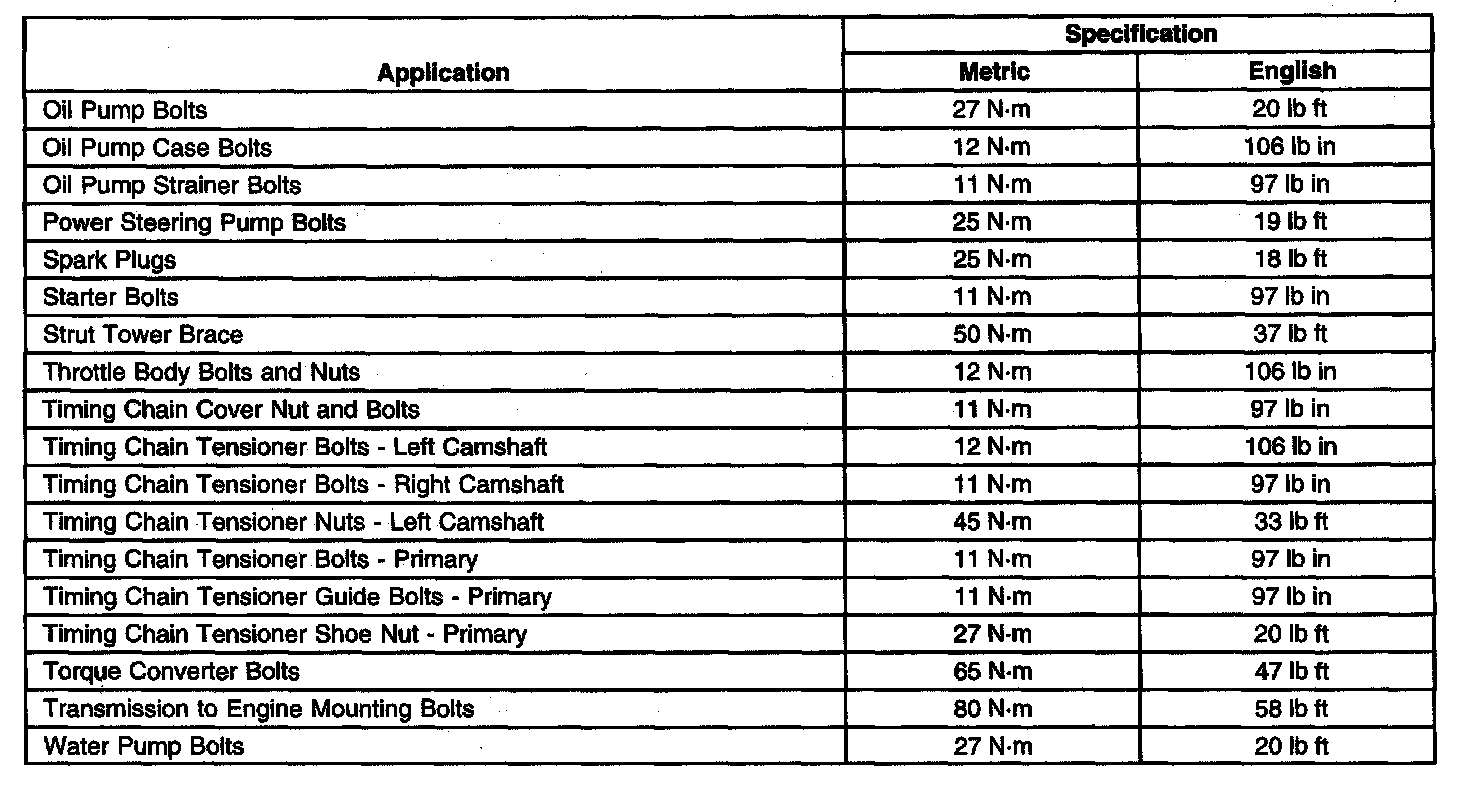

Fastener Tightening Specifications

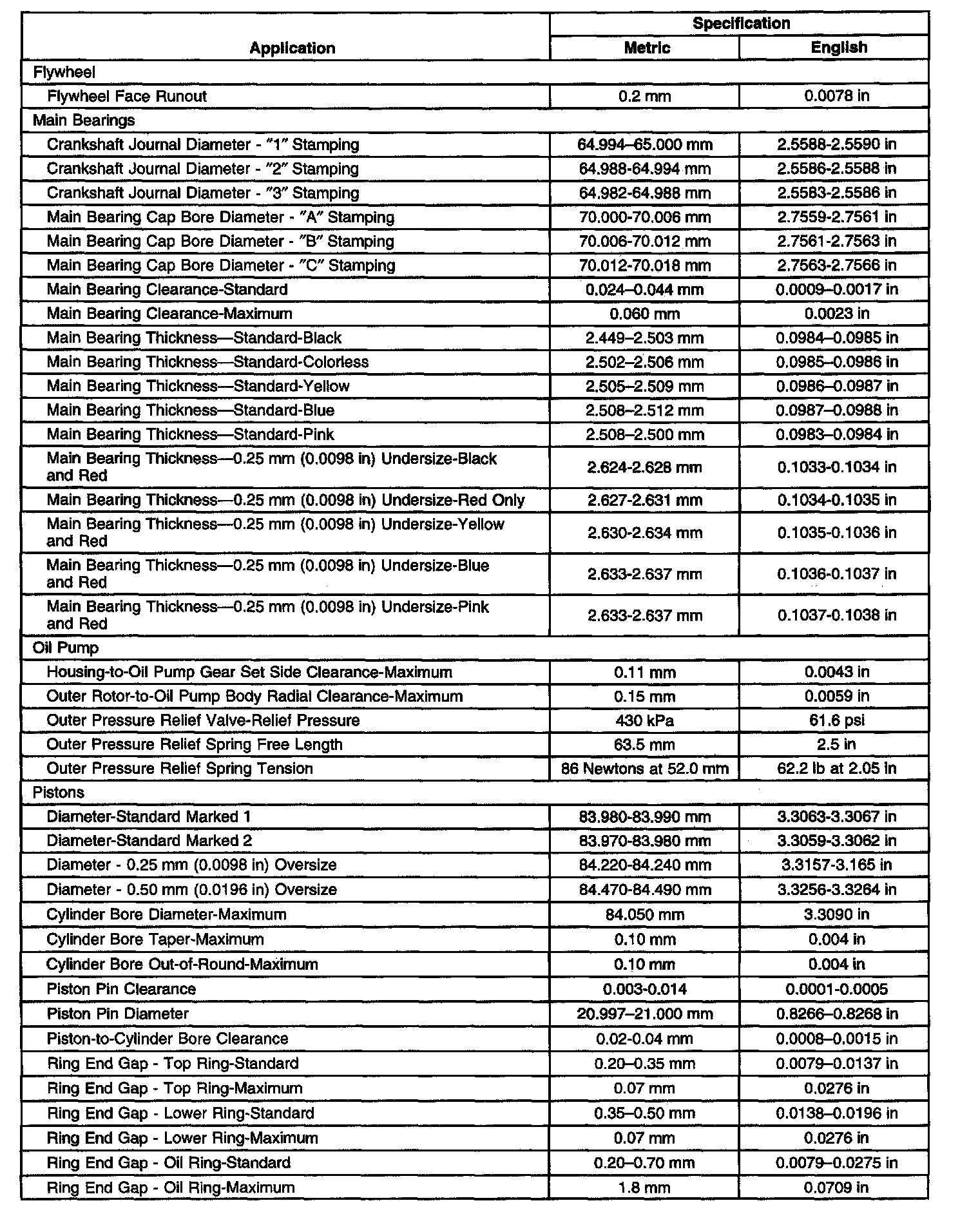

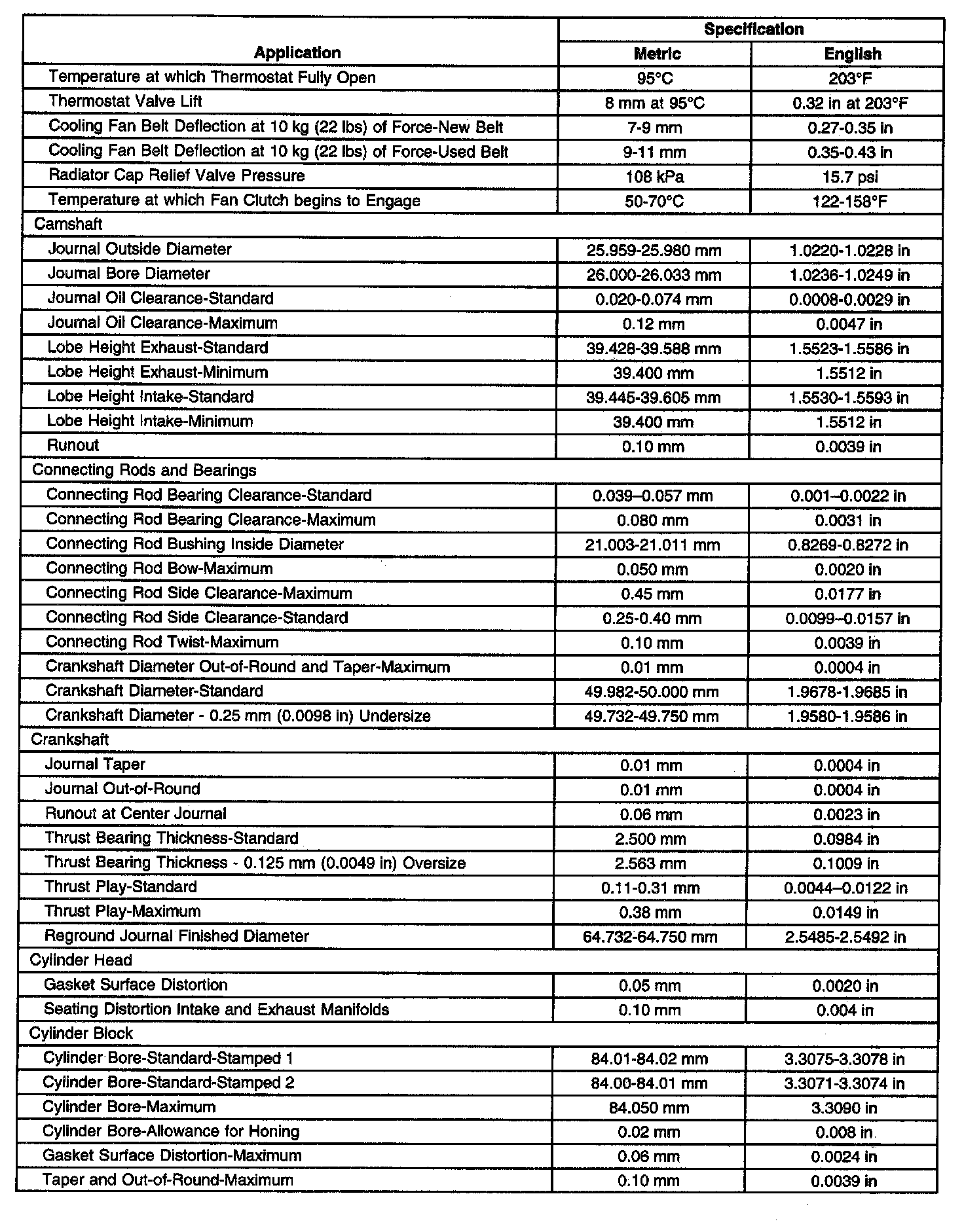

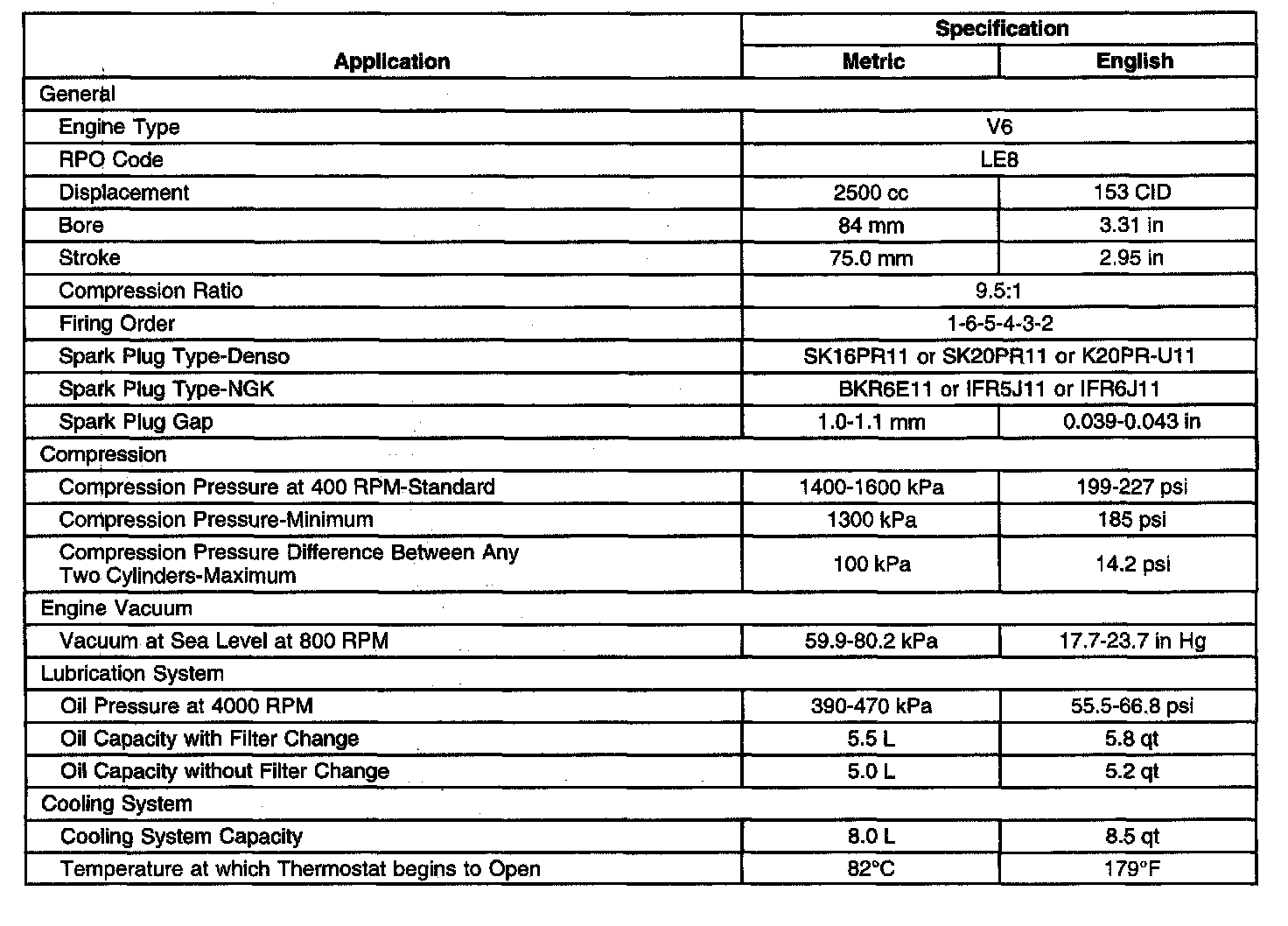

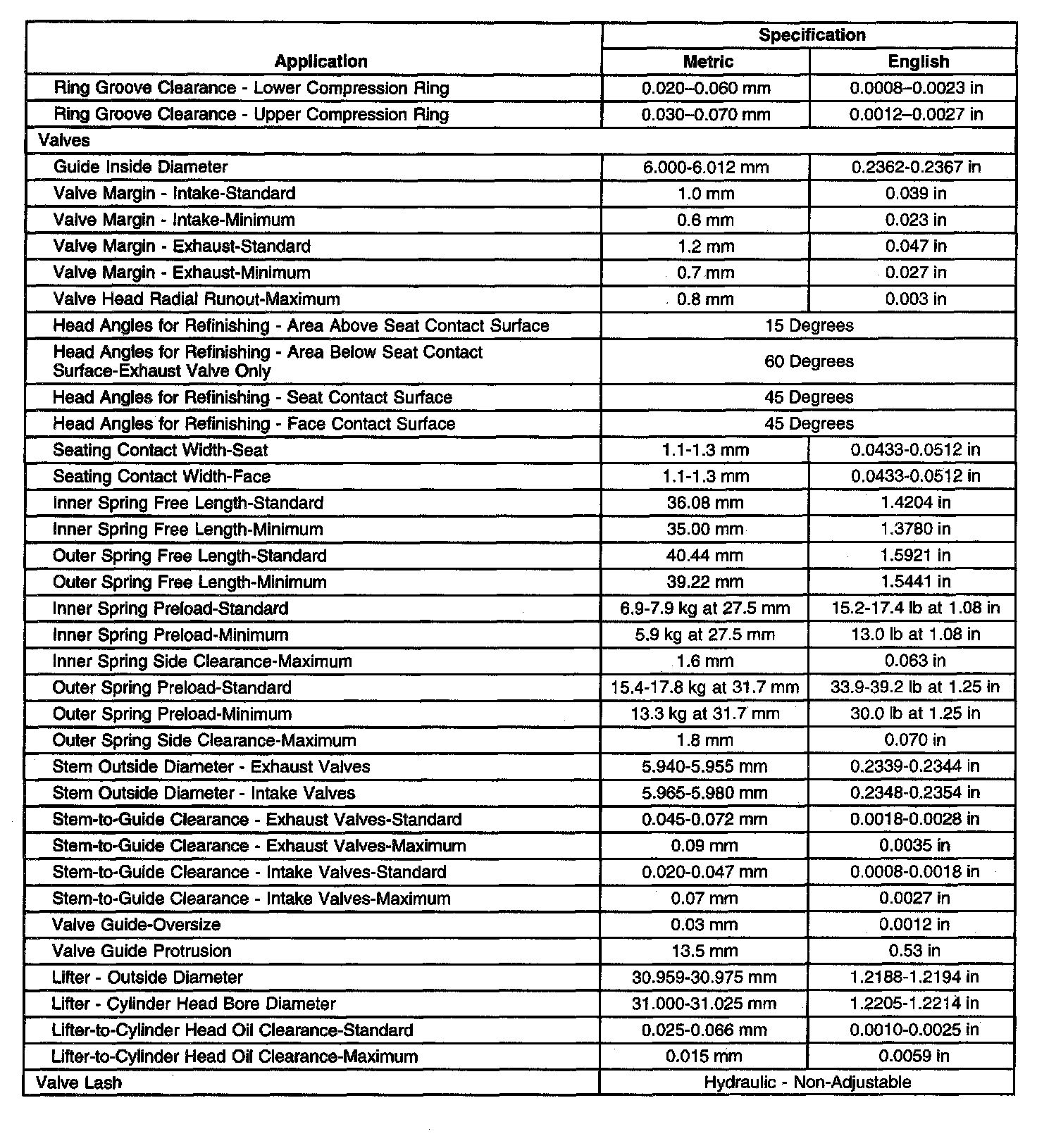

Engine Mechanical Specifications

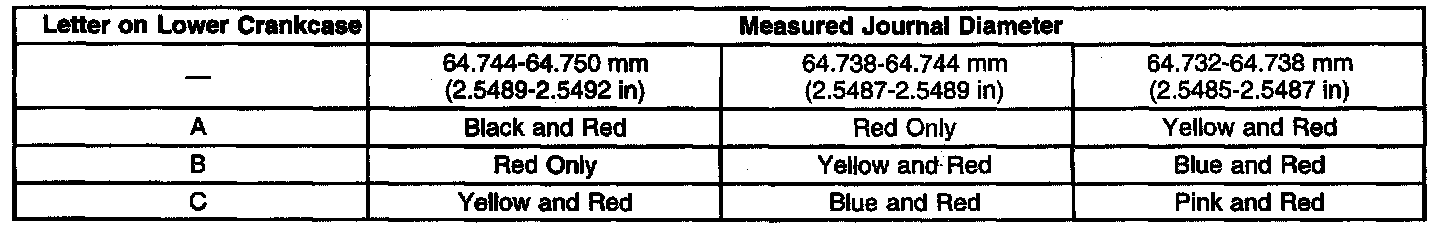

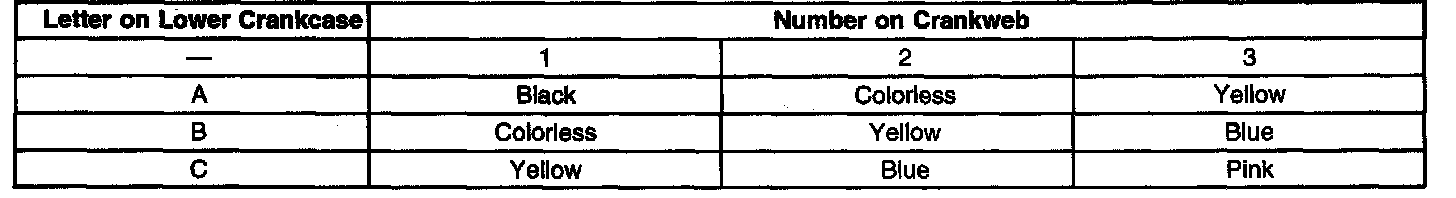

Standard Main Bearing Selection
Undersize Main Bearing Selection

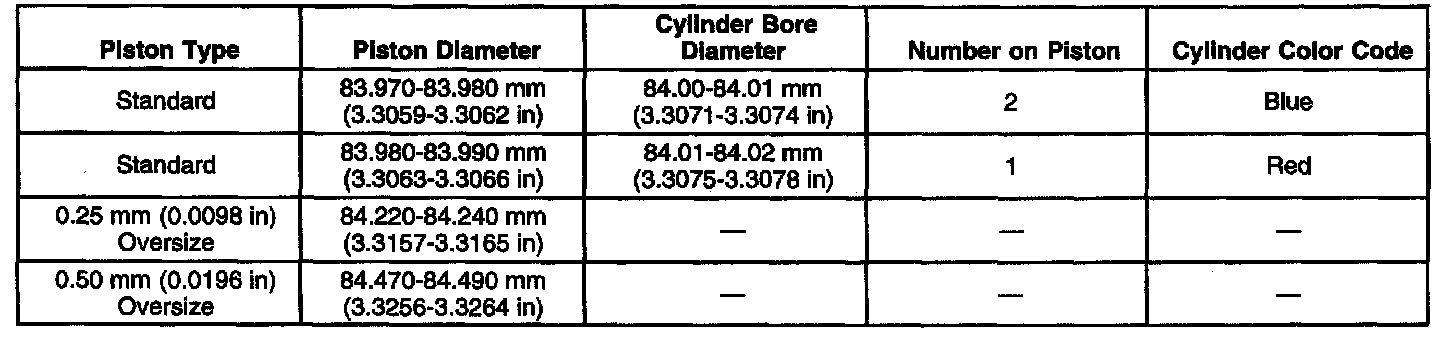

Piston Selection

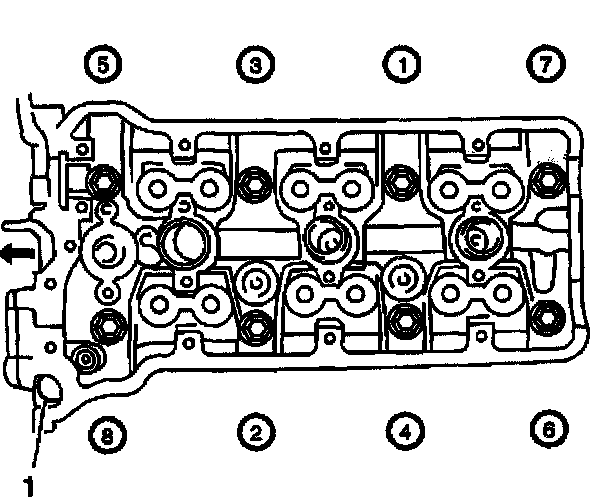

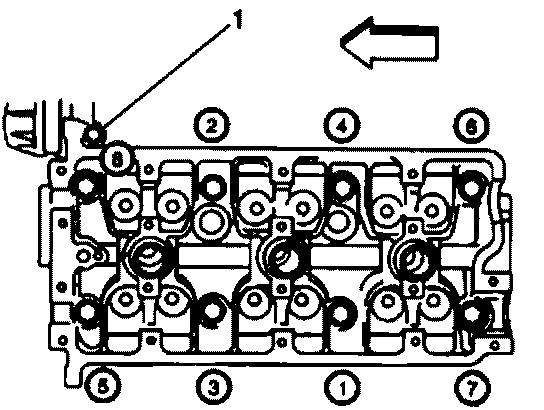

Cylinder Head Tightening Sequence - Left
Cylinder Head Tightening Sequence - Right

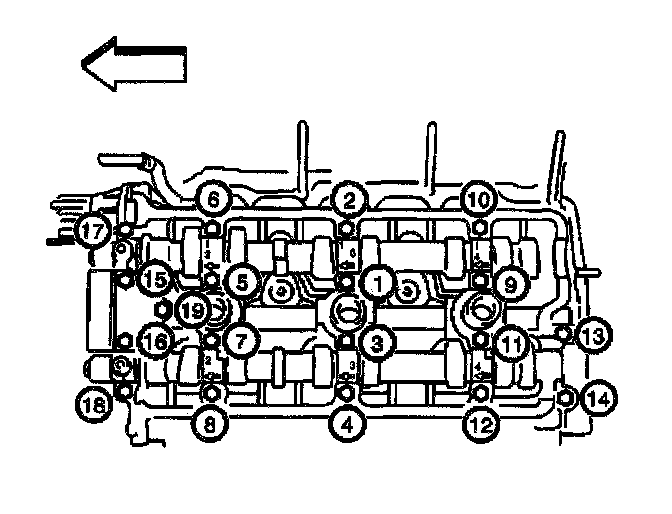

Camshaft Cap Tightening Sequence - Left
